Wire color codes and electrical connections for Smart fortwo circuits N11-3 and N11-4, including fuse assignments.

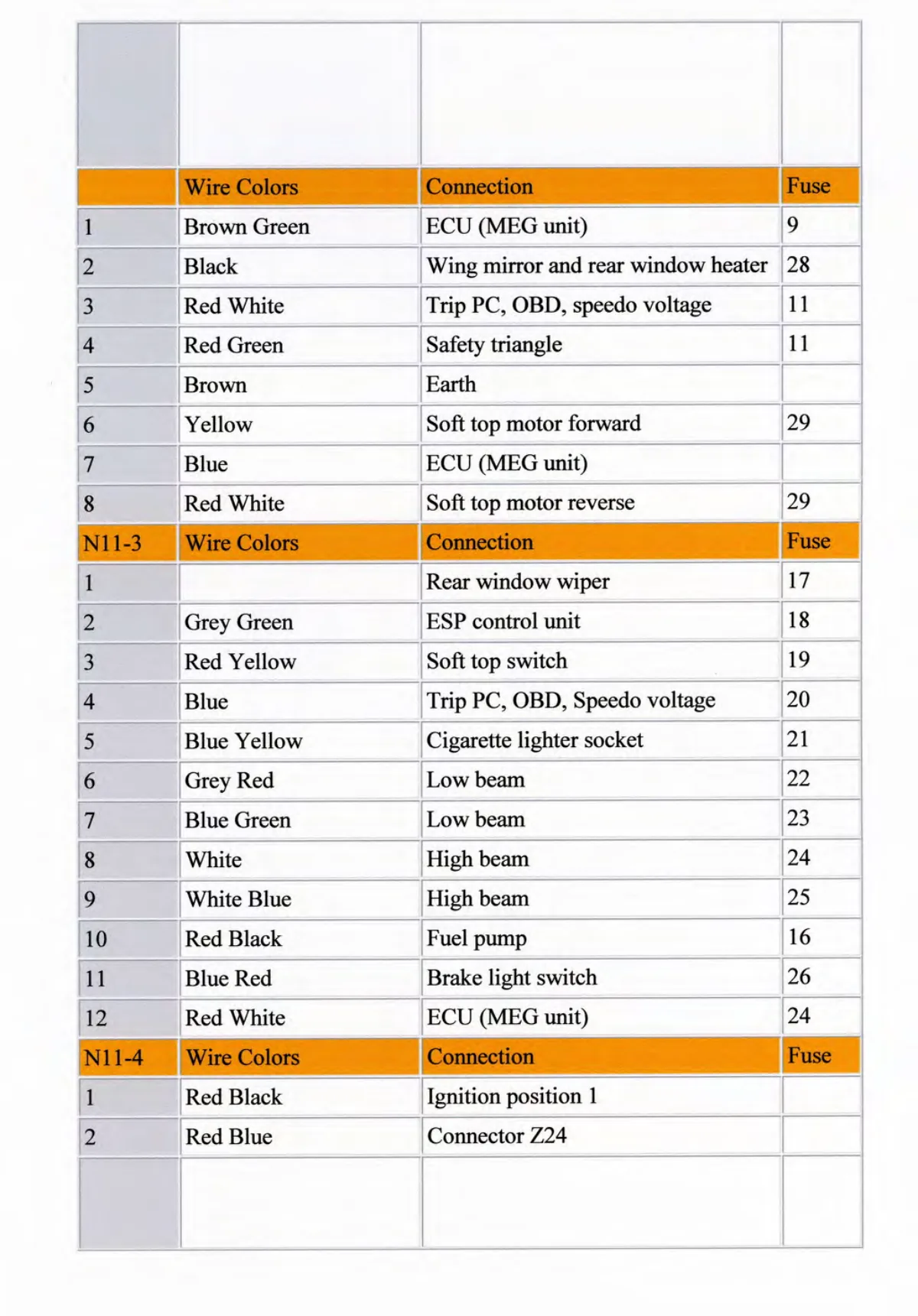

Wiring diagram table showing wire colors, circuit connections, and fuse numbers for Smart fortwo electrical systems.
