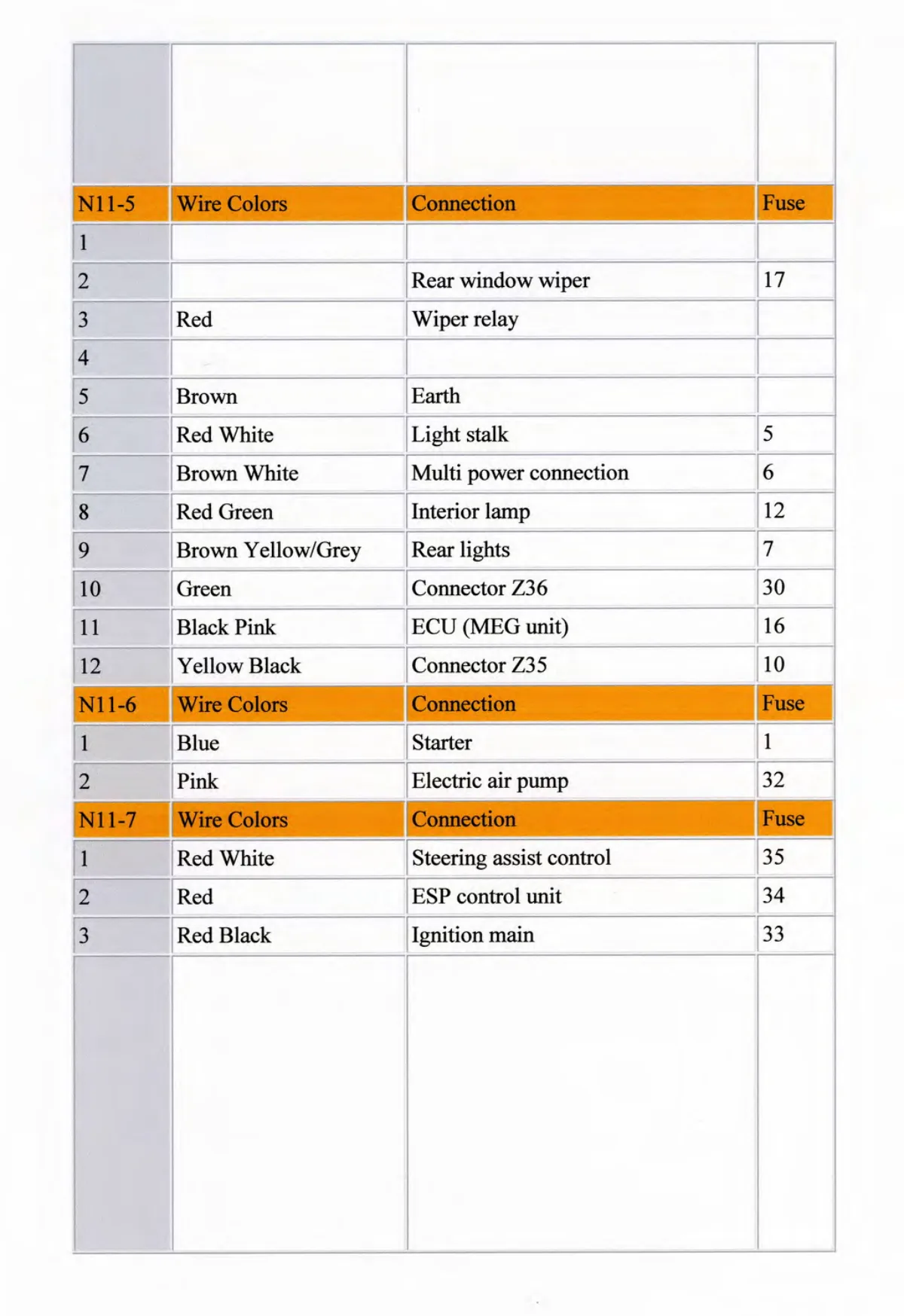

Wiring harness N11-5, N11-6, N11-7 connector specifications with wire colors, connections, and fuse assignments.

Three wiring connector tables showing wire colors, connection points, and fuse numbers for Smart vehicle electrical circuits.
