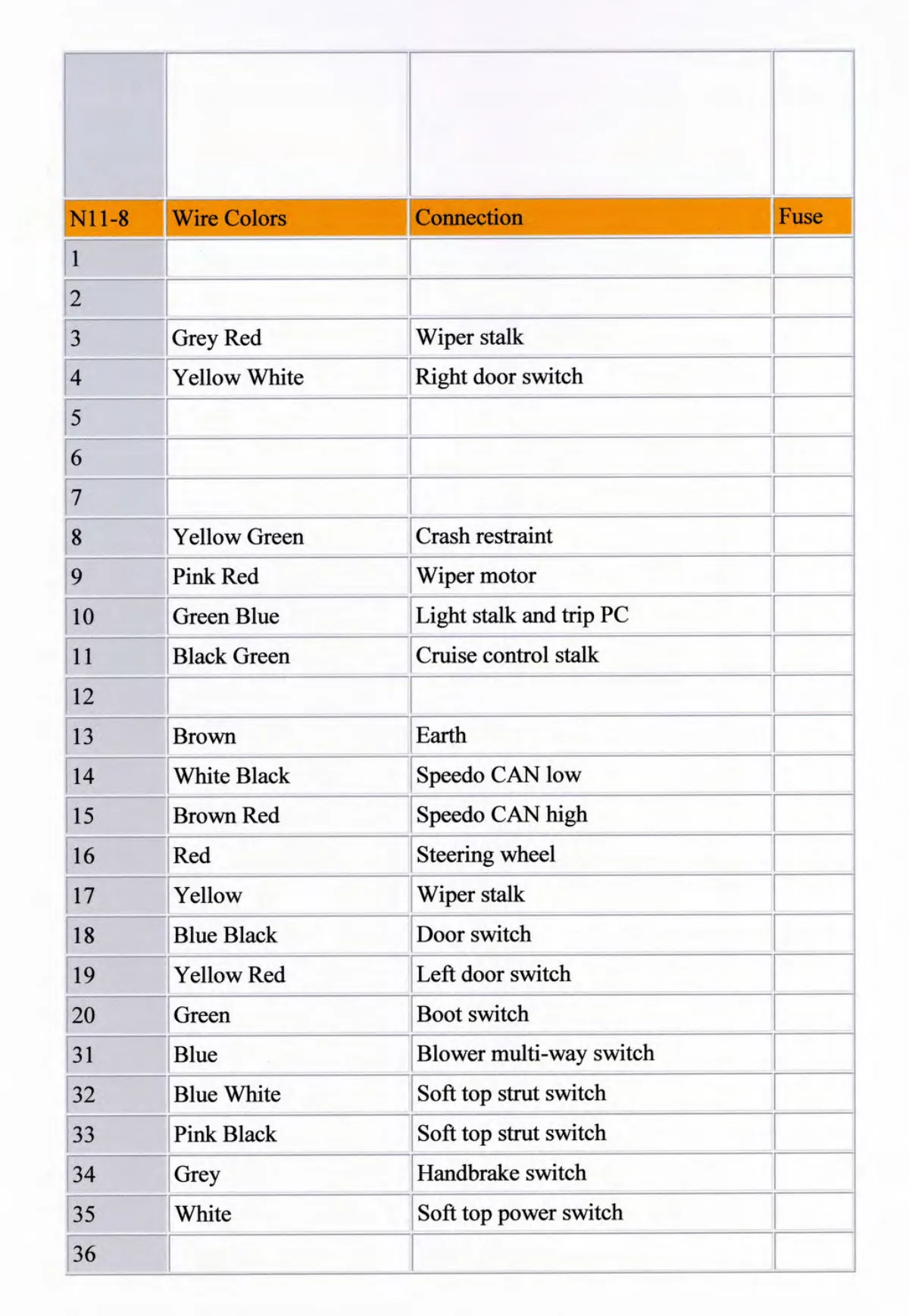

Wiring harness N11-8 color codes and connections for smart fortwo 450/451 electrical circuits.

Table showing wire colors, connection points, and fuse assignments for smart fortwo wiring harness N11-8.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
