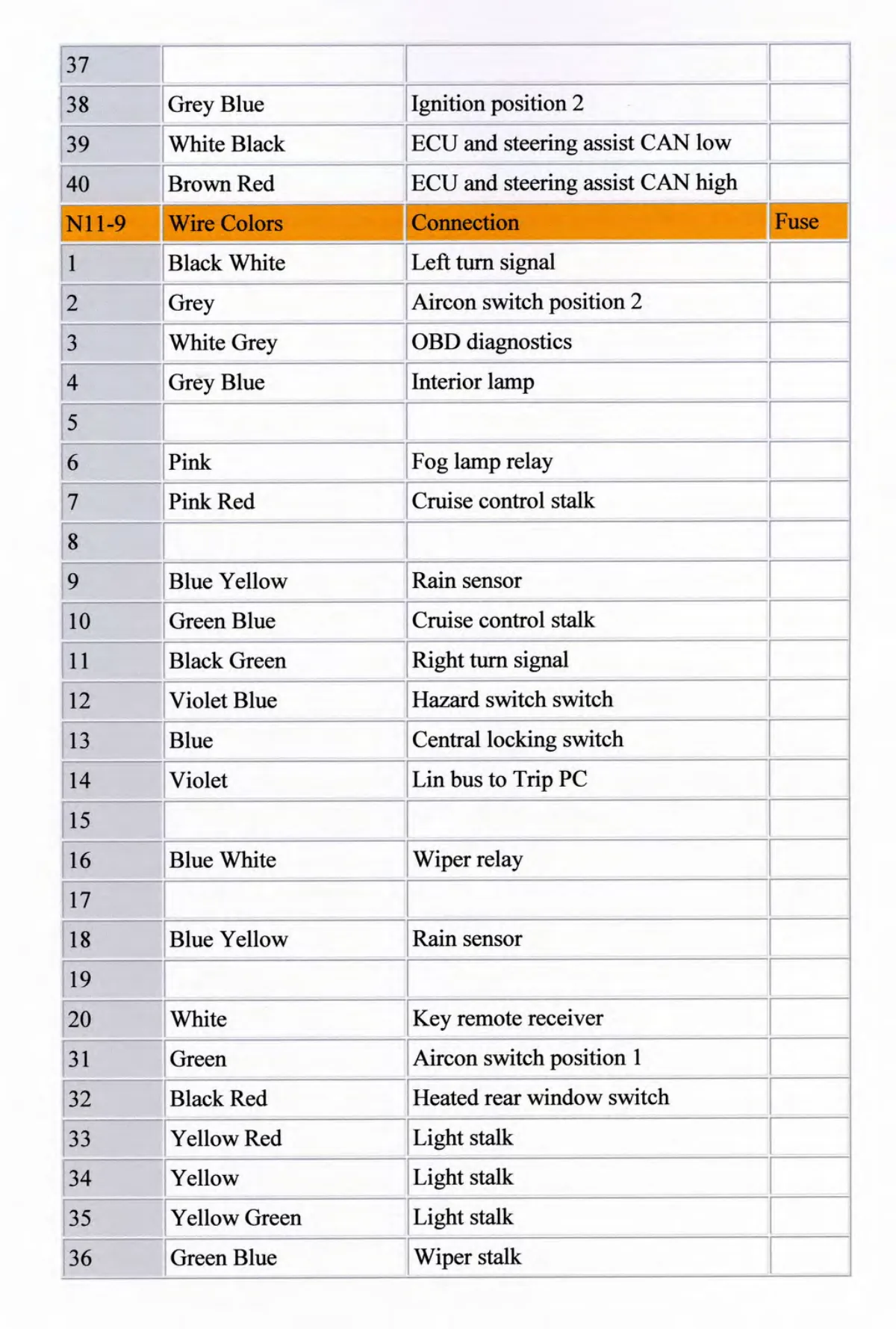

Wiring diagram connector N11-9 pin assignments for turn signals, lighting, sensors, and control modules on smart fortwo.

Table showing wire colors and connections for fuse box connector N11-9, rows 1-36.
