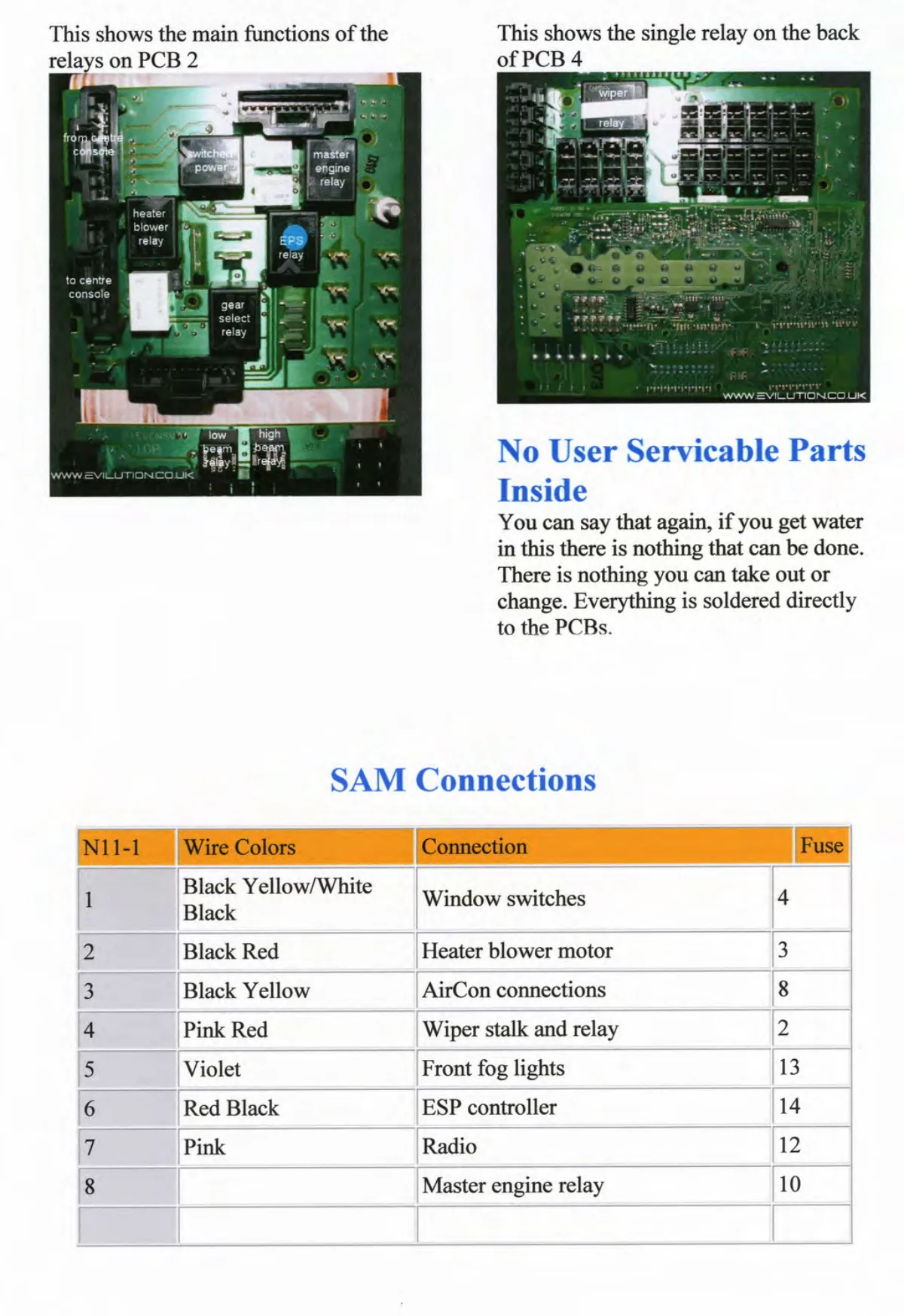

PCB relay functions, single relay on PCB 4, and SAM connections table with wire colors and fuses.

Circuit board photos showing relays and connection table listing window switches, blower motor, AirCon, wiper, fog lights, ESP, radio, and engine relay connections.
