SAM module disassembly procedure showing plastic clips, fuse connections, PCB sections, relays, and microprocessor components.

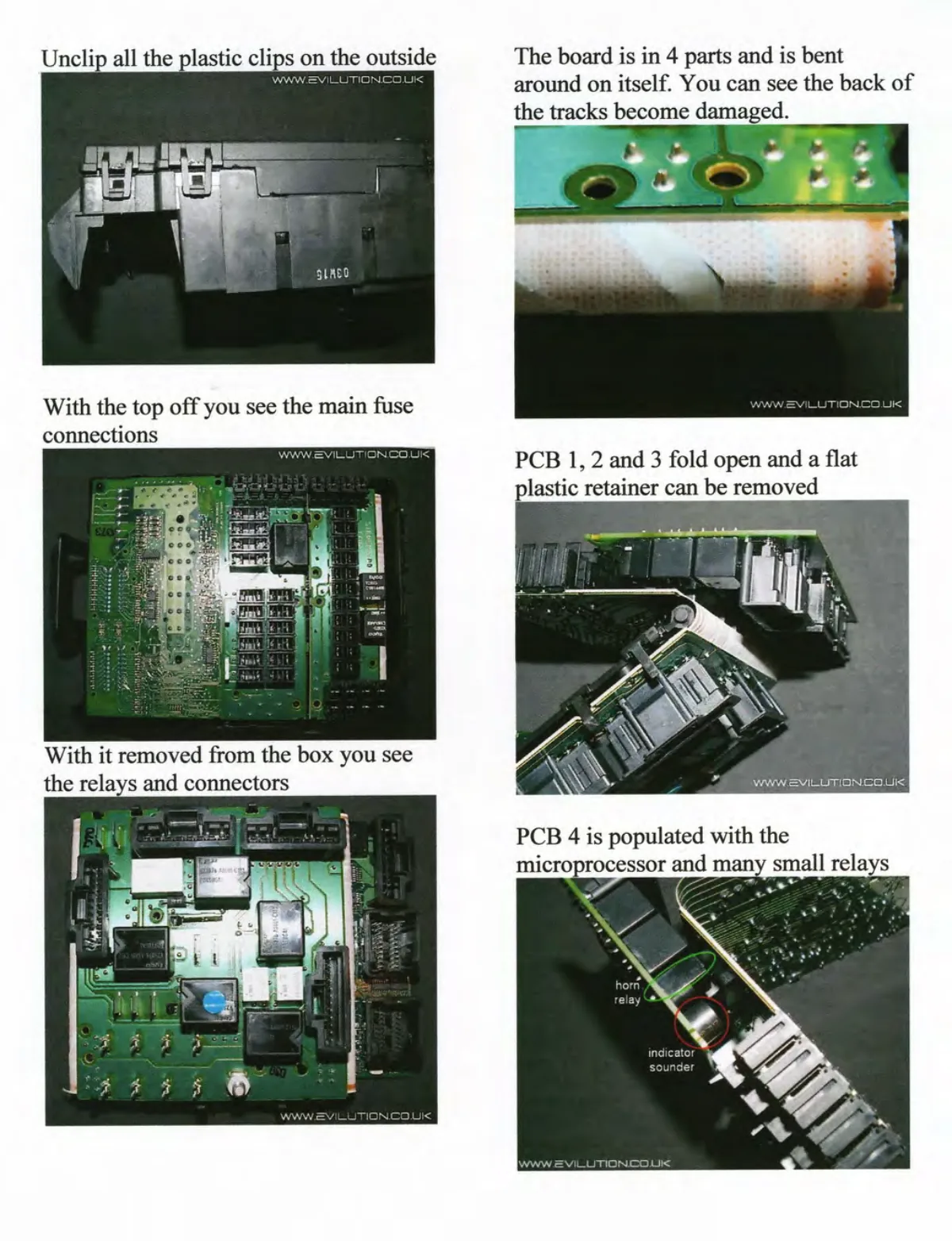

Six photographs depicting smart module disassembly: clips, fuse board, PCBs 1-4, relays, and microprocessor with horn relay and indicator sounder labeled.
