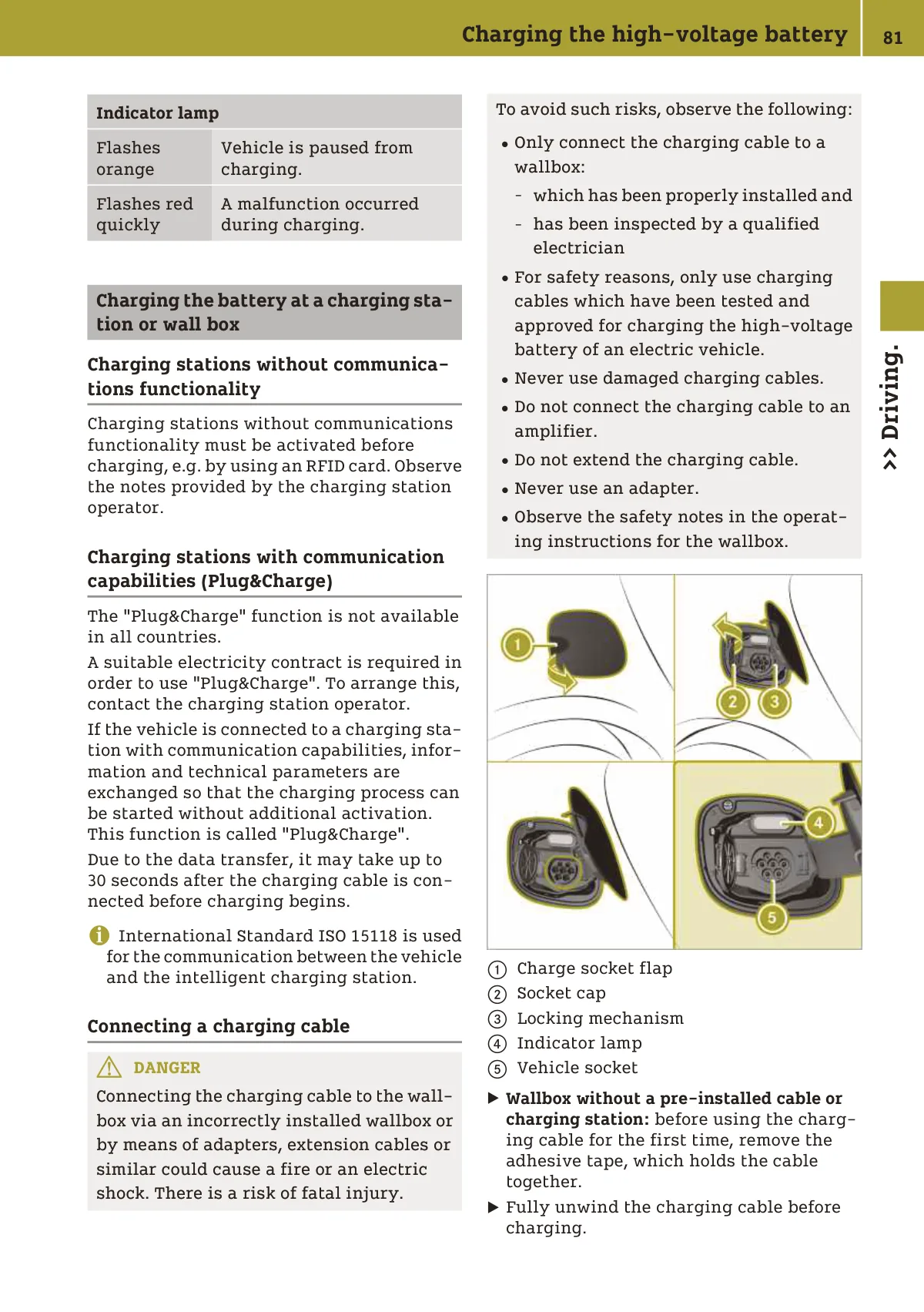

High-voltage battery charging cable connections, indicator lamp meanings, and wallbox safety procedures for Smart Forfour 453.

Charging cable connectors and safety instructions for EV battery charging with numbered callouts.
