EV high-voltage battery charging socket components and indicator lamp status meanings for smart forfour 453.

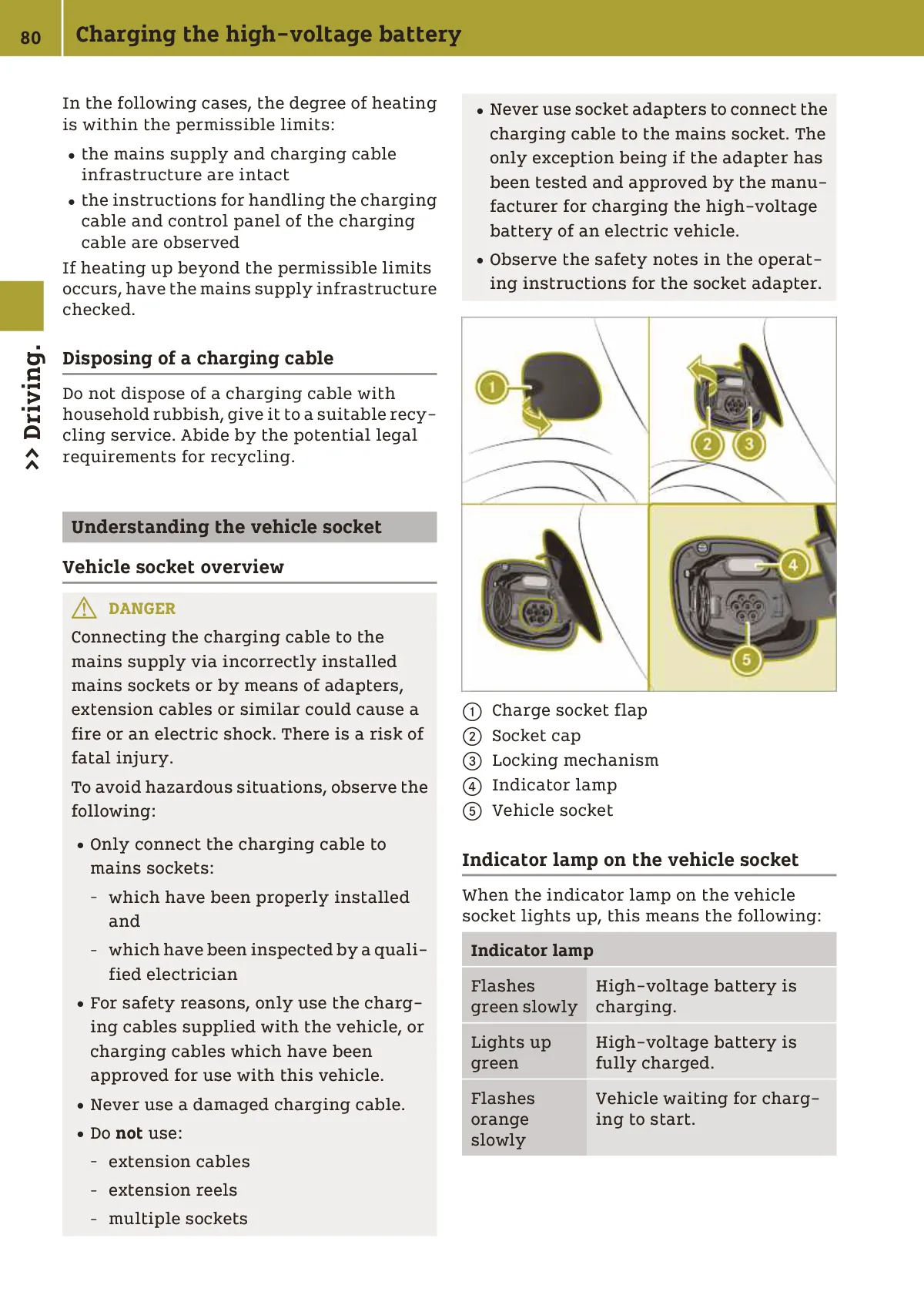

Vehicle charging socket overview with numbered parts and indicator lamp behavior guide.
