High-voltage battery charging cable controls and indicator lamp functions for version one and two systems.

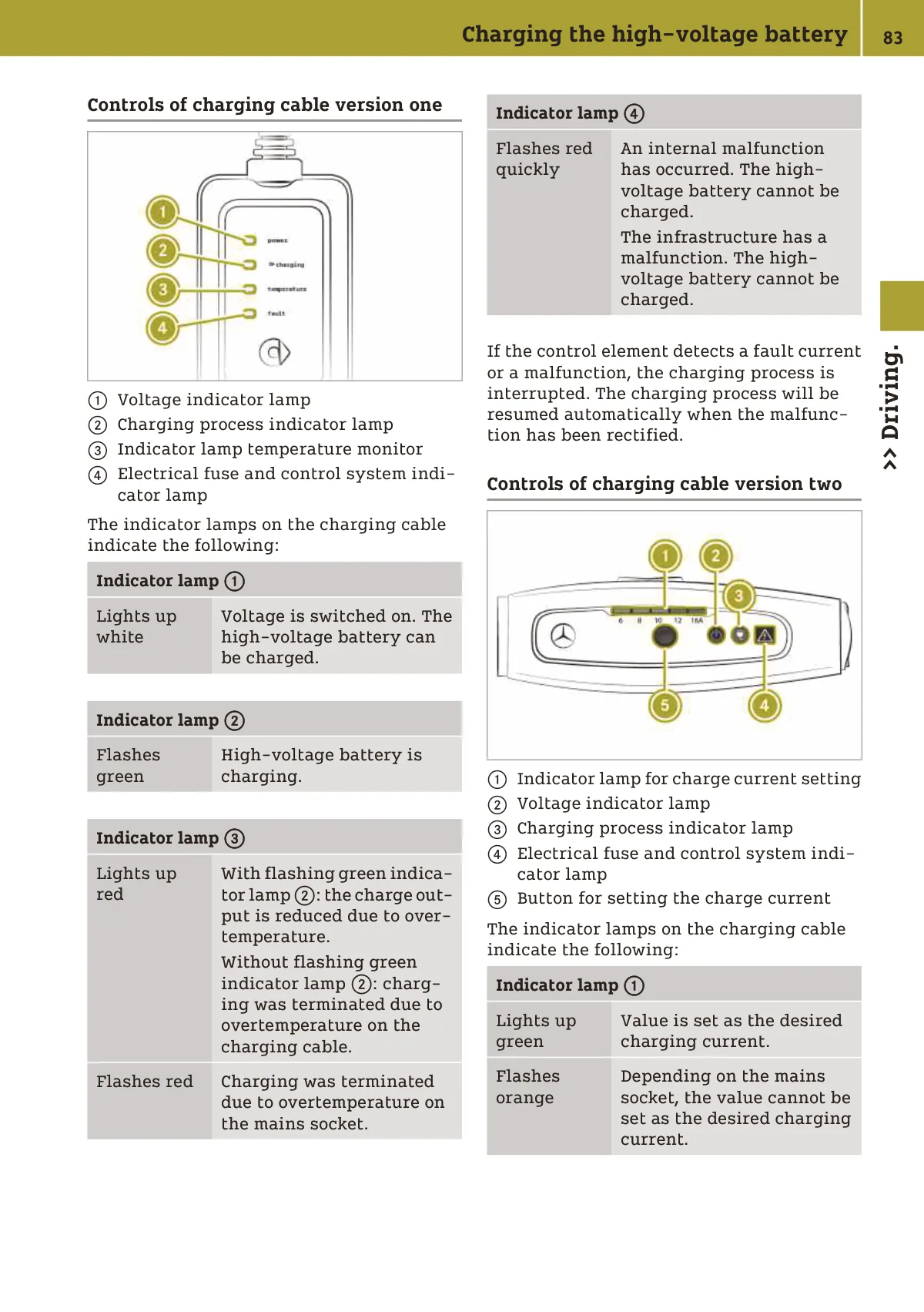

Charging cable control panel diagrams with numbered indicator lamps and their meanings.
