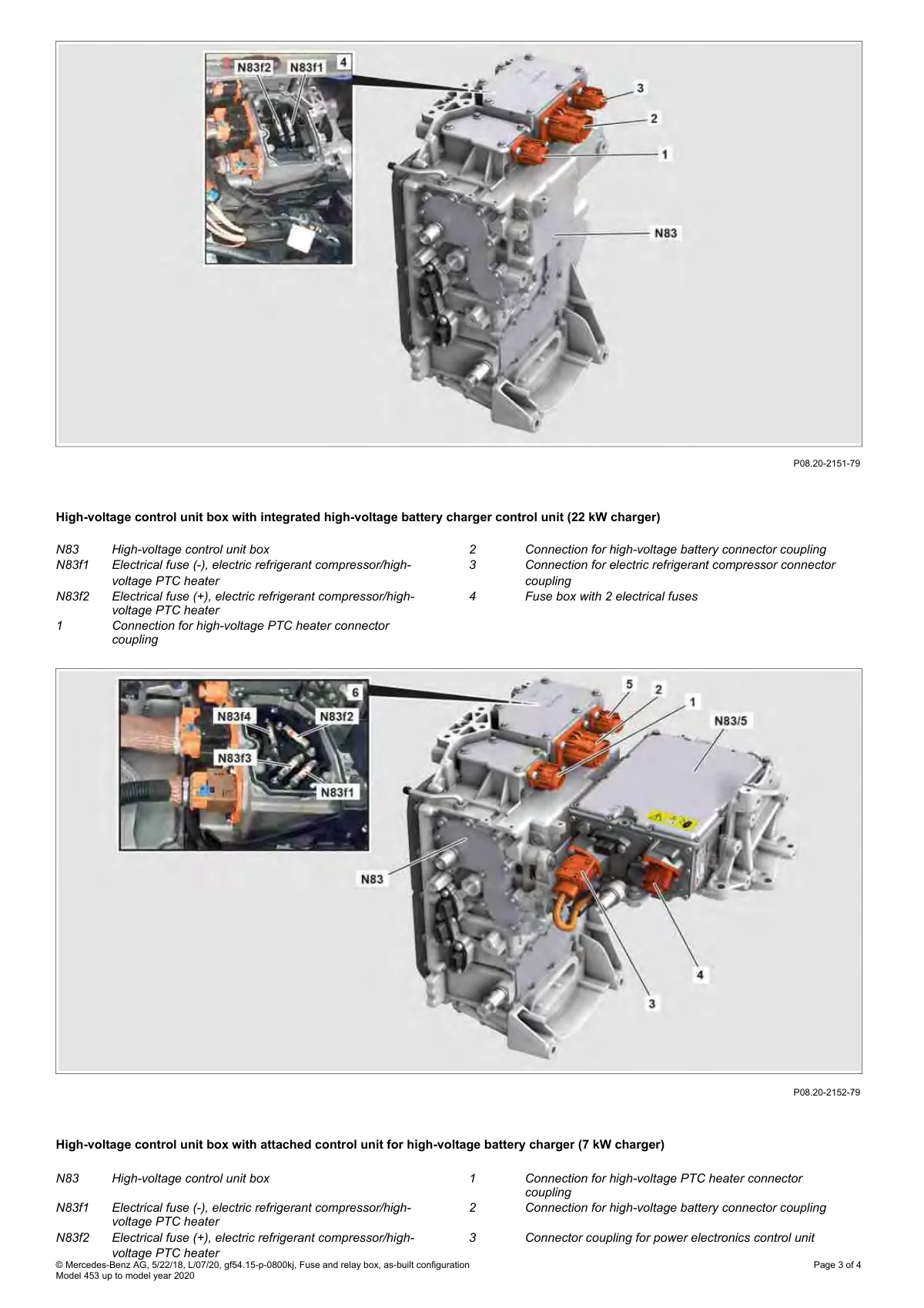

High-voltage control unit box with integrated and attached battery charger control units for electric Smart Fortwo 453.

Two exploded views of high-voltage control unit boxes showing electrical connections and component locations.

View full-size image ↗

See all EV-specific figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
