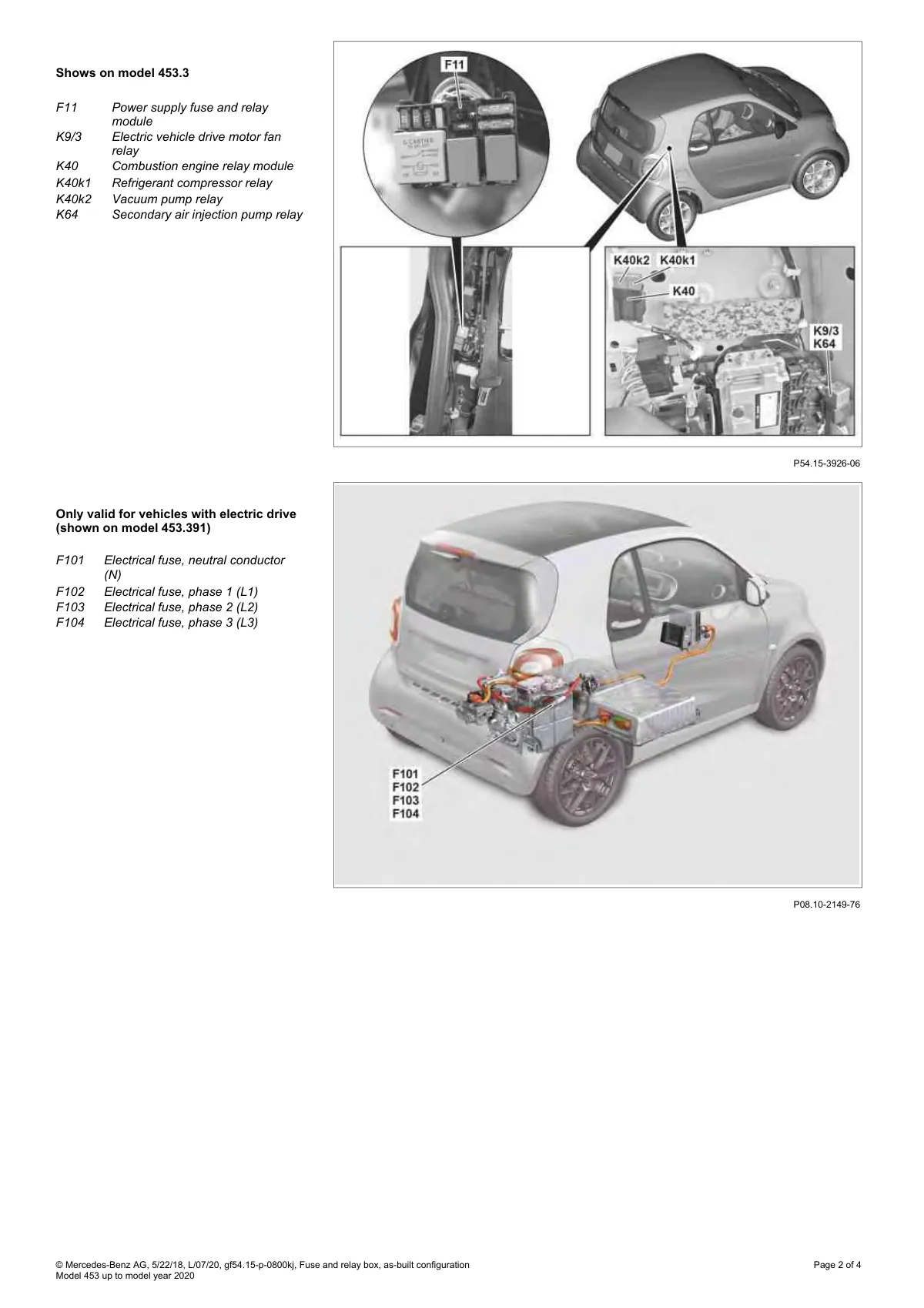

Fuse and relay box locations for Smart Fortwo 453.3 combustion engine and 453.39 electric drive models.

Two diagrams showing fuse and relay locations in Smart Fortwo 453 vehicles with engine and EV variants.

View full-size image ↗

See all EV-specific figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
