Power supply fuse and relay module assignment diagram for 453 chassis up to model year 2020 showing fuse positions and circuit specifications.

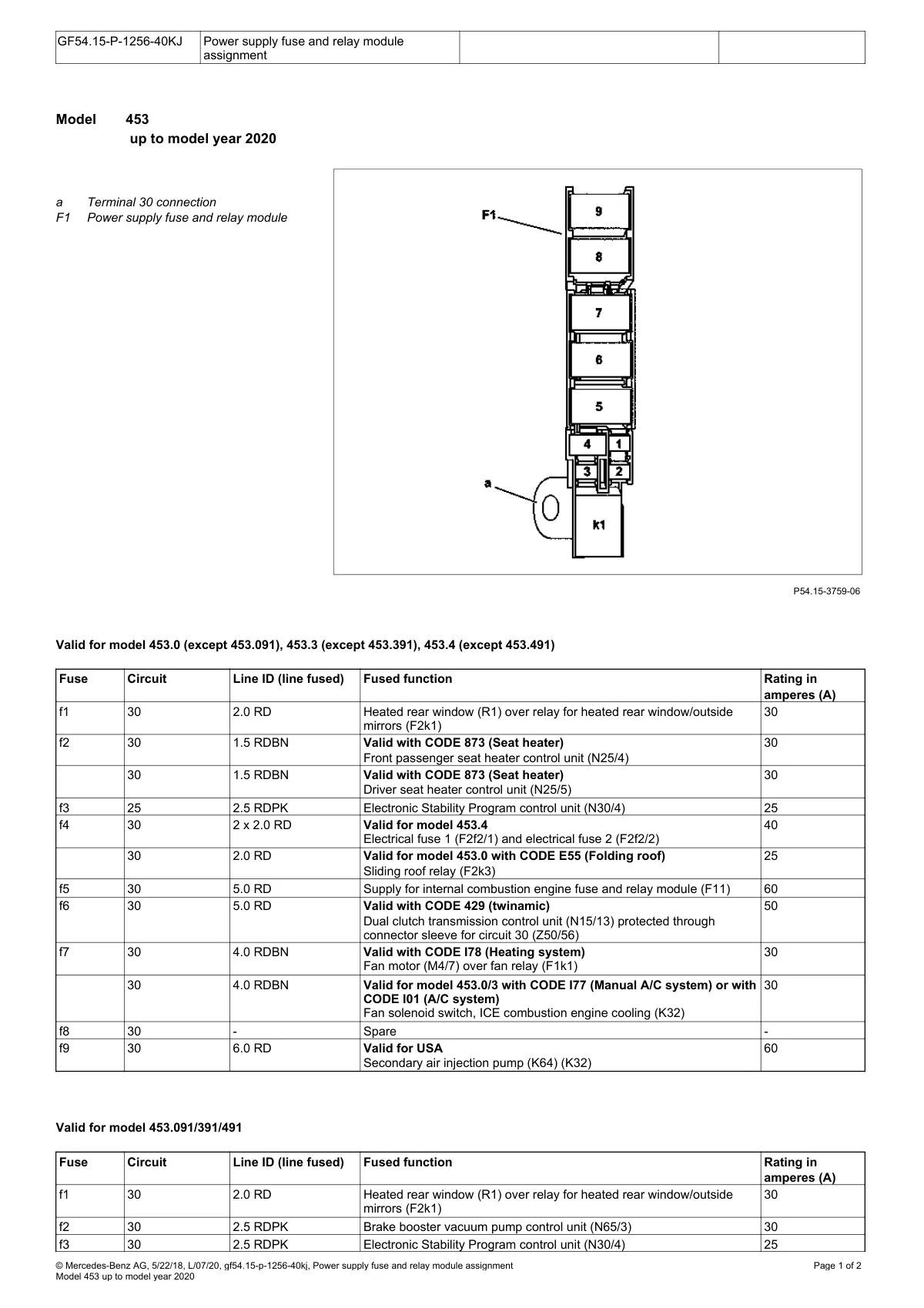

Fuse box diagram with numbered fuse slots 5-9 and relay k1, plus detailed fuse assignment table for model 453.
