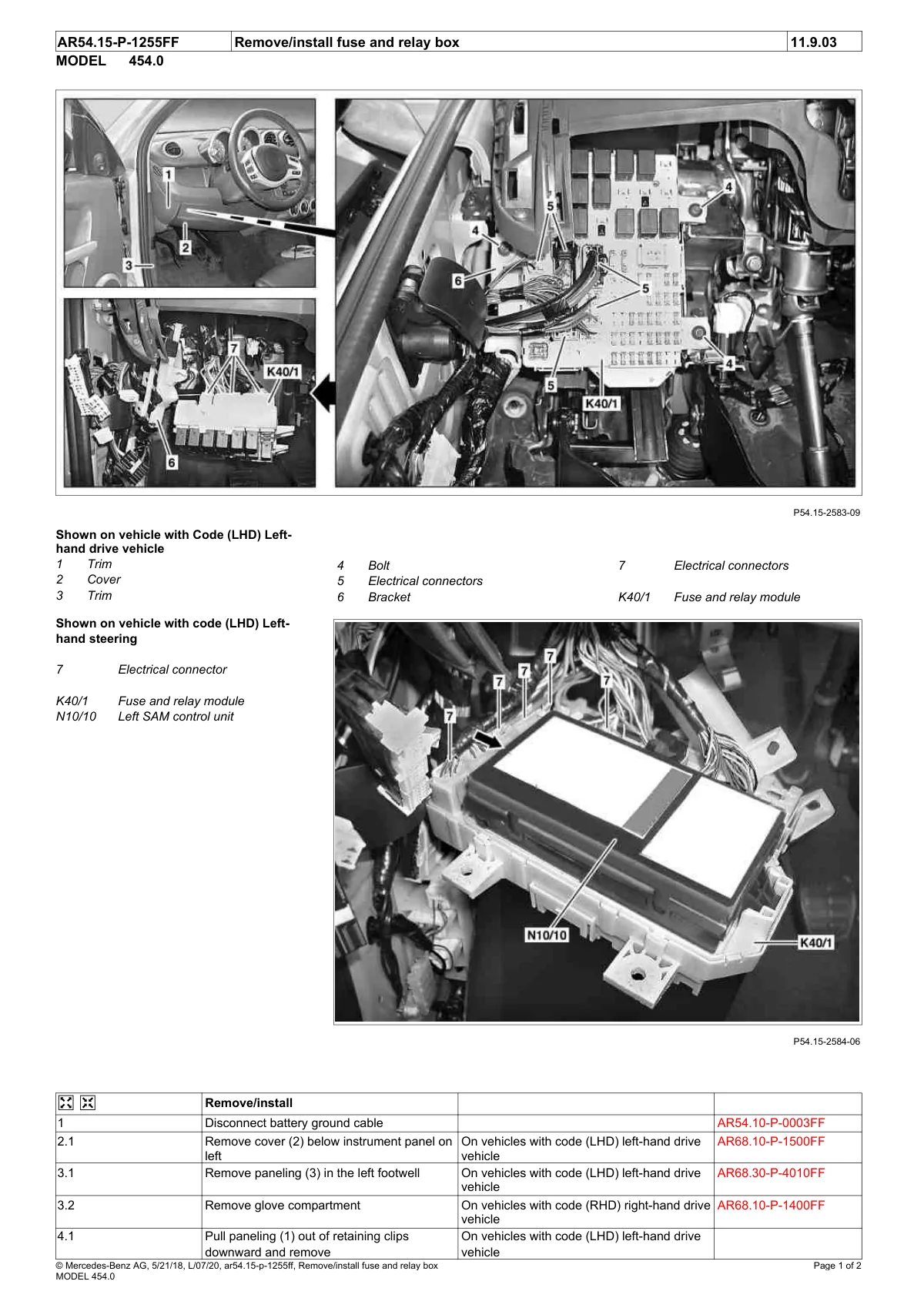

Fuse and relay box removal/installation locations on 454.0 chassis, left-hand drive vehicle with component callouts.

Technical diagrams showing fuse and relay module K40/1 locations in engine bay and interior of Smart Fortwo 454.
