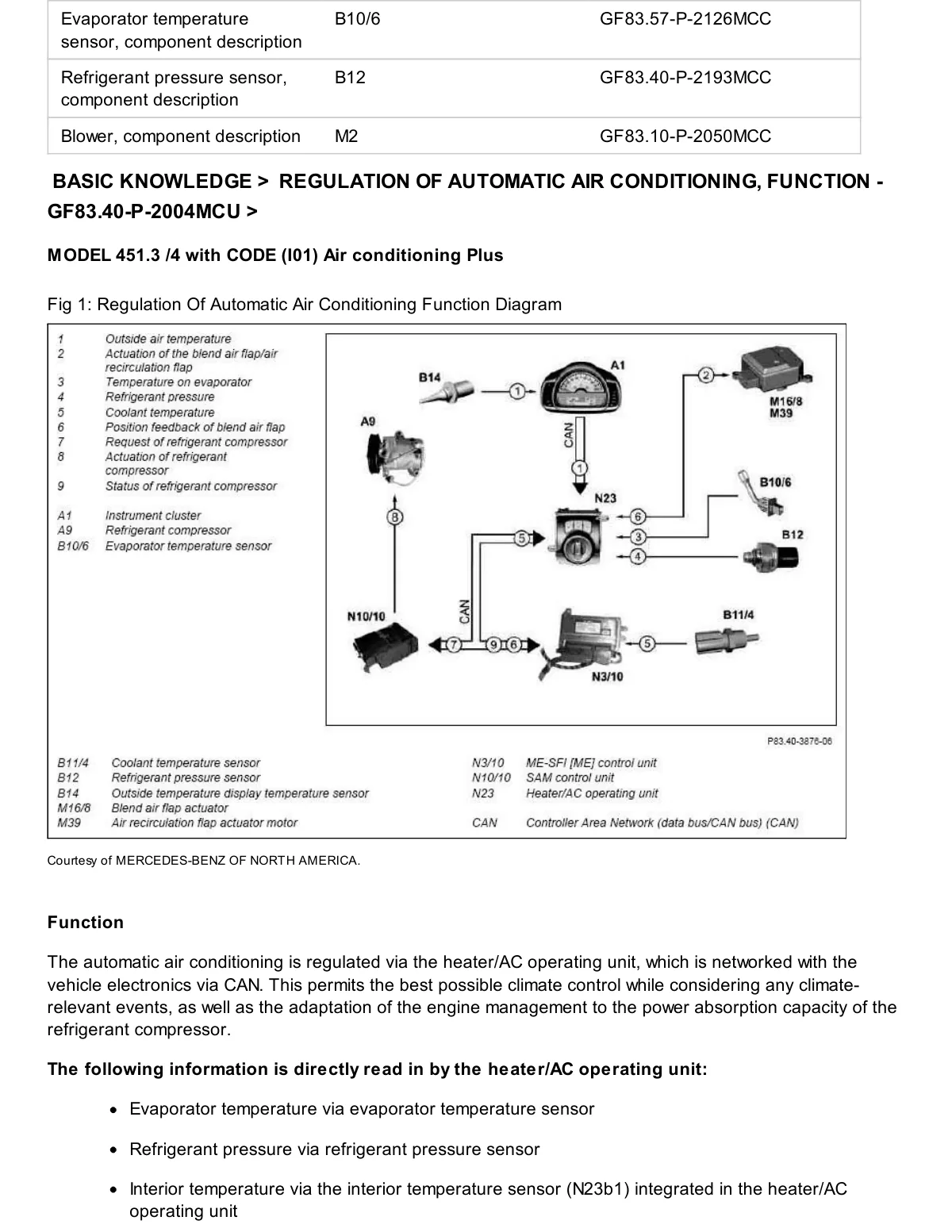

Automatic air conditioning regulation function diagram for smart 451.3/4 with sensors, compressor, and control modules.

Schematic diagram showing AC system components including compressor, sensors, and electronic control units.
