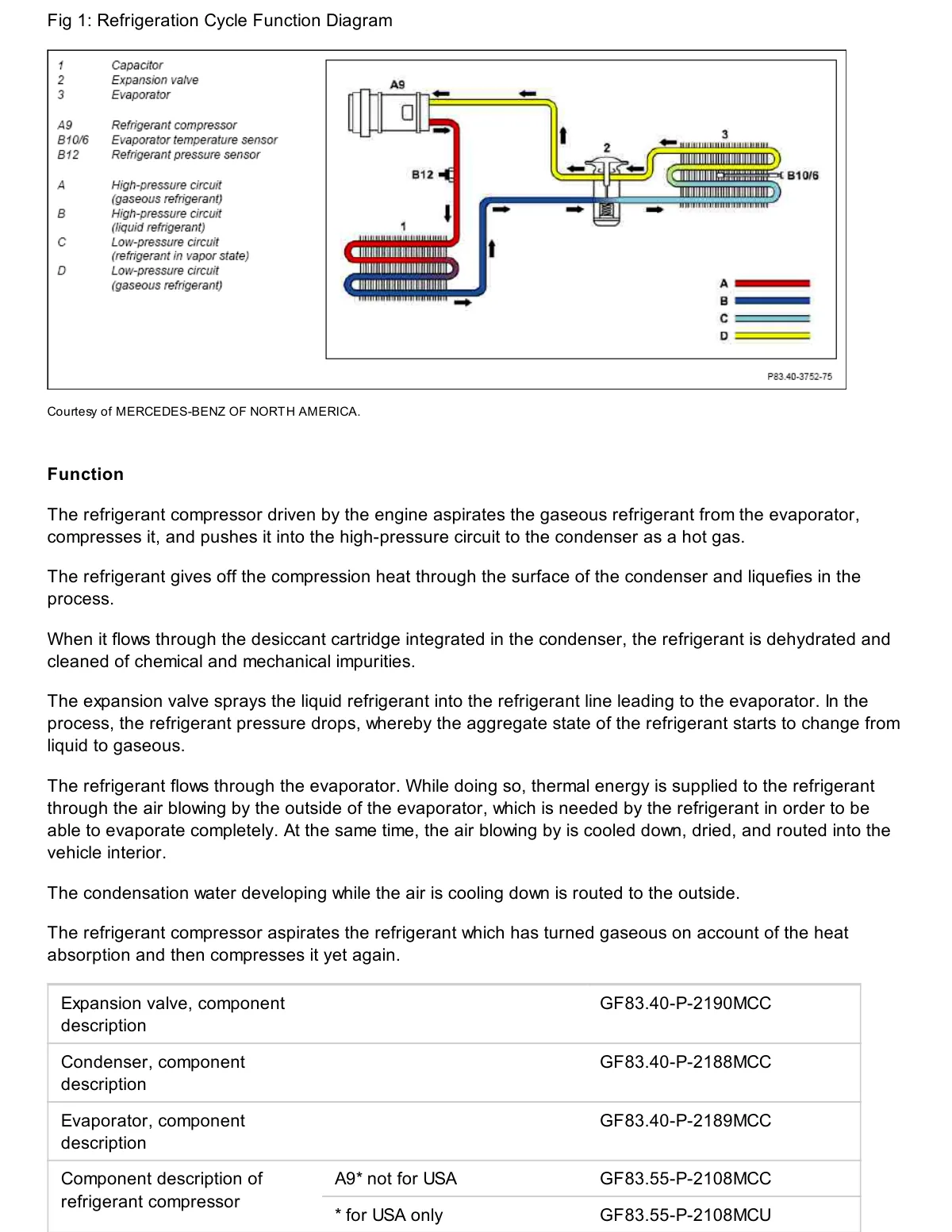

Air conditioning refrigeration cycle function diagram showing compressor, condenser, evaporator, and refrigerant flow paths.

Schematic diagram of AC refrigeration cycle with color-coded pressure circuits and labeled components.
