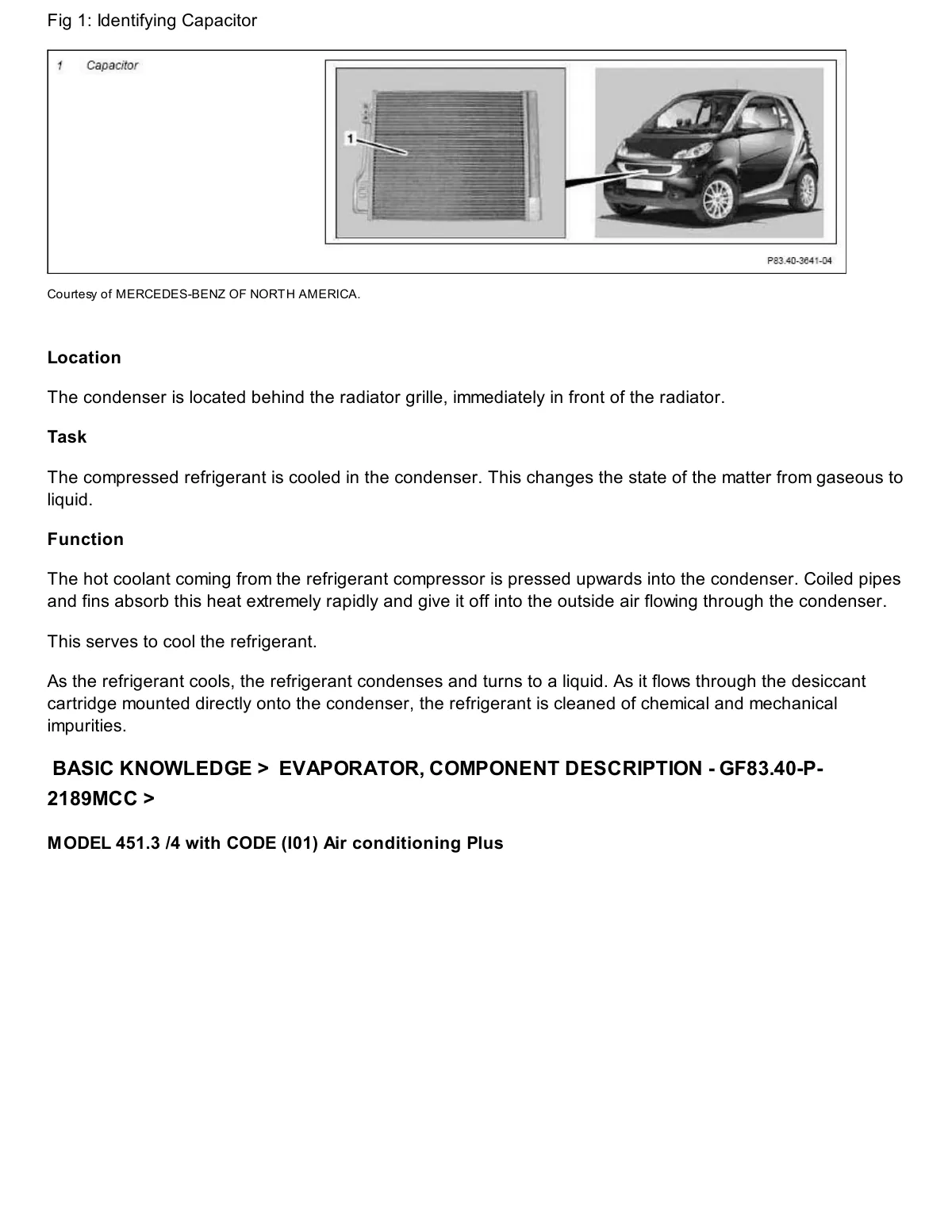

AC condenser location and function for smart fortwo 451 chassis, positioned behind radiator grille in front of radiator.

Diagram showing condenser component and its location on smart fortwo front end.
