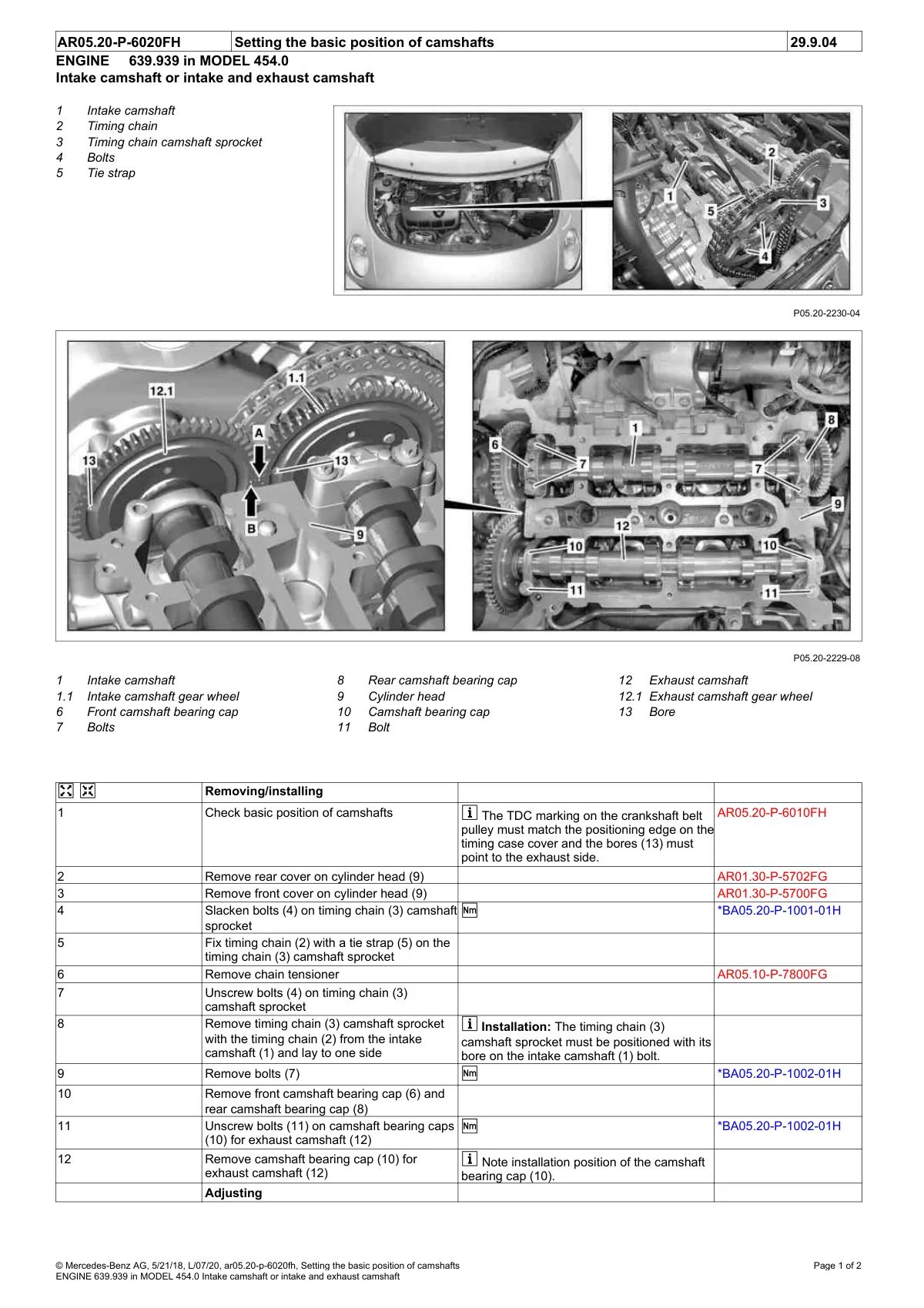

Setting basic position of intake and exhaust camshafts on 454.0 engine with timing chain and sprocket callouts.

Engine camshaft timing diagram with numbered callouts showing intake/exhaust shafts, gears, bearing caps, and bolts.
