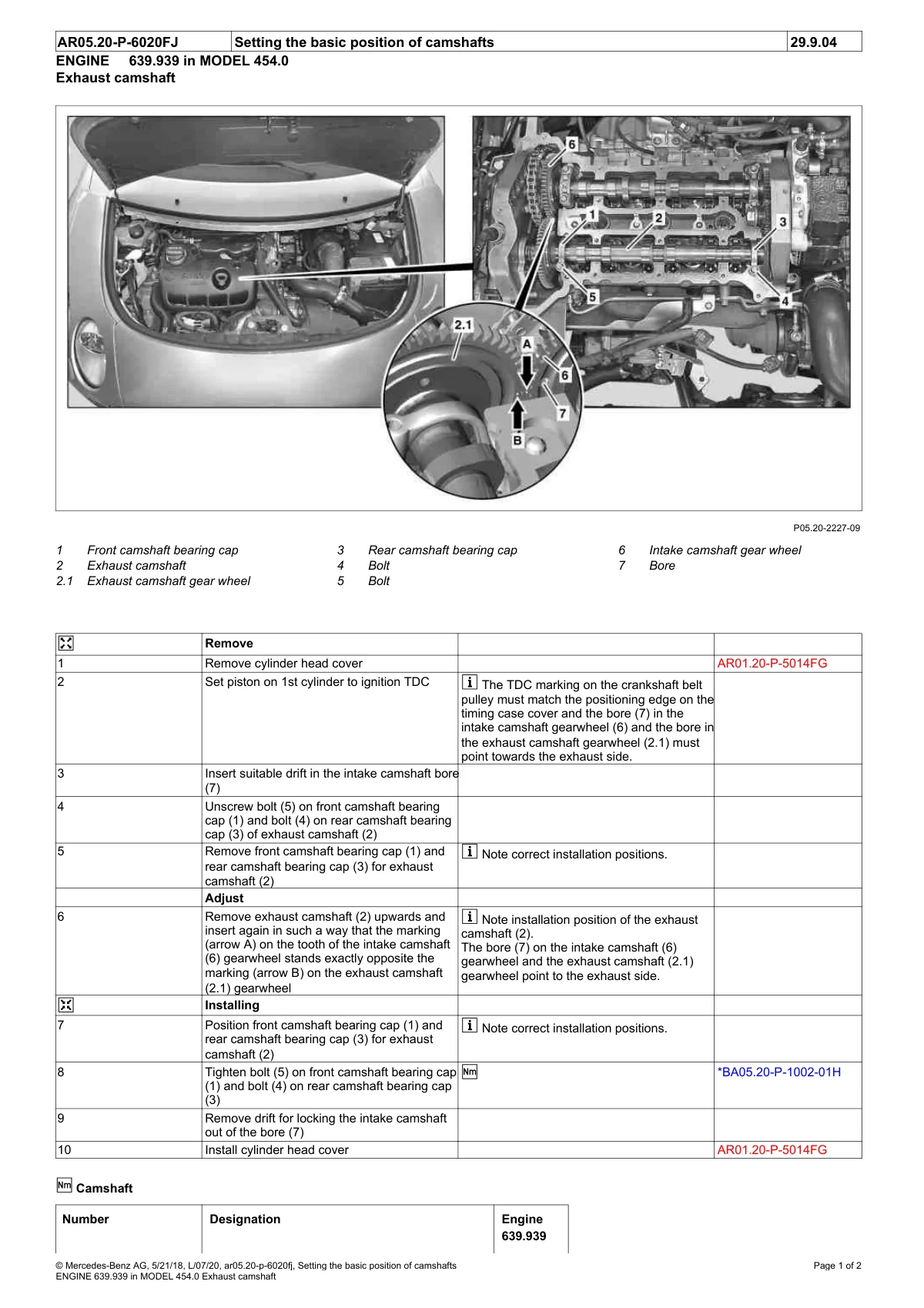

Setting basic position of exhaust camshaft on 454.0 engine with numbered callout locations and removal/adjustment procedure steps.

Engine bay photo with detailed camshaft diagram and service procedure table for model 454.0
