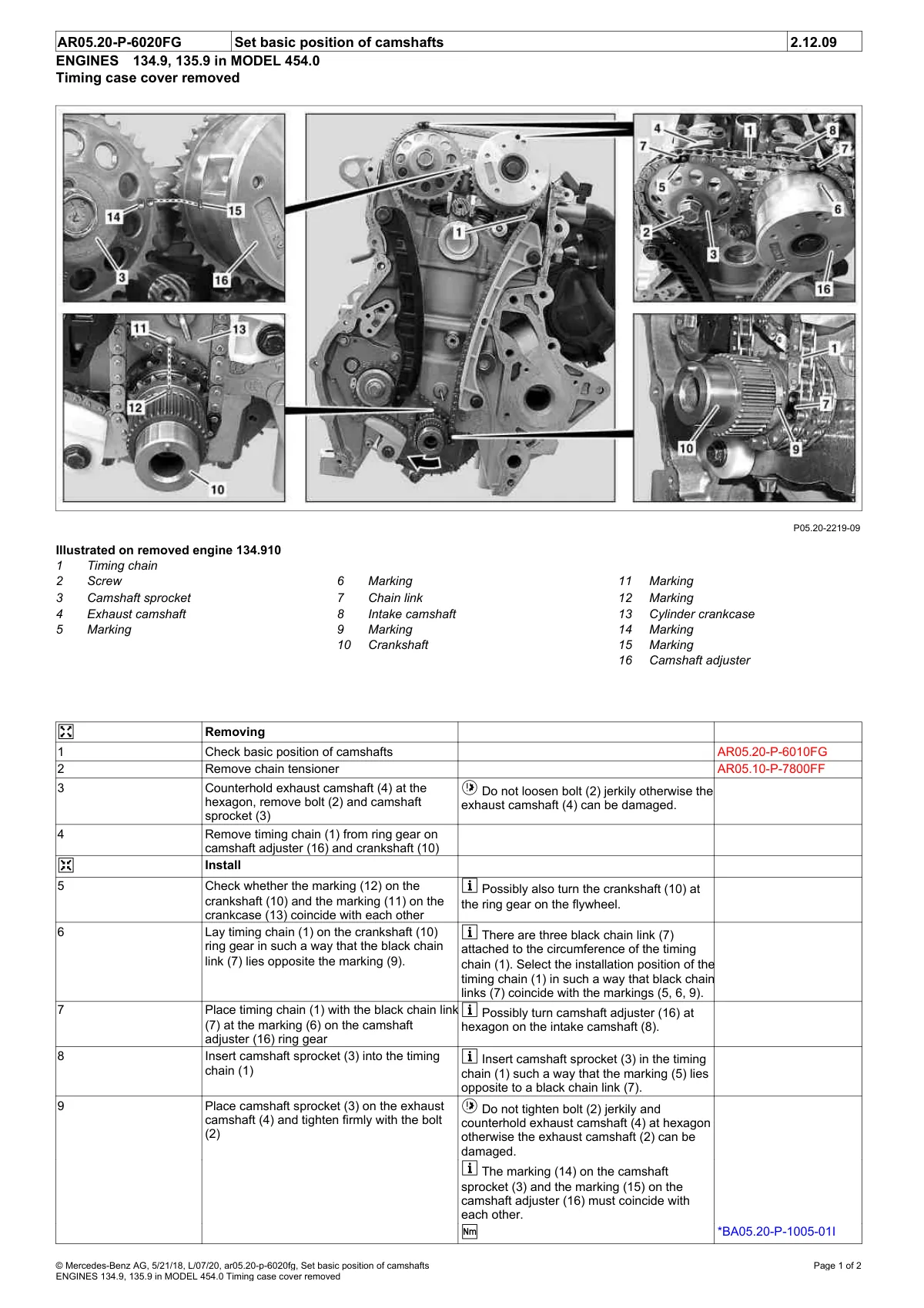

Camshaft basic position setting procedure for 454.0 engine with timing case cover removed, showing timing chain and marked references.

Engine camshaft timing diagram with numbered callouts pointing to chain, sprockets, and adjustment points.
