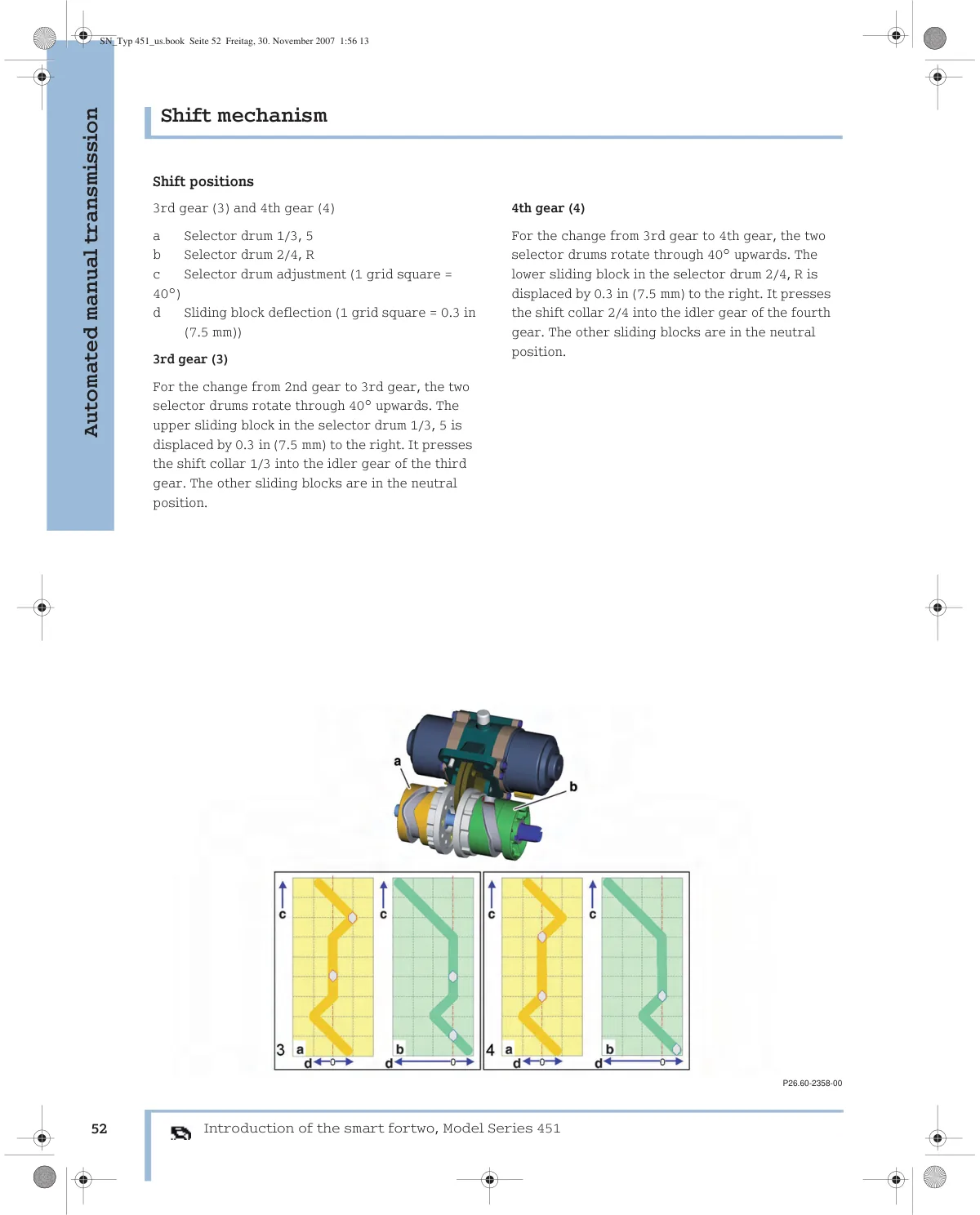

Automated manual transmission shift mechanism selector drums and sliding blocks for 3rd and 4th gear engagement.

Shift mechanism diagram showing selector drums, sliding blocks, and gear position grids for smart fortwo 451.
