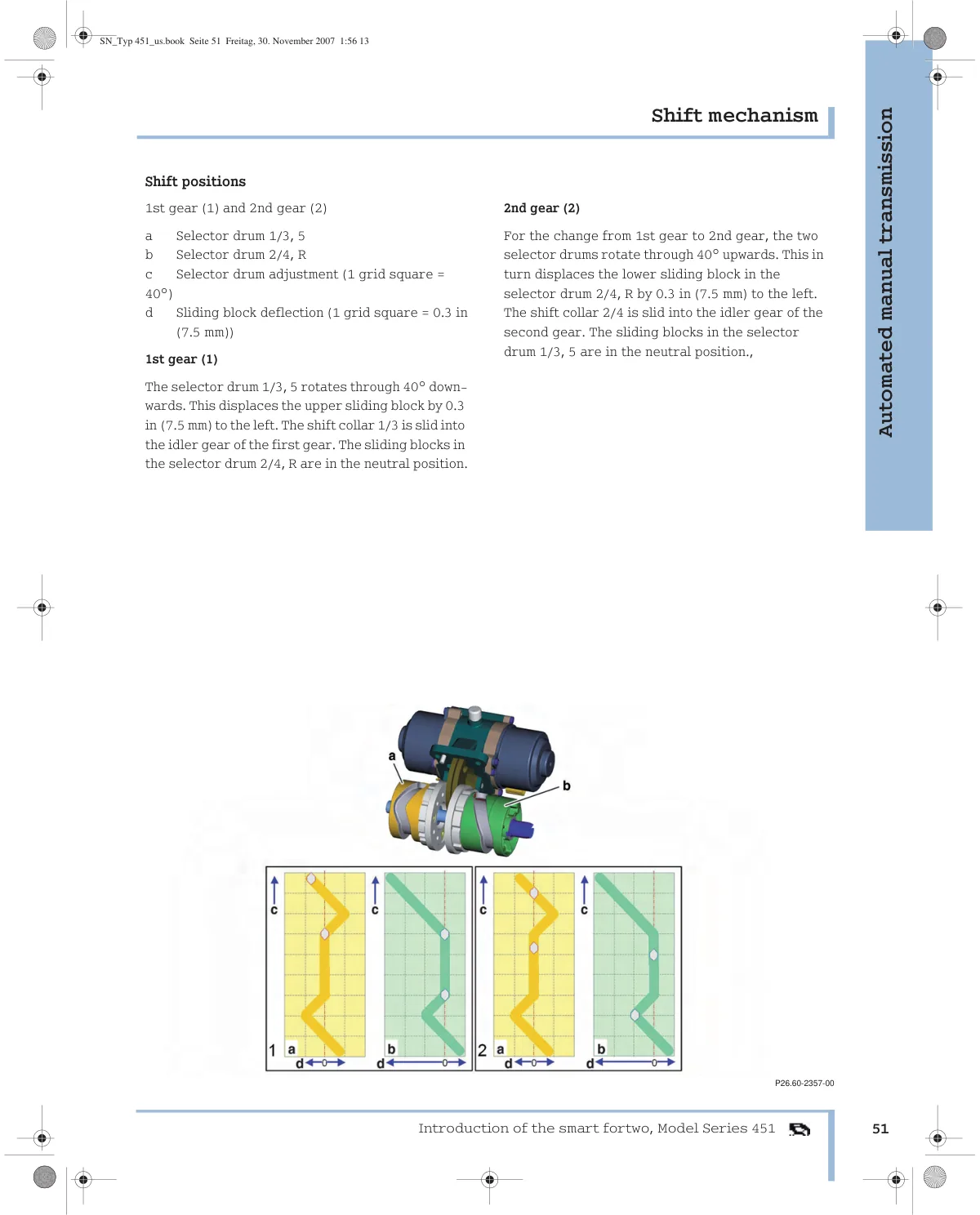

Automated manual transmission shift mechanism with selector drums and sliding blocks for 1st/2nd gear engagement (451 model).

Transmission shift mechanism diagram showing selector drums, sliding blocks, and gear position grid patterns.
