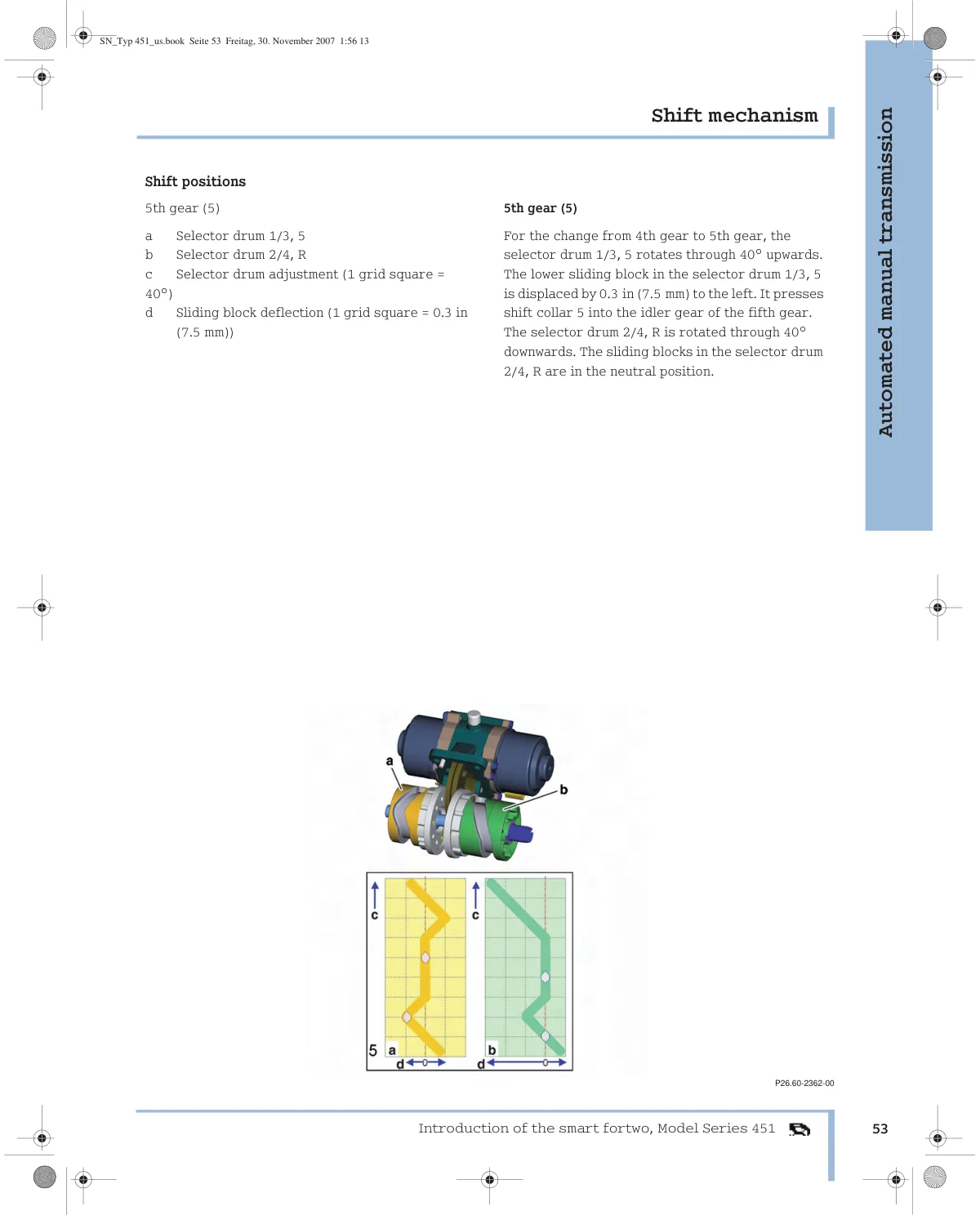

Shift mechanism and 5th gear selector drum positioning with deflection measurements for smart fortwo 451 automated manual transmission.

Shift mechanism diagram showing selector drums and sliding block deflection with grid reference guide.
