Air conditioning system components and climate control operating unit for Smart Fortwo 453 with automatic air conditioning code I01.

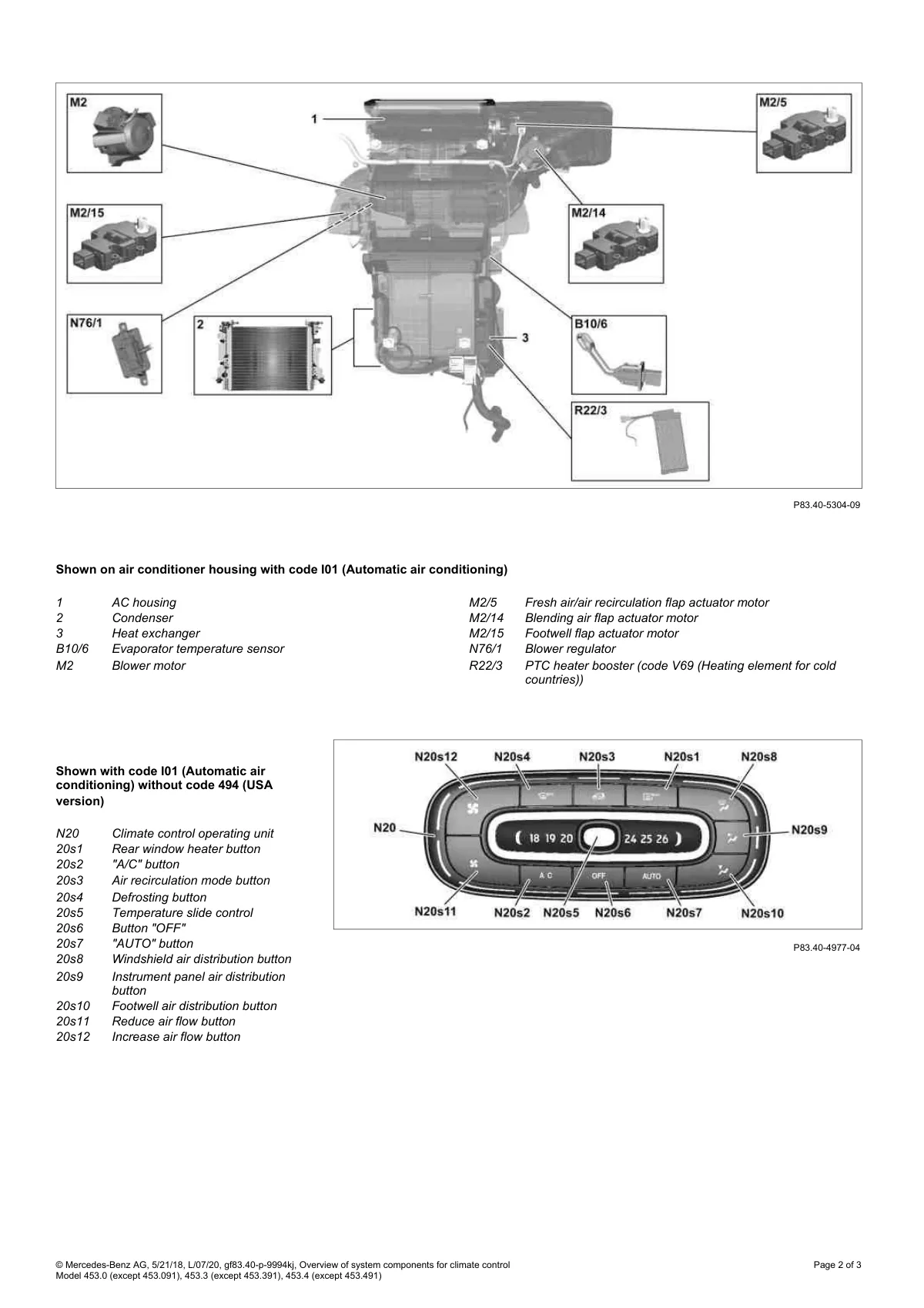

Exploded view of AC housing, condenser, heat exchanger, blower motor, actuators, and climate control panel with labeled callouts.

View full-size image ↗

See all HVAC & Comfort figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
