Climate control system component locations and identifiers for Smart Fortwo 453.0/453.3/453.4 models.

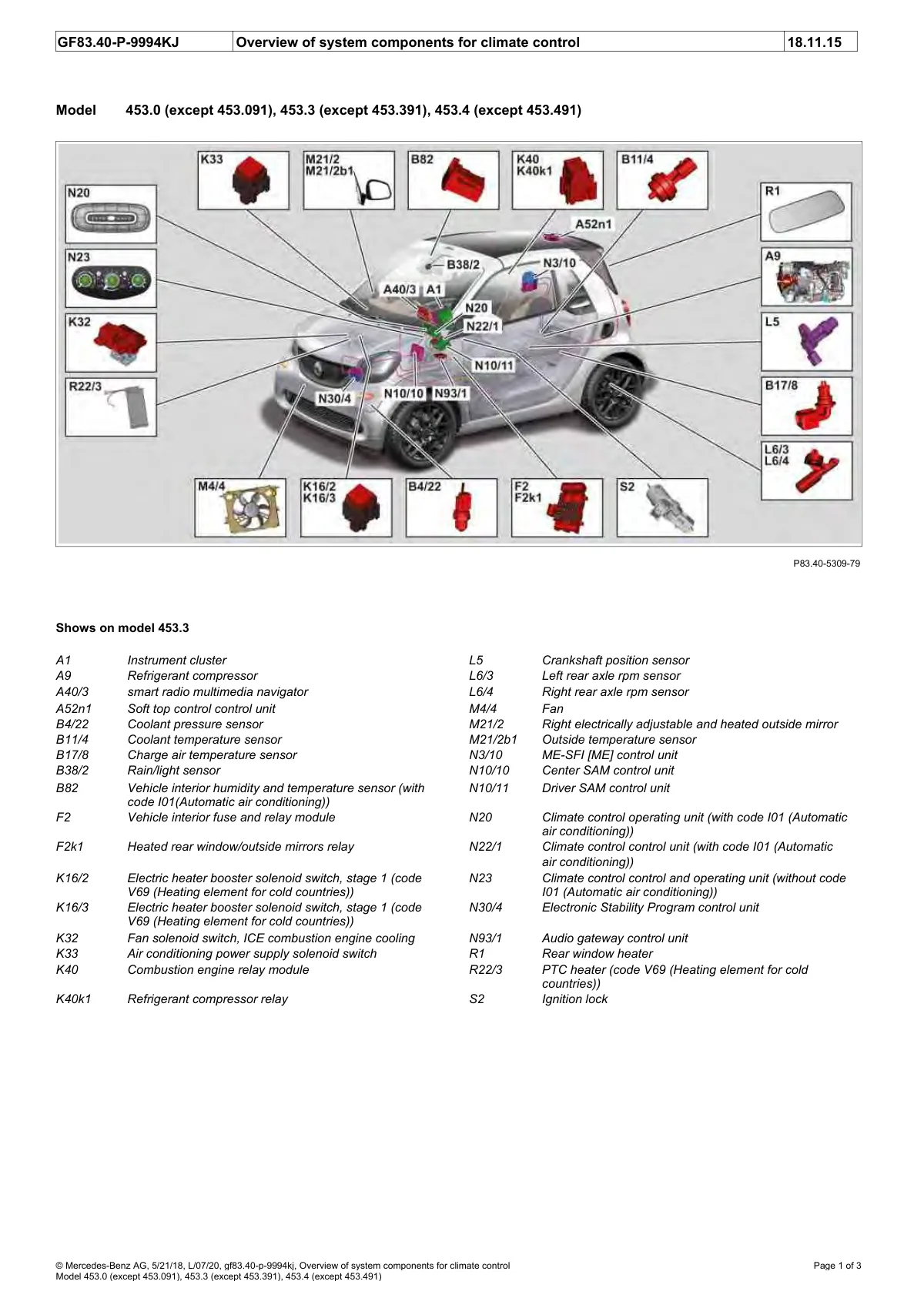

Diagram showing HVAC and climate control components distributed around a Smart car 453 chassis with labeled callouts.

View full-size image ↗

See all Electrical figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
