Automatic Parking Assist limitations, failure conditions, and parking procedure for Smart vehicles.

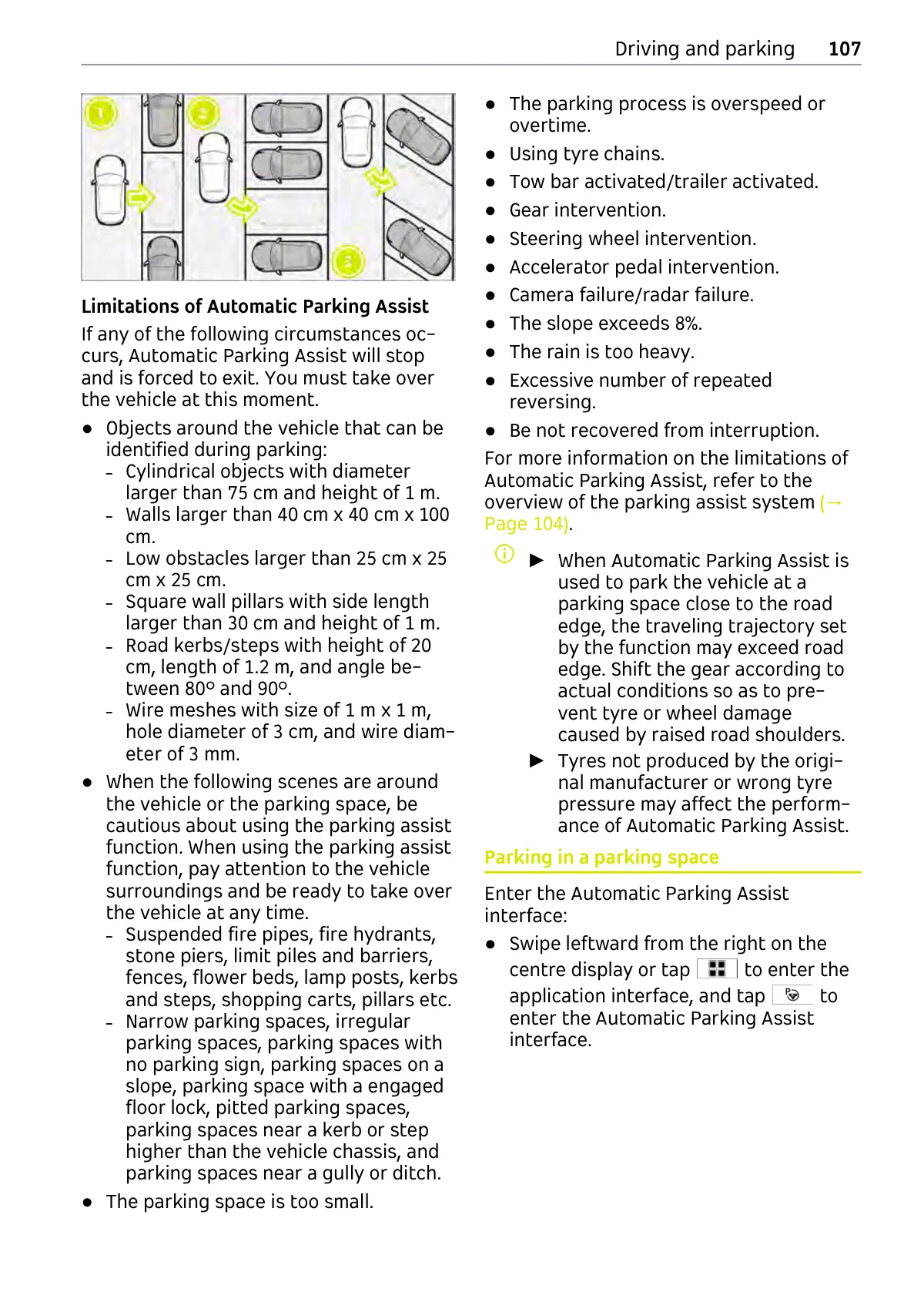

Page 107 showing parking assist system limitations and when to manually take control of vehicle.
