Front and rear parking assist systems with radar sensors, activation conditions, and automatic parking assist overview for Smart vehicles.

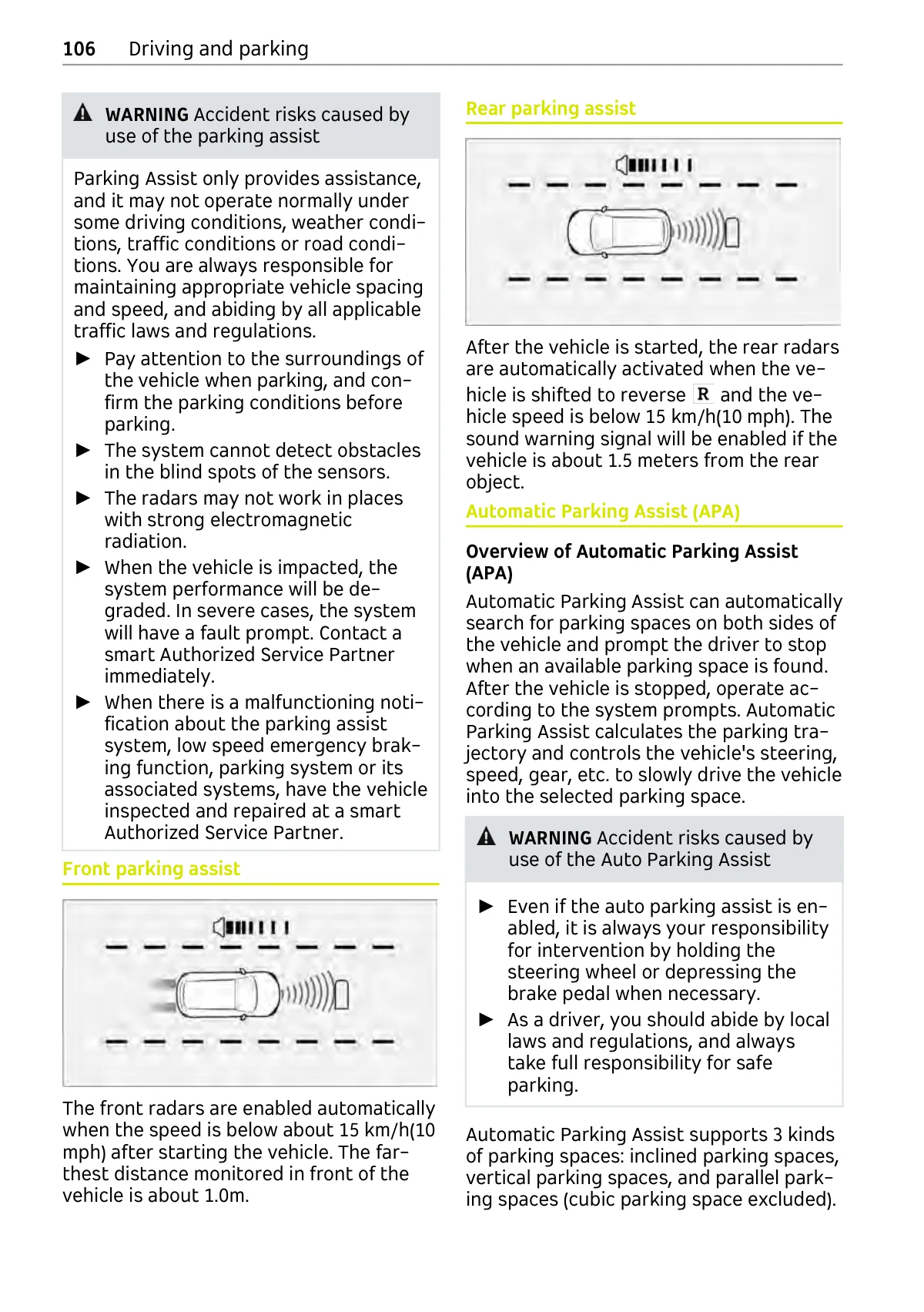

Parking assist features including front/rear radar diagrams and automatic parking assist system description.
