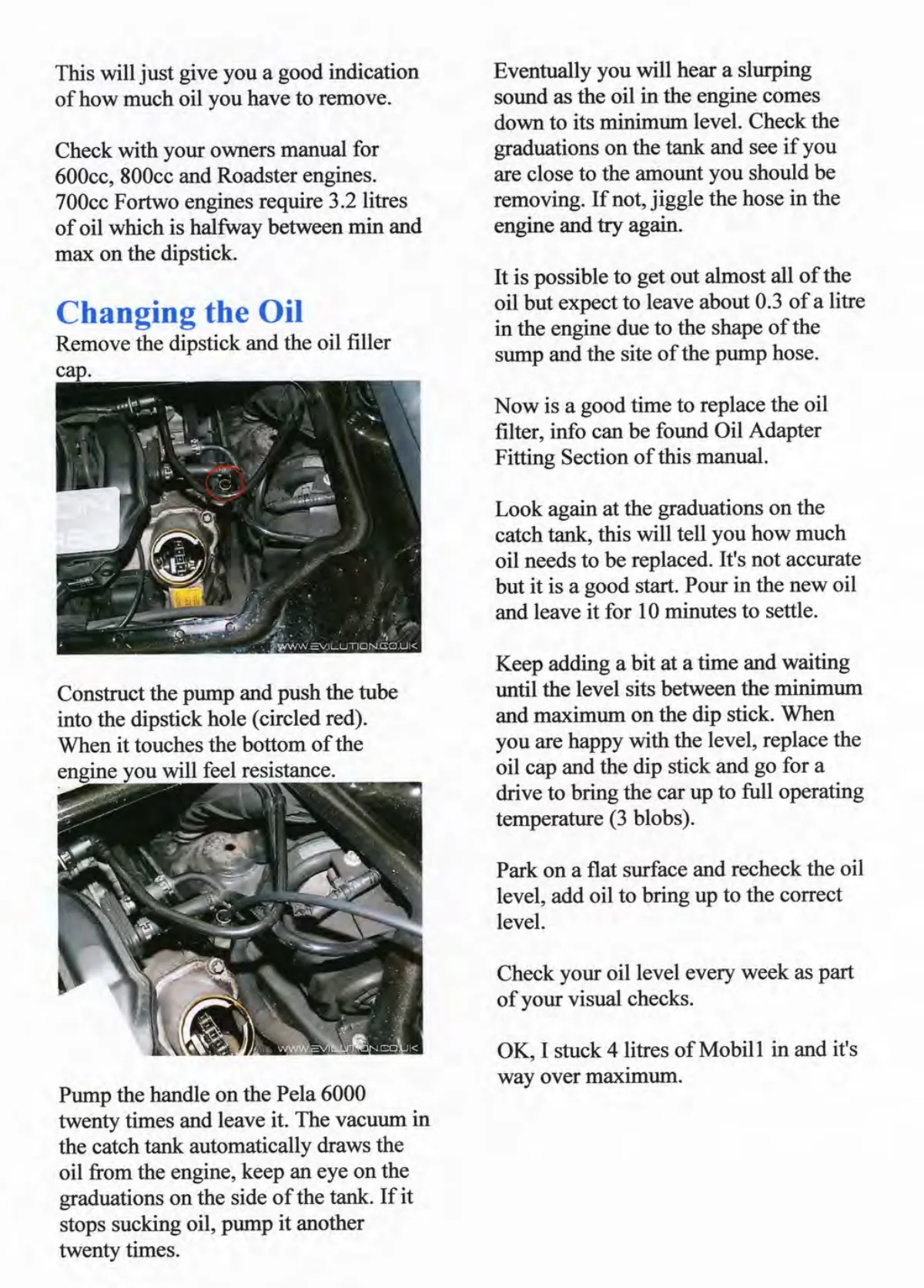

Oil change procedure for Smart engines showing dipstick hole location and Pela 6000 pump extraction method.

Service manual page with text instructions and two engine bay photos showing oil dipstick and pump tube placement.
