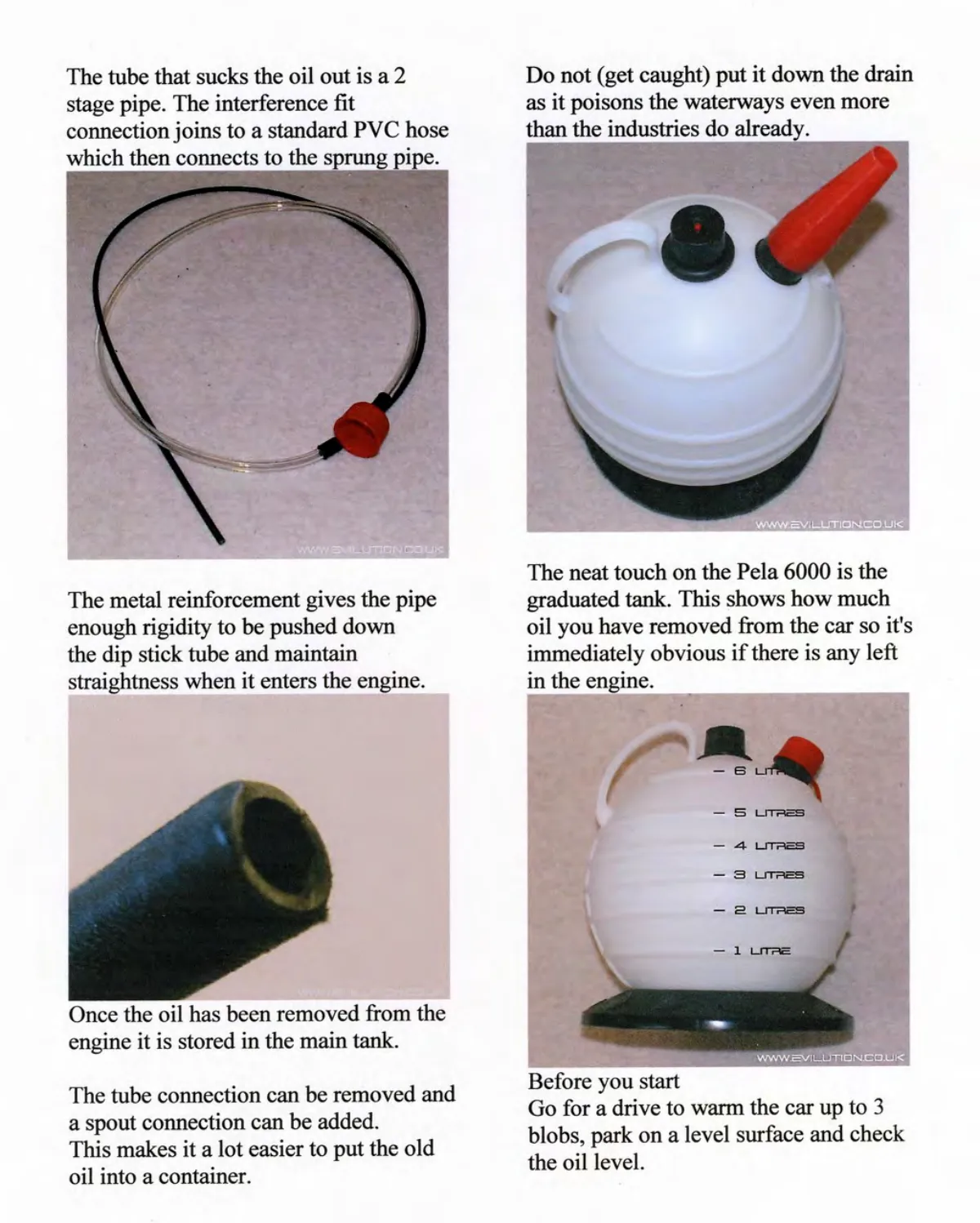

Oil extraction system components for smart fortwo: suction pipe with metal reinforcement, collection tank with graduated markings, and drain procedure instructions.

Four images showing oil extraction tubing, collection tank with fill level marks, reinforced pipe detail, and graduated tank with measurement scale.
