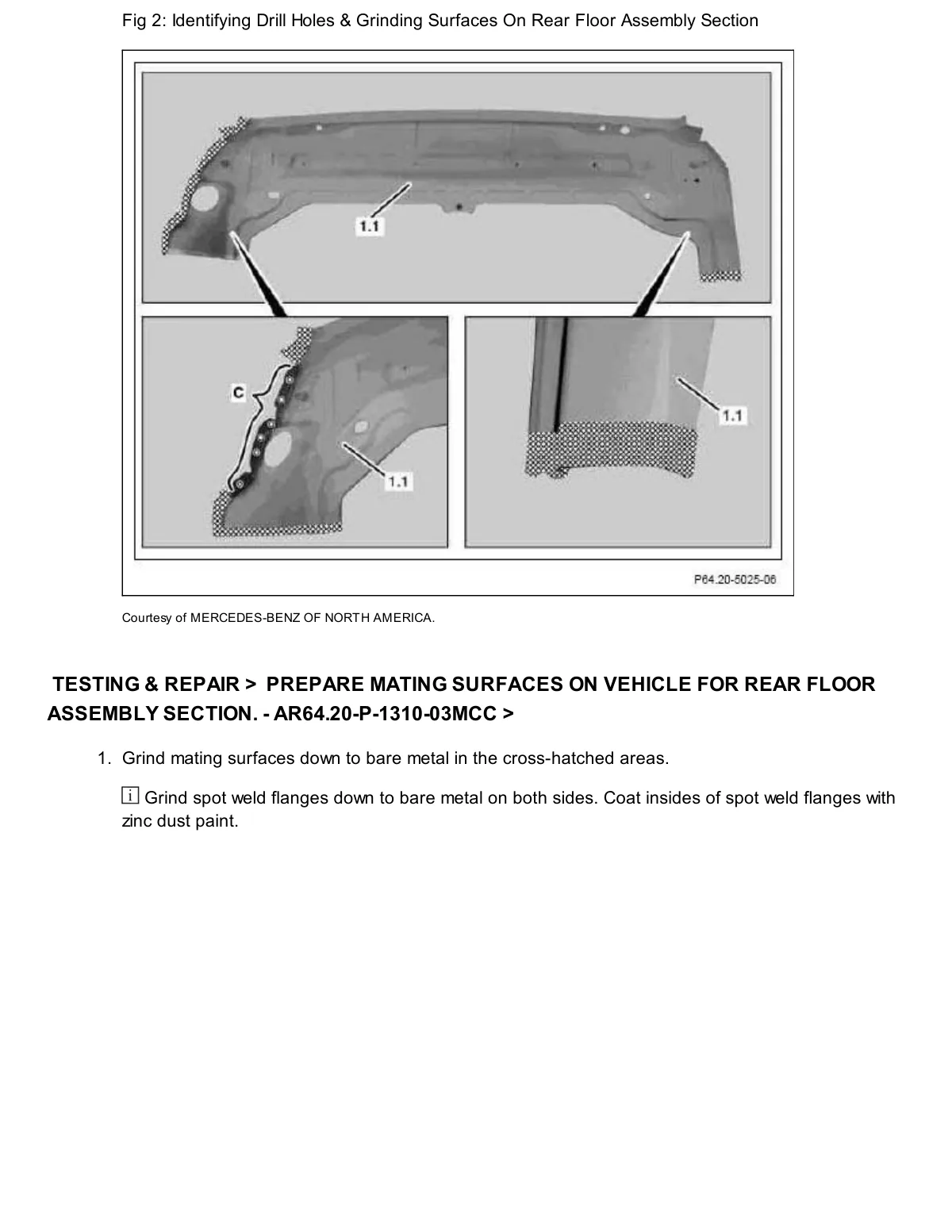

Rear floor assembly section drill holes and grinding surfaces preparation locations with cross-hatched mating areas marked.

Technical diagram showing rear floor panel with callout indicators for grinding and drilling preparation points.
