Body & Interior figures — Smart Fortwo (450)

1,199 body & interior illustrations for the Smart Fortwo (450) — schematics, exploded views, and procedure photos drawn from the manuals. Open any figure for its source page, part references, and a copyable link.

Damaged Smart fortwo with emergency kit deployed roadside; communication breakdown section cover.

450 Smart fortwo 450 breakdown assistance communication Body · p1

Diagram showing front and rear towing attachment points highlighted on Smart car views.

450 Front and rear towing lug fixing points on Smart fortwo Body · p30

Diagram showing how to attach towing lug to Smart car front bumper with step-by-step instructions and danger warning.

450Location callout Towing lug attachment procedure for Smart fortwo Body · p31

Three-view diagram of Smart Fortwo 450 showing stone impact zone, CBS rear area, and rear panel fastening points.

450Location callout Inspect Smart Fortwo 450 body for paintwork damage, stone Body · p79

Three step-by-step photos showing cockpit switch group removal from smart fortwo center console with labeled connectors.

450Location callout Removing and installing cockpit switch group S6/1 on center Interior trim · p100

Service procedure diagram showing rear fender liner removal steps with numbered callouts on smart fortwo.

450Location callout Remove/install fender liner in rear fender, chassis Interior trim · p114

Service manual page showing numbered callouts for footrest removal steps with black and white photos.

450Location callout Passenger-side footrest removal/installation procedure for Body · p115

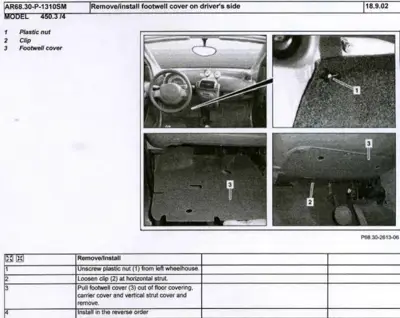

Four-image procedure showing footwell cover removal location and fastener details with numbered callouts.

450Location callout Remove/install driver's side footwell cover on smart fortwo Body · p116

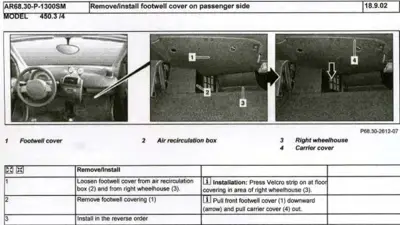

Service manual page showing interior passenger footwell with numbered callouts identifying footwell cover, air recirculation box, right wheelhouse, and carrier cover.

450Location callout Passenger side footwell cover removal and installation Body · p117

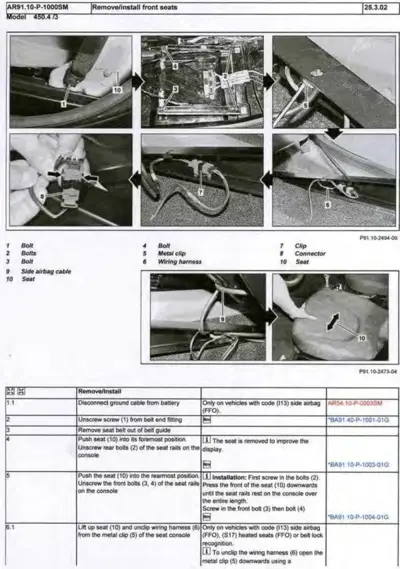

Six-panel instructional photos showing seat removal steps with callout numbers and legend table below.

450Location callout Front seat removal and installation procedure for Smart Interior trim · p121

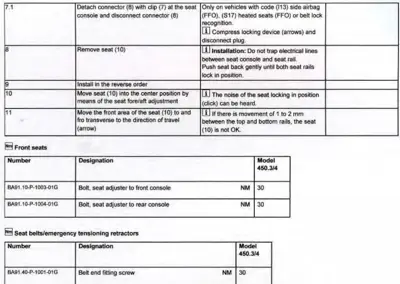

Service procedure table showing seat removal steps 7-11 with parts list for front seats and seat belts.

450Location callout Front seat removal and installation procedures with Interior trim · p122

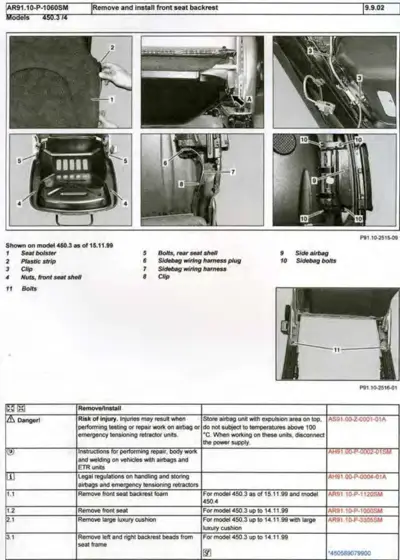

Service procedure showing six numbered steps for front seat backrest removal and installation on smart fortwo.

450Location callout Remove and install front seat backrest for smart fortwo Interior trim · p123

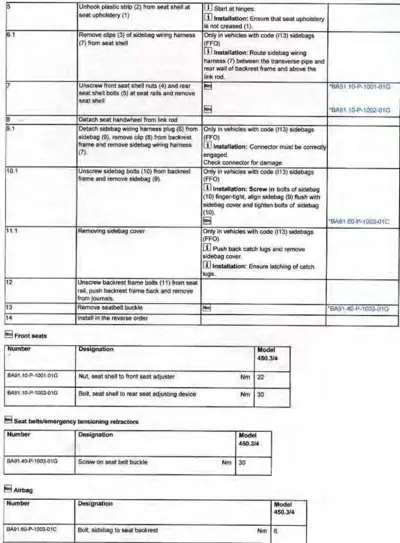

Service manual table showing seat removal steps 5-14 with torque specs and airbag/seatbelt part numbers

450Torque table Front seat removal and installation procedure with numbered Interior trim · p124

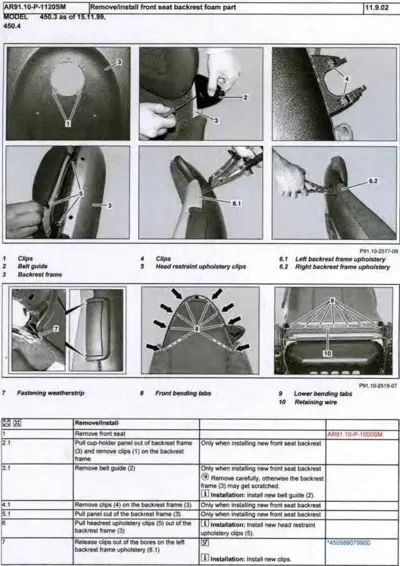

Service manual page showing disassembly steps for front seat backrest foam component with callout diagrams and procedural table.

450Location callout Remove/install front seat backrest foam part for smart Interior trim · p125

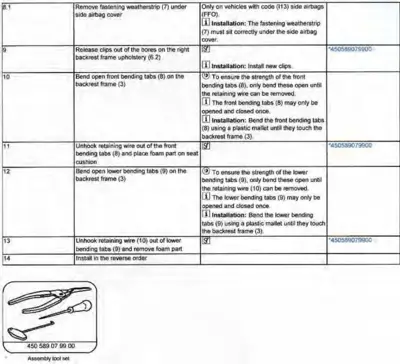

Service procedure table for backrest frame disassembly with numbered steps and part numbers

450Location callout Backrest frame disassembly procedure steps 8-14, including Body · p126

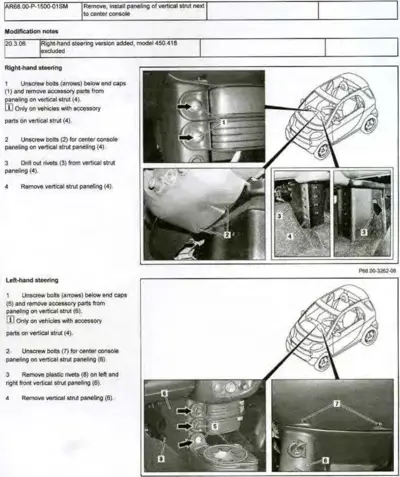

Service procedure showing vertical strut panel removal with numbered callouts and photo details.

450Location callout Vertical strut paneling removal procedure for Smart fortwo Interior trim · p131

Service diagram showing fender liner removal steps with callout labels on rear wheel well detail photograph.

450Location callout Rear fender liner removal and installation procedure for Body · p132

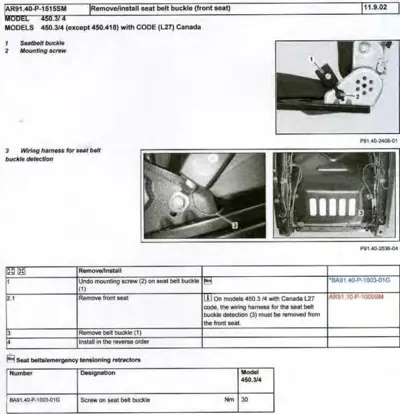

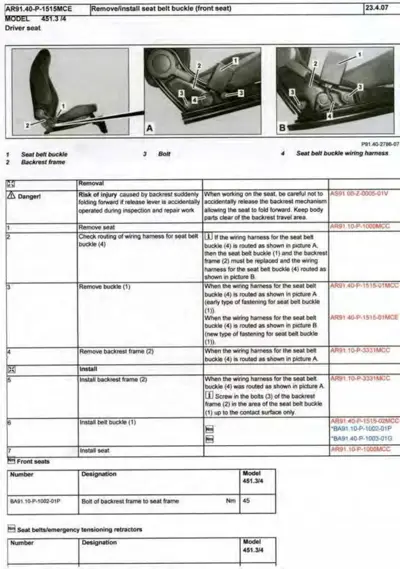

Service manual page showing seat belt buckle removal steps with numbered callouts and wiring harness diagrams.

450Location callout Front seat belt buckle removal and installation procedure Interior trim · p134

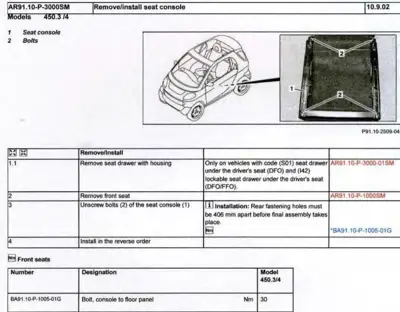

Diagram showing seat console component location and bolt removal steps for Smart fortwo models 450 and 451.

450Torque table Seat console removal and installation procedure for Smart Body · p135

Service procedure showing seat drawer extraction and housing disassembly with two detail photos.

450Location callout Seat drawer removal and installation procedure with housing Interior trim · p136

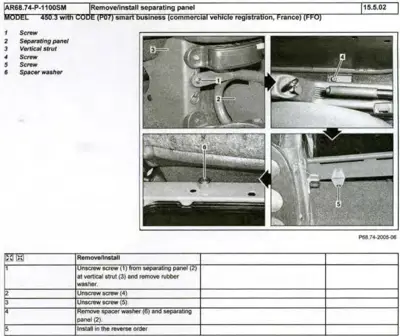

Four photo panels showing screws, vertical strut, separating panel, and spacer washer removal steps on smart fortwo 450.

450Location callout 450.3 smart business separating panel removal/installation Interior trim · p137

Service manual page showing tachometer removal steps with center console photo and detailed procedure table.

450Location callout Tachometer removal and installation procedure for smart Interior trim · p142

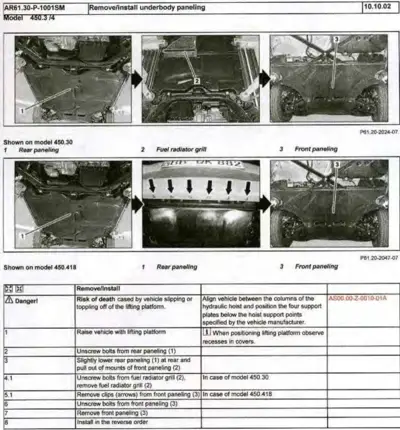

Underbody paneling removal steps with three photos and instructions table for Smart fortwo models 450.30 and 450.41B.

450Location callout Remove/install underbody paneling procedure for chassis Body · p147

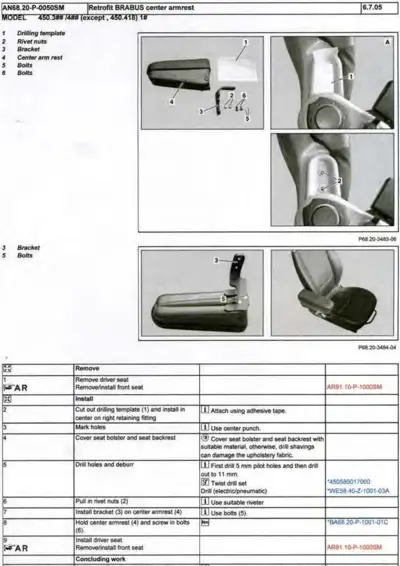

Service manual page showing BRABUS center armrest retrofit assembly components and installation instructions for Smart fortwo.

450Location callout Retrofit BRABUS center armrest installation procedure for Body · p157

Torque spec table for center armrest bolts and twist drill set image

450Torque table Center armrest bolts torque specification and twist drill Interior trim · p158

VIN breakdown diagram with numbered callouts 1-7 explaining each digit position in chassis number WME450300....

450Schematic Chassis number breakdown for Smart fortwo 450/452/454 Body · p167

Diagram explaining VIN positions 1-6 for Smart model 450 using example WME01MC01YH123456.

450Schematic Chassis number breakdown and VIN decoding for Smart 450 Body · p168

Windshield washer nozzle spray pattern diagram showing three jets contacting windshield areas A, B, and C.

450Location callout Windshield washer spray nozzle adjustment procedure with Glass · p169

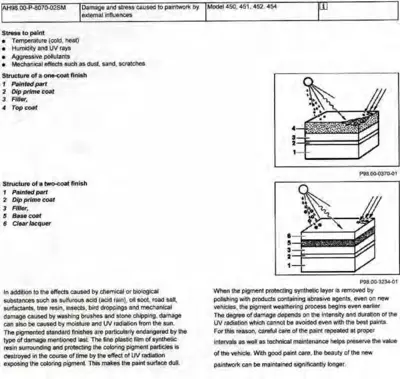

Cross-section diagrams showing paint layer composition and environmental damage effects on smart car paint finishes.

450 Paintwork damage and stress from external influences Interior trim · p170

Wiring diagram showing roof circuits and body electrical connections for smart fortwo chassis 450/451.

450Wiring diagram Smart fortwo 450/451 roof and body wiring schematic with Body · p171

Two diagrams showing chassis number stamping locations on smart fortwo frame with detail photos.

450Location callout Chassis number location on 450/451 body frame, showing two Body · p174

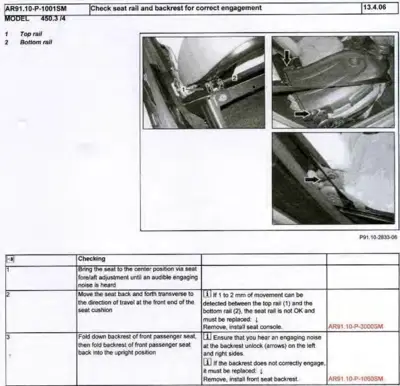

Service manual page showing seat rail inspection photos and checking procedure table for smart fortwo.

450Location callout Chassis 450/451 seat rail and backrest engagement check Interior trim · p178

Wiring diagram showing connector pin assignments and cable colors for trunk lid and soft top connectors.

450Wiring diagram Trunk lid and soft top connector pinout diagrams with cable Body · p195

Table showing mirror connector codes M21/1x1 and M21/2x1 with cable color wire designations.

450Wiring diagram Electrically adjustable heated exterior mirror connectors Glass · p292

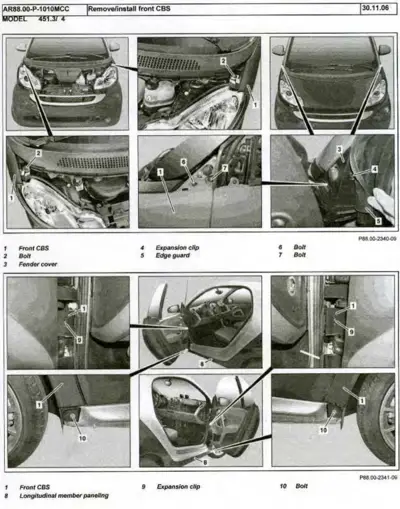

Multi-panel service diagram showing front CBS removal steps with 10 numbered callout locations on smart fortwo.

450Exploded view Removing and installing front CBS (crash box system) on Body · p337

Service manual page showing seat belt buckle removal steps A and B with labeled components and installation instructions.

450Torque table Front driver seat belt buckle removal and installation Interior trim · p339

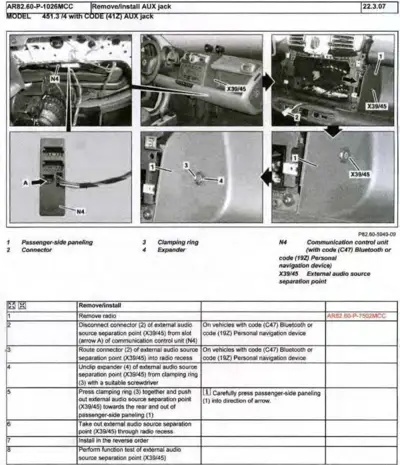

Six photos showing auxiliary jack removal steps, passenger paneling, connectors, clamping ring, and expander on smart fortwo 451.

450Location callout Remove and install auxiliary jack on 451 chassis with code Body · p341

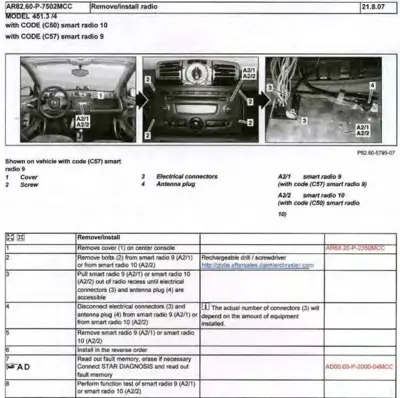

Numbered callout diagram of radio removal steps with three interior/engine bay photos and service procedure table.

450Location callout Radio removal/installation procedure for 451 fortwo with Interior trim · p344

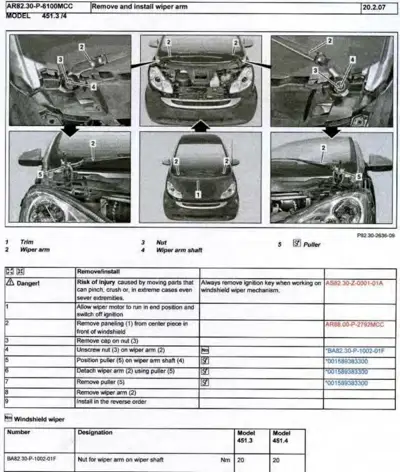

Wiper arm removal procedure with six detail photos showing windshield, hood, and side views with numbered callouts.

450Location callout Remove and install wiper arm assembly on 451 chassis; shows Body · p345

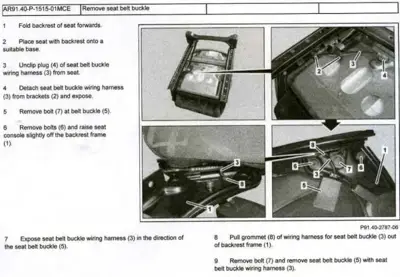

Step-by-step service procedure for removing seat belt buckle assembly from Smart fortwo seat.

450Location callout Remove seat belt buckle from Smart fortwo: fold backrest Interior trim · p346

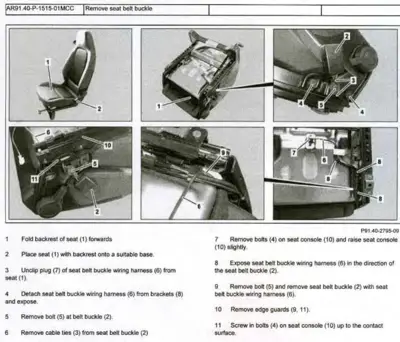

Six-panel service procedure showing seat belt buckle removal steps with numbered parts and components.

450Location callout Seat belt buckle removal procedure with numbered callouts Interior trim · p347

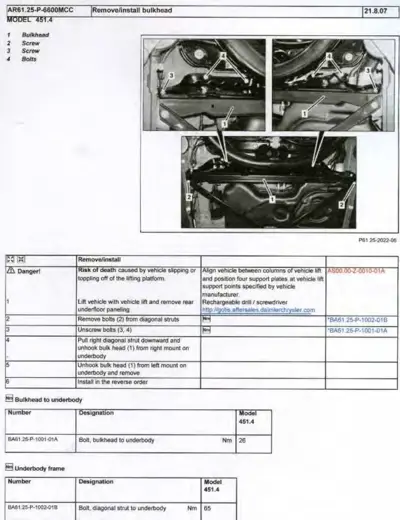

Three engine bay photos showing bulkhead assembly with numbered callouts and service procedure table.

450Torque table Bulkhead removal and installation procedure for 451.4 Body · p352

Wrench tool SW 12 part number 451 589 00 10 00 with numbered service steps table.

450Location callout Service procedure steps 6-8 for detention clamping device Body · p363

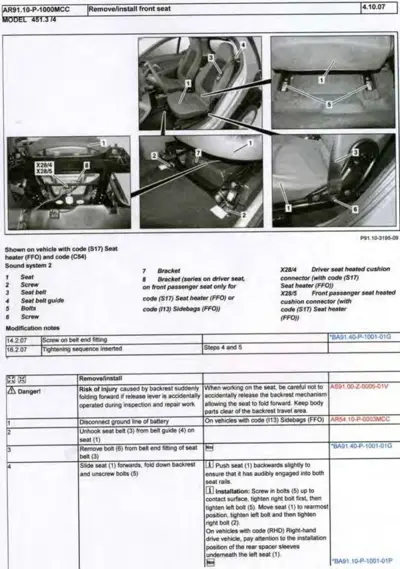

Service manual page showing front seat removal steps with six detailed photographs and numbered callouts.

450Location callout Front seat removal and installation procedure for smart Interior trim · p373

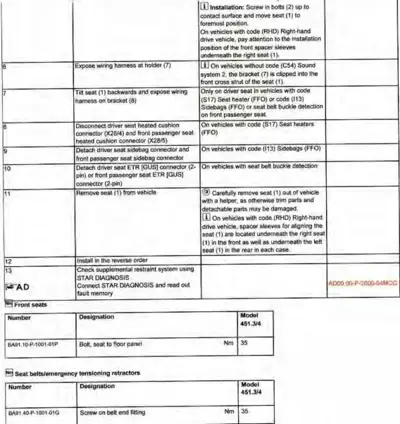

Service procedure table showing numbered steps 6-13 for front seat removal and torque specifications.

450Location callout Front seat removal and installation procedure with Interior trim · p374

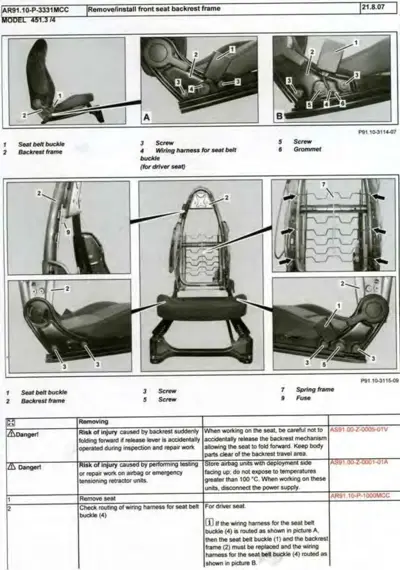

Service manual page showing disassembly steps for smart fortwo front seat backrest frame with multiple detailed close-up photographs and numbered components.

450Location callout Front seat backrest frame removal/installation procedure Interior trim · p375

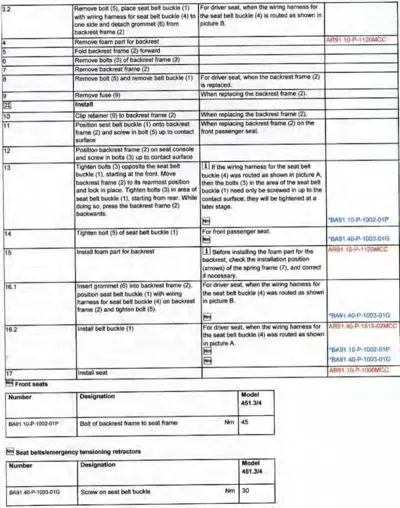

Service procedure table showing numbered steps 3-17 for seat backrest removal and installation with part numbers and torque values.

450Torque table Front seat backrest frame removal and installation Interior trim · p376

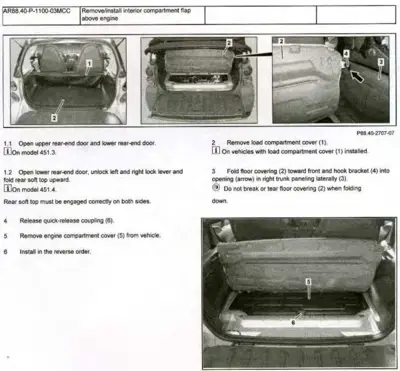

Four numbered photos showing engine compartment cover removal steps with callouts for lock levers, floor covering, and coupling.

450Location callout Remove/install interior compartment flap above engine Cabrio roof · p378

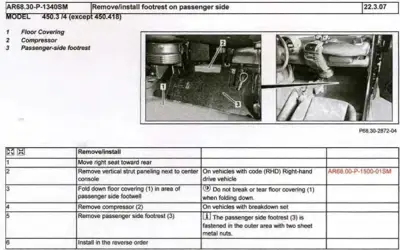

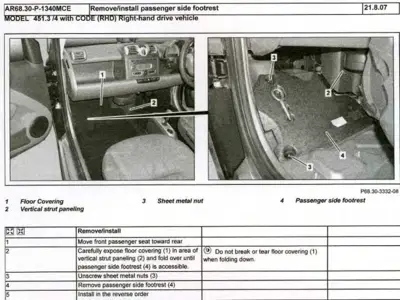

Two photos showing passenger footrest location and removal steps with numbered callouts 1-4, plus service procedure table.

450Location callout Passenger side footrest removal/installation procedure for Interior trim · p382

Two photos showing footrest removal steps with numbered callouts and parts list for Smart ForTwo 451.

450Location callout Passenger-side footrest removal and installation procedure Interior trim · p383

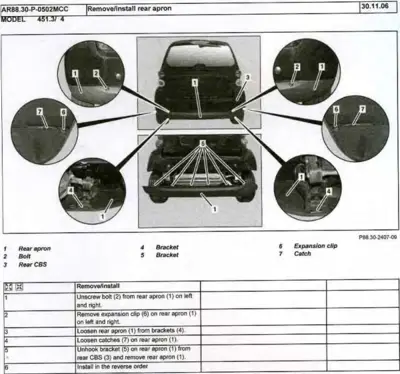

Rear view of smart car showing rear apron fasteners, brackets, and expansion clips with numbered detail callouts.

450Location callout Rear apron removal/installation points and fasteners on Body · p384

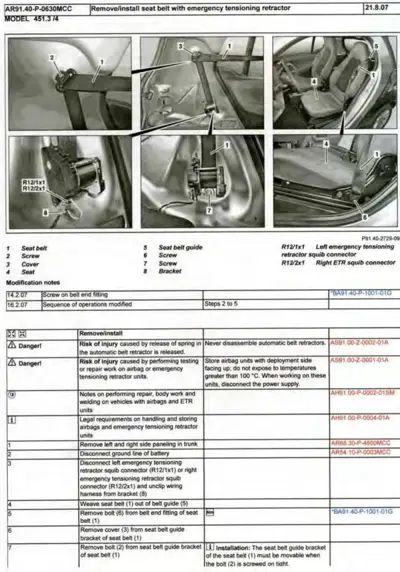

Six photos showing seat belt components and emergency tensioning retractor removal steps with numbered callouts.

450Location callout Seat belt removal and installation procedure with emergency Interior trim · p387

Service manual page with seat belt removal steps, STAR diagnostics check procedure, and torque spec table for three seat belt fasteners.

450Torque table Seat belt removal procedure and torque specifications for Body & Interior · p388

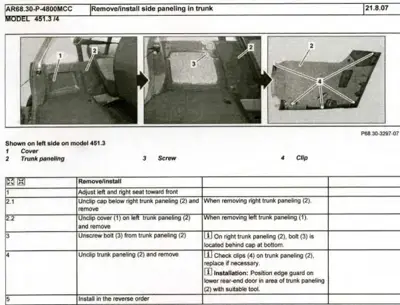

Three photos showing trunk paneling removal steps with numbered components and instruction table.

450Location callout Trunk side paneling removal and installation procedure for Interior trim · p389

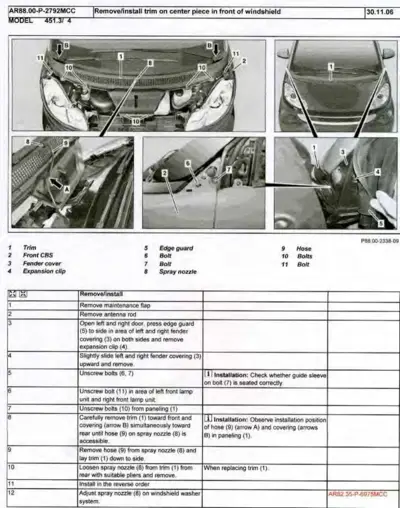

Technical diagram showing windshield trim removal procedure with 11 numbered callouts and step-by-step instructions.

450Location callout Remove/install trim on center piece in front of windshield Interior trim · p390

Exploded view of windshield washer nozzle assembly with numbered callouts and removal steps.

450Location callout Windshield washer nozzle removal and installation procedure Glass · p394

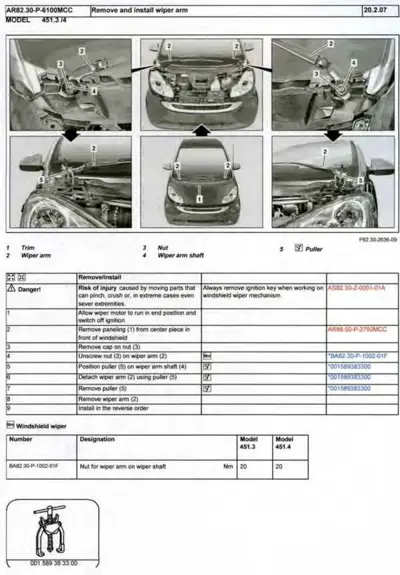

Service manual page showing six views of windshield wiper arm removal from Smart fortwo, with numbered callouts and procedural table.

450Location callout Windshield wiper arm removal and installation procedure for Body · p395

Service instruction for adjusting rear washer nozzle on Smart 451.3 model

450 Rear windshield washer nozzle adjustment procedure for Glass · p407

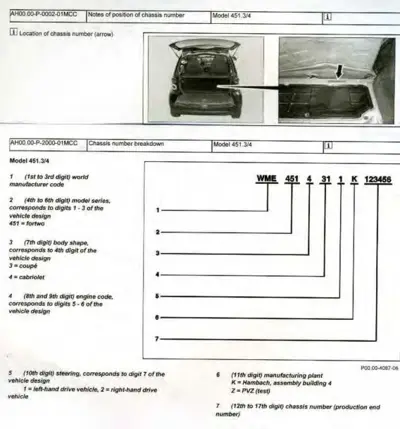

Smart 451 chassis number location diagram showing vehicle identification number breakdown by digit position.

450Location callout Chassis number location and breakdown for smart fortwo Body · p409

Technical drawing of emergency door unlock hook with dimensions and two views showing spring steel construction.

450Exploded view Emergency unlocking hook for rear door on model 451.3, with Doors · p417

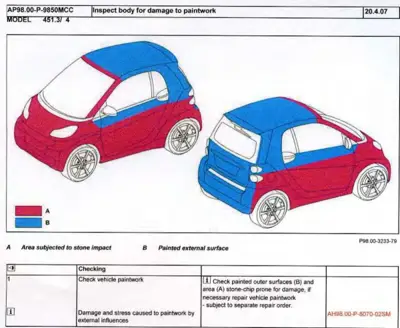

Two isometric views of smart fortwo showing stone-impact prone areas in red and painted surfaces in blue.

450 Inspect body for damage to paintwork on 451 fortwo Body · p418

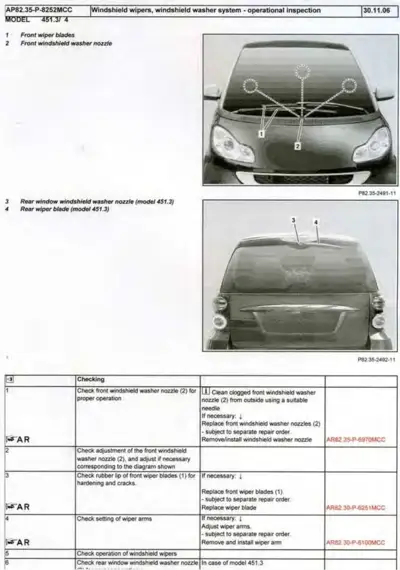

Technical inspection guide for windshield wipers and washer nozzles on smart 451 chassis with numbered callouts and service procedures.

450Location callout Windshield wipers and washer system operational inspection Glass · p419

Service table showing rear washer nozzle adjustment and wiper blade inspection steps

450Location callout Rear window washer nozzle and wiper blade inspection Glass · p420

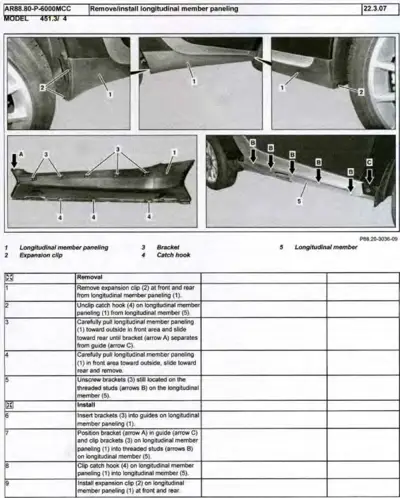

Service manual page showing longitudinal member paneling removal steps with numbered callouts and installation sequence.

450Location callout Longitudinal member paneling removal and installation Body · p424

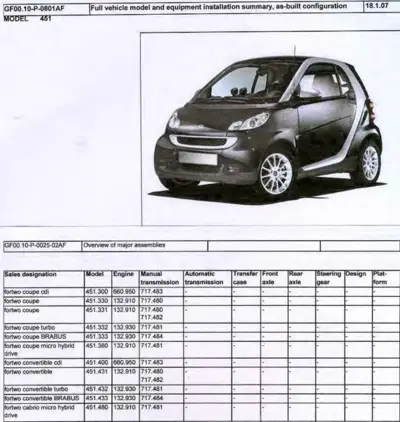

Smart fortwo 451 chassis overview photo and equipment specification table showing engine, transmission, and component codes.

450Exploded view Smart fortwo 451 full vehicle model and equipment Interior trim · p427

Wiper blade replacement diagram showing front view of car windshield and close-up of blade attachment points with labeled arrows.

450Location callout Front wiper blade removal and installation procedure for Body · p436

Service indicator reset instructions with instrument cluster photo and step-by-step procedure table.

450Location callout Reset service indicator procedure using instrument cluster Interior trim · p437

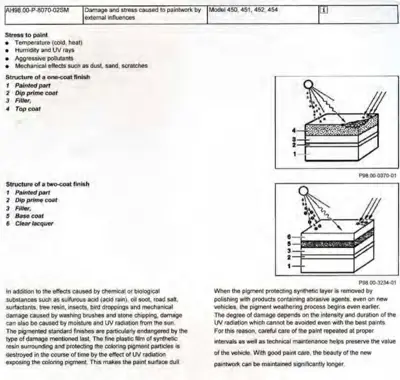

Cross-section diagrams showing paint layer composition and external damage factors like temperature and UV rays.

450 Paintwork damage from external stressors: one-coat and Interior trim · p442

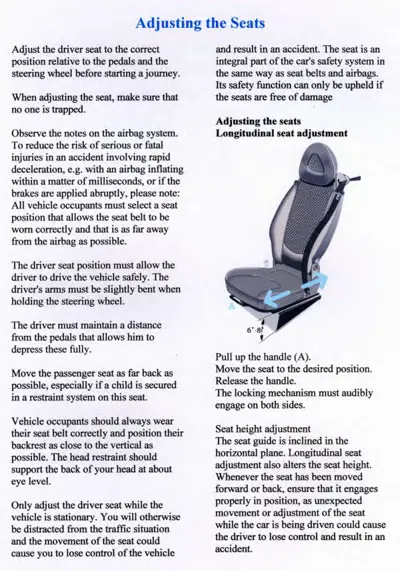

Manual page showing seat adjustment instructions with diagram of seat moved forward, measurement range 6-8 inches, and safety warnings.

450 Seat adjustment procedures for driver position and Interior trim · p444

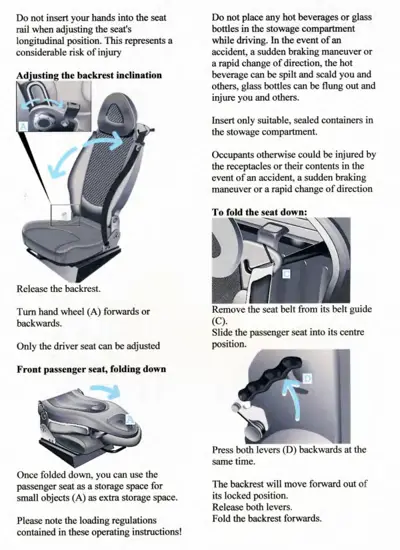

Instruction diagrams for adjusting and folding down the front passenger seat with hand wheel controls and lever operations.

450 Front passenger seat adjustment and folding procedures Interior trim · p445

Text instructions for folding back seat backrest and safety warnings about luggage storage

450 Passenger backrest folding and unfolding instructions with Interior trim · p446

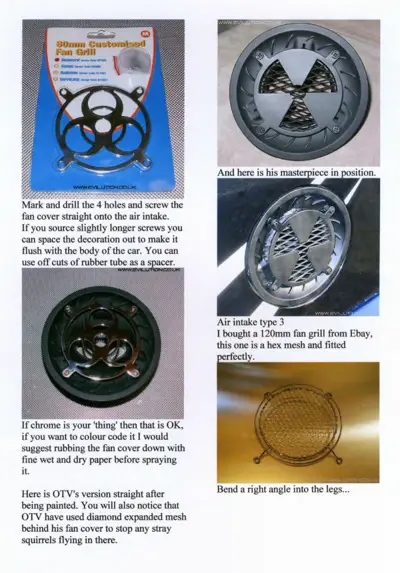

Fan grill product packaging and installation photos showing drilling, positioning, and design options.

450 80mm customised fan grill installation instructions and Body · p453

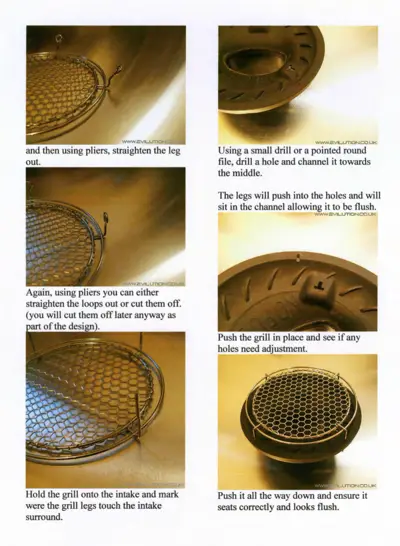

Step-by-step photos showing air intake grille modification and installation process on smart fortwo.

450 Air intake grille installation procedure: straighten legs Body · p454

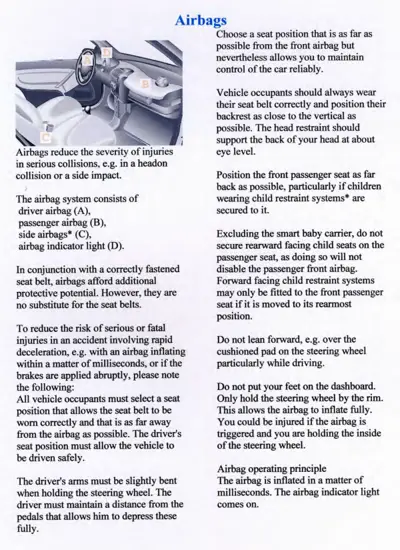

Interior diagram showing airbag locations A, B, C, D with safety instructions text

450 Airbag system safety information and positioning guidelines Body · p456

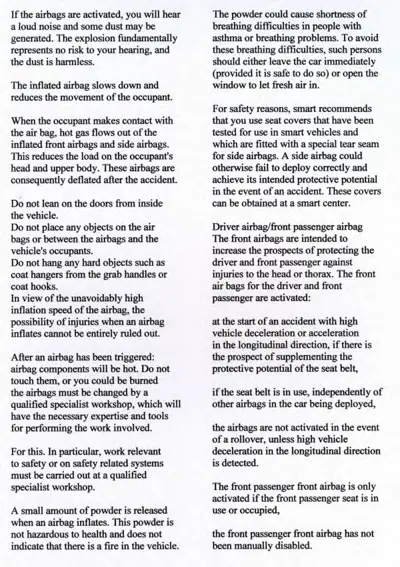

Text page describing airbag activation, safety warnings, and maintenance procedures.

450 Airbag system operation, deployment conditions, and safety Body · p457

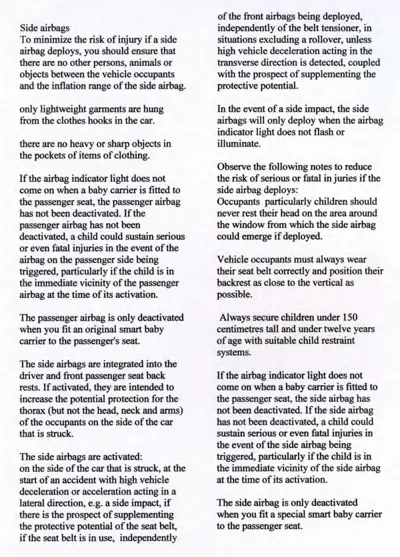

Text page explaining side airbag operation, safety precautions, and deactivation procedures.

450 Side airbag safety warnings and deployment conditions for Interior trim · p458

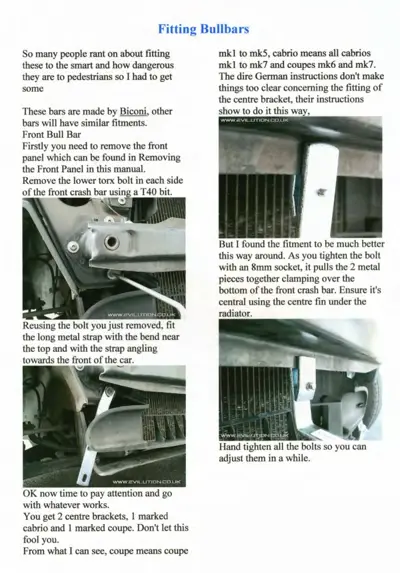

Step-by-step photos showing front bull bar mounting bracket attachment to crash bar with bolts and metal straps.

450 Front bull bar installation procedure for Smart Fortwo Interior trim · p538

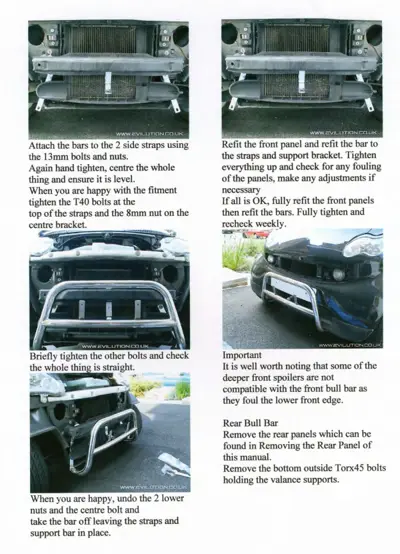

Installation steps for front and rear bull bars with photos of radiator assembly, mounting brackets, and finished installation.

450Location callout Front and rear bull bar installation procedure with Body · p539

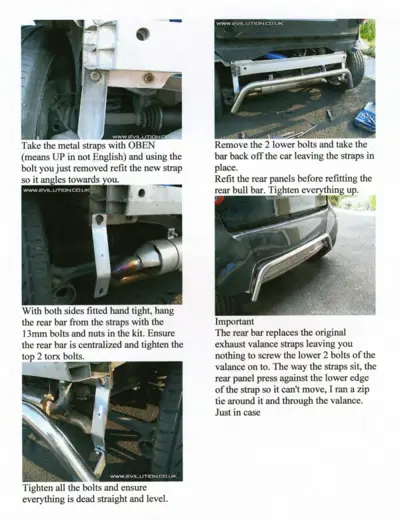

Five photographs demonstrating rear bumper bar installation with metal straps, bolts, and final tightening procedures.

450Location callout Rear bull bar installation procedure for Smart Fortwo Body · p540

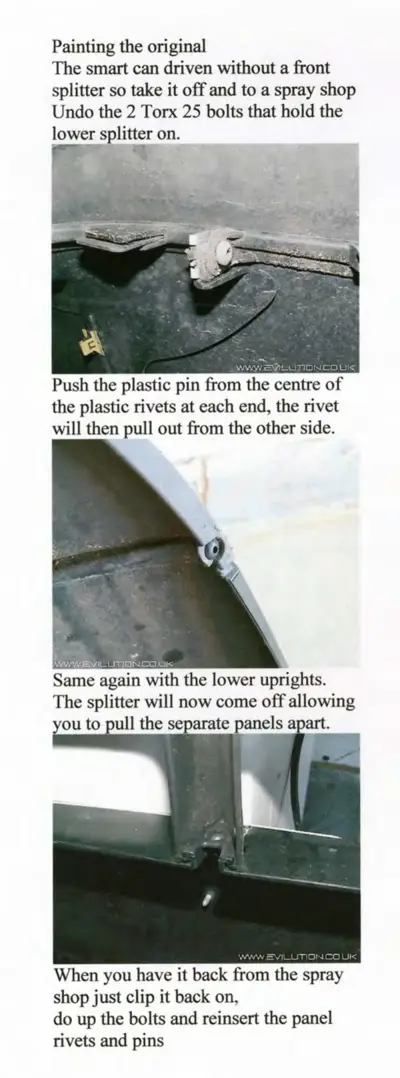

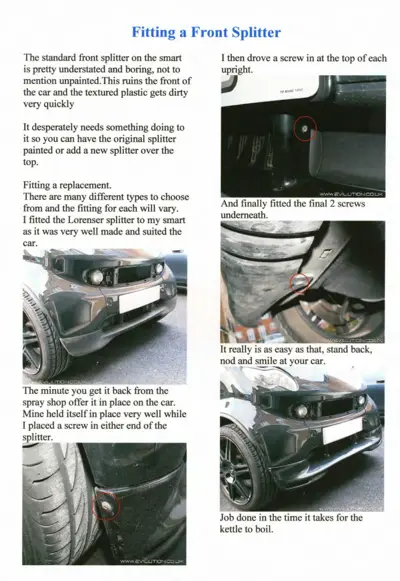

Service manual page showing how to install a front splitter on smart fortwo with screw locations highlighted.

450 Front splitter fitting procedure with screw placement Interior trim · p544

Service procedure photos showing front splitter detachment steps using Torx wrench and plastic rivet removal technique.

450 Front splitter removal and reinstallation procedure for Interior trim · p545

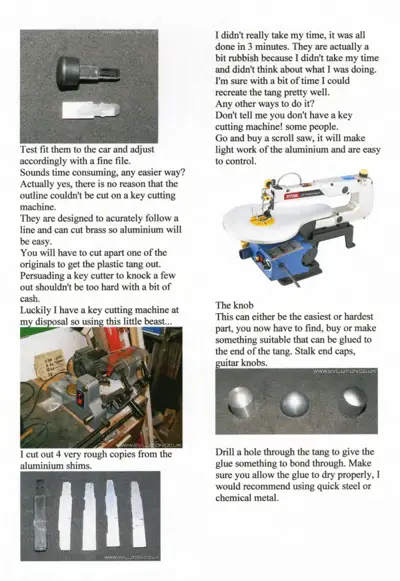

Key cutting and fabrication steps showing blank, scroll saw, shims, and knob options

450 Custom key blank fabrication procedure using scroll saw Body · p560

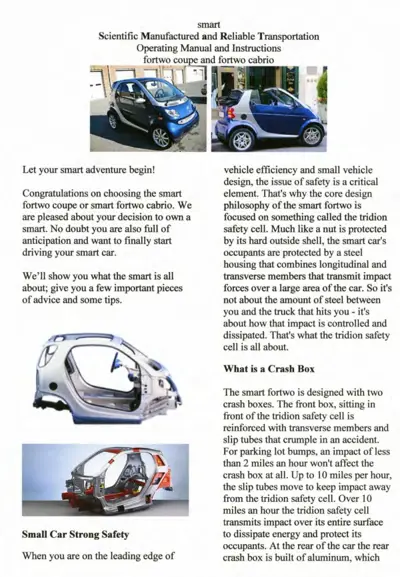

Title page with two smart car photos, tridion safety cell diagram, and crash box structure explanation text.

450 Smart fortwo coupe and cabrio operating manual introduction Body · p573

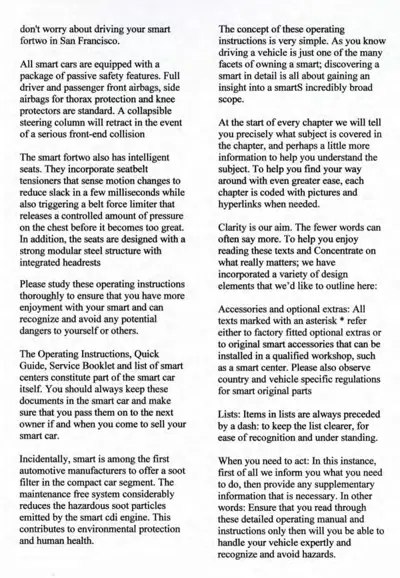

Text page explaining smart car safety features and manual organization structure.

450 Introduction to smart fortwo owner's manual covering safety Interior trim · p575

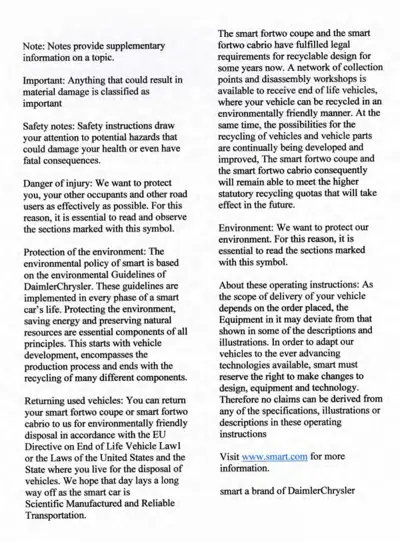

Text page with explanatory notes about manual usage, safety, environment, and vehicle disposal procedures.

450 Manual introduction page explaining notes, safety Body · p576

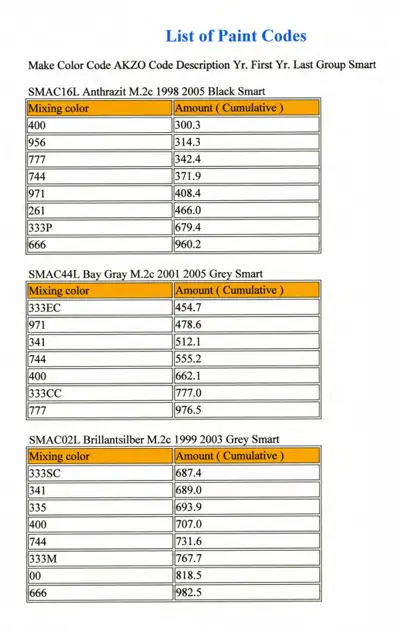

Table listing paint codes and mixing color ratios for Anthrazit Black, Bay Gray, and Brillantsilber finishes.

450 Paint mixing color codes and cumulative amounts for three Interior trim · p615

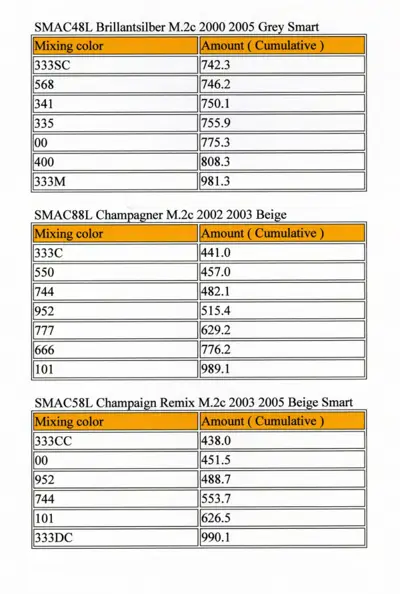

Three tables showing paint color mixing codes and cumulative amounts for different Smart chassis variants.

450 Paint mixing color codes and cumulative amounts for Smart Interior trim · p616

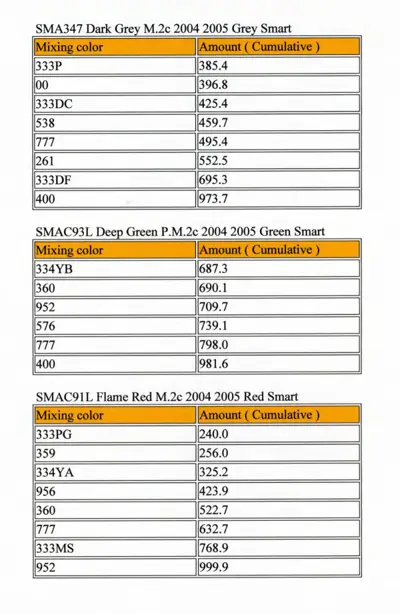

Three color mixing tables with paint codes and cumulative amounts for grey, green, and red Smart vehicles.

450 Paint mixing color codes and cumulative amounts for Dark Interior trim · p617

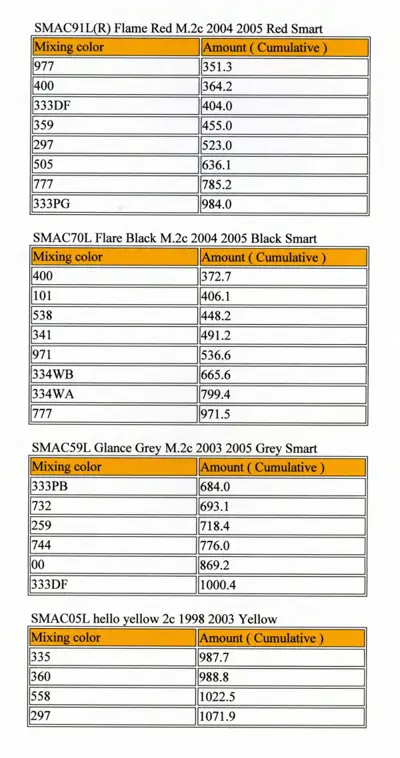

Four paint color mixing tables with color codes and cumulative amounts for Smart vehicles.

450 Paint mixing color formulations for Smart fortwo Flame Red Interior trim · p618

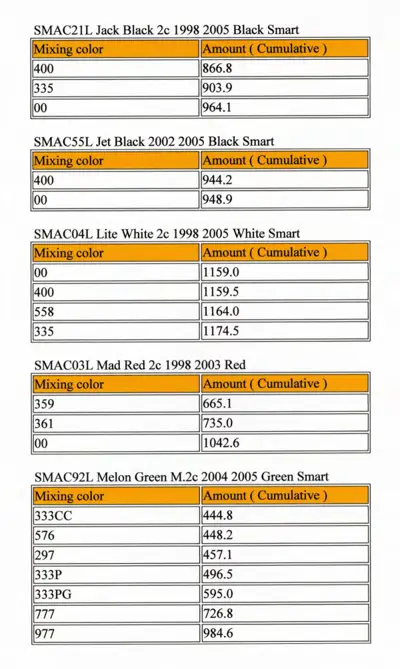

Five tables showing paint color codes and amounts for different Smart fortwo colors.

450 Paint mixing color codes and cumulative amounts for Smart Interior trim · p619

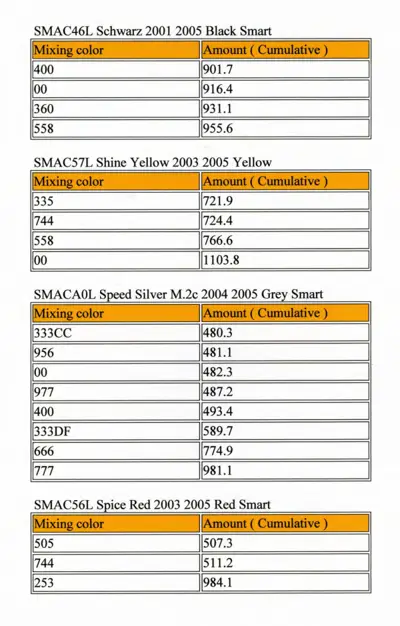

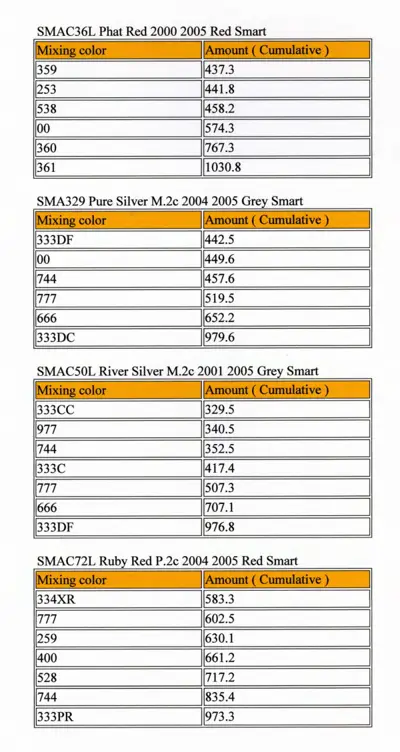

Four tables listing paint color codes and cumulative mixing amounts for Smart vehicles

450 Paint mixing color codes and cumulative amounts for Smart Interior trim · p620

Four tables showing paint color codes with mixing color numbers and cumulative amounts for different Smart models.

450 Paint mixing color codes and cumulative amounts for Smart Interior trim · p621

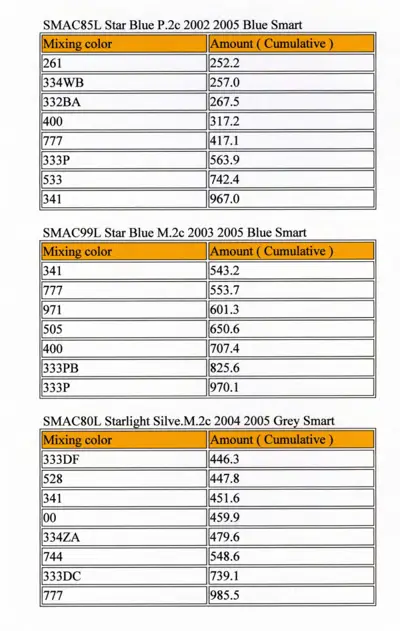

Three tables showing paint color codes with cumulative mixing amounts for blue and grey Smart models 2002-2005.

450 Paint mixing color codes and cumulative amounts for Smart Interior trim · p622

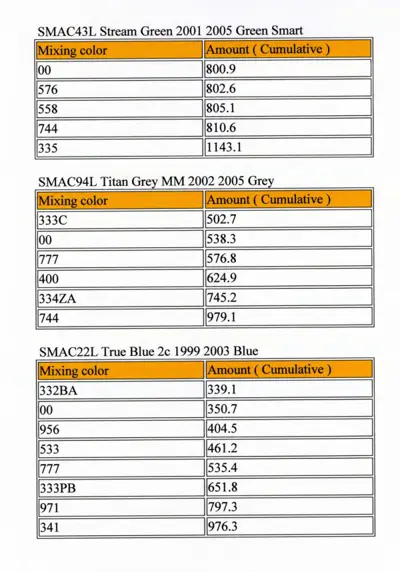

Three paint color mixing tables with codes and cumulative amounts for Smart fortwo.

450 Paint mixing color formulas for Smart fortwo models Interior trim · p623

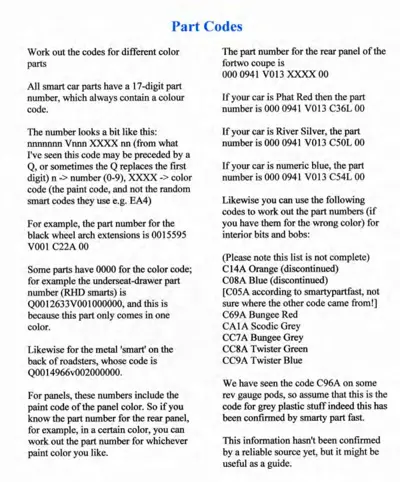

Text page explaining how to decode Smart car part numbers using color codes for different components.

450 Part codes guide for Smart cars showing 17-digit part Interior trim · p624

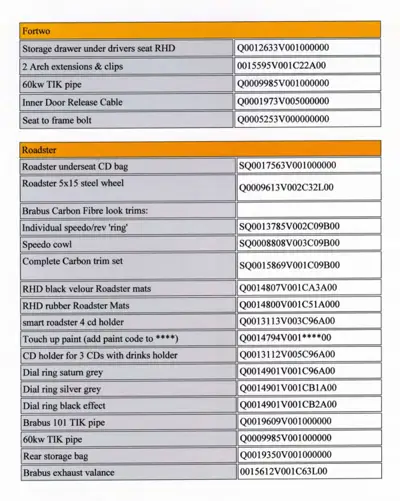

Parts list table showing Fortwo and Roadster components with corresponding part numbers

450 Parts catalog listing for Fortwo and Roadster interior Interior trim · p626

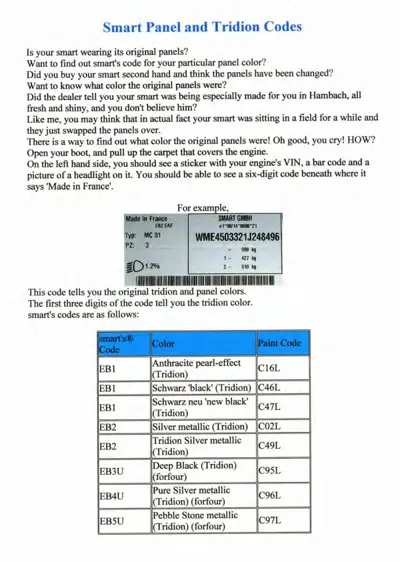

Reference page showing how to identify original Smart panel colors using VIN sticker codes and paint color table.

450Schematic Smart panel and Tridion color codes reference guide with Interior trim · p627

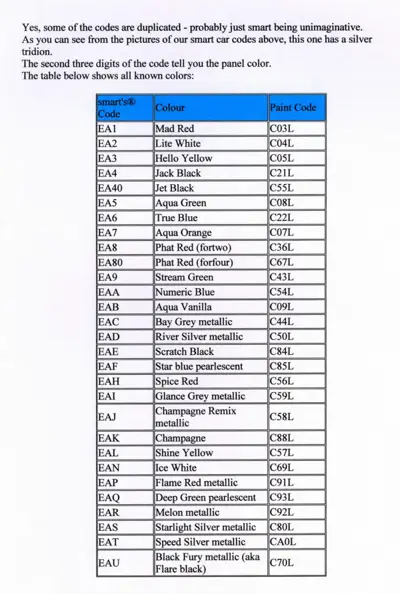

Reference table listing Smart color codes (EA1-EAU) with corresponding color names and paint codes

450 Smart paint color codes and names reference table, second Interior trim · p628

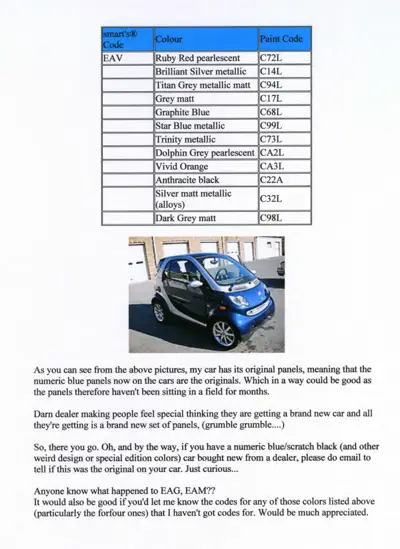

Table listing Smart paint colors with codes; photo of blue and black Smart car below.

450 Smart fortwo EAV paint color codes and reference chart with Interior trim · p629

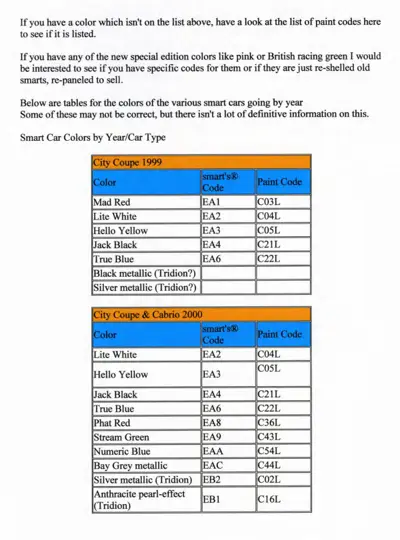

Paint color reference tables for 1999 and 2000 smart City Coupe showing color names, smart codes, and paint codes

450 Smart car paint color codes and names for City Coupe 1999 Interior trim · p630

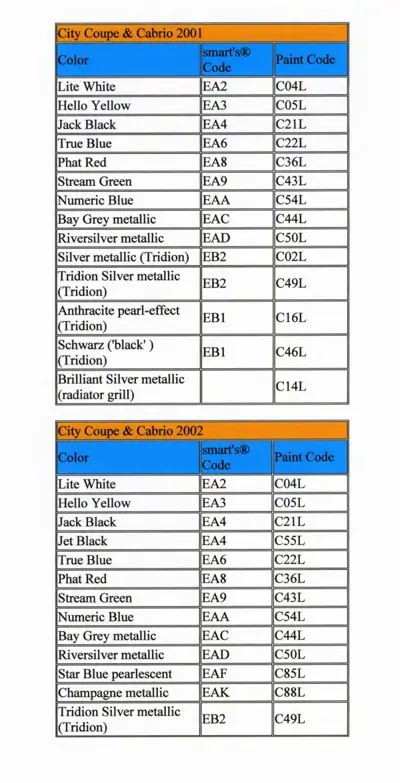

Two color code tables for 2001 and 2002 smart City Coupe and Cabrio models listing color names, smart codes, and paint codes.

450 Paint color codes for smart City Coupe and Cabrio 2001 and Interior trim · p631

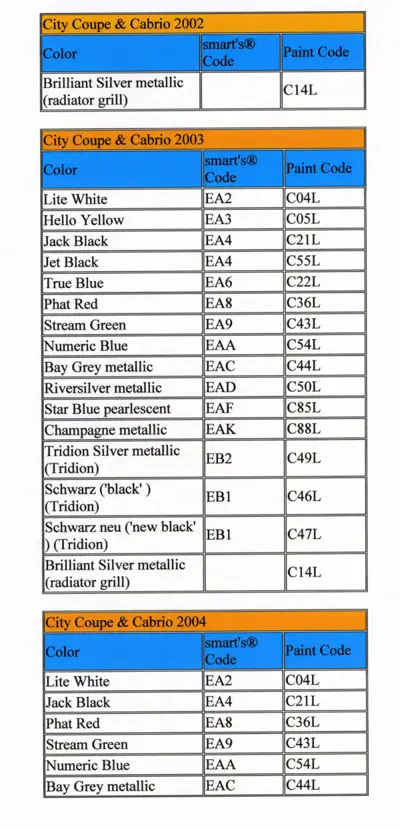

Paint color reference table showing color names, smart codes, and paint codes for 2002-2004 smart vehicles

450 Factory paint color codes for smart City Coupe and Cabrio Interior trim · p632

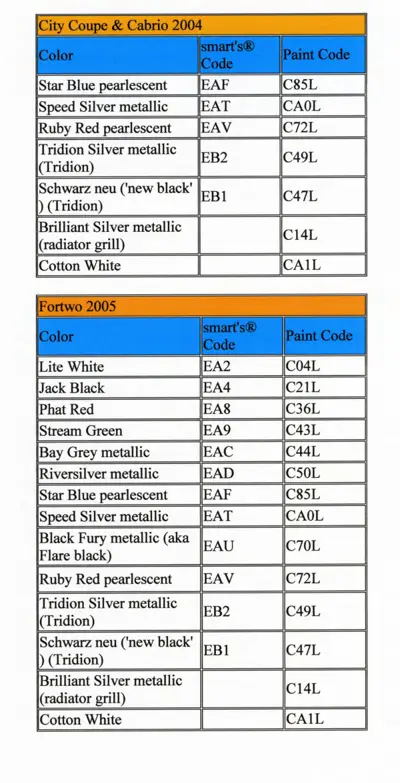

Color reference tables listing paint names, smart's codes, and paint codes for 2004-2005 smart vehicles.

450 Paint color codes and smart's® codes for City Coupe & Interior trim · p633

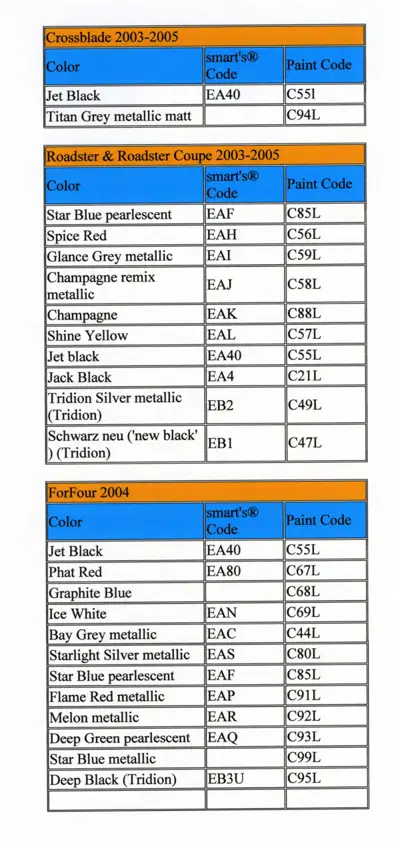

Reference table listing paint colors, smart codes, and paint codes for smart models 2003-2005.

450 Paint color codes and smart's® codes for Crossblade Interior trim · p634

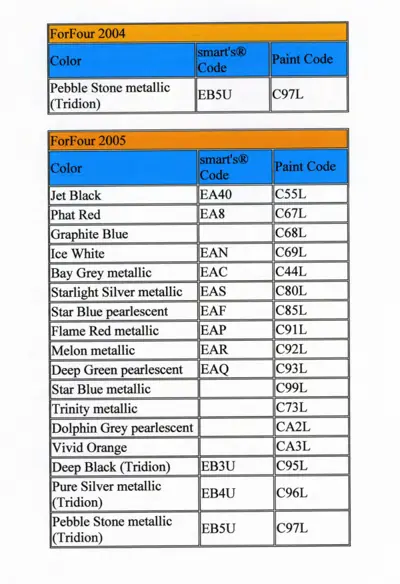

Two reference tables listing paint colors with corresponding smart codes and paint codes for ForFour 2004 and 2005 models.

450 Smart ForFour 2004–2005 paint color codes and smart's® Interior trim · p635

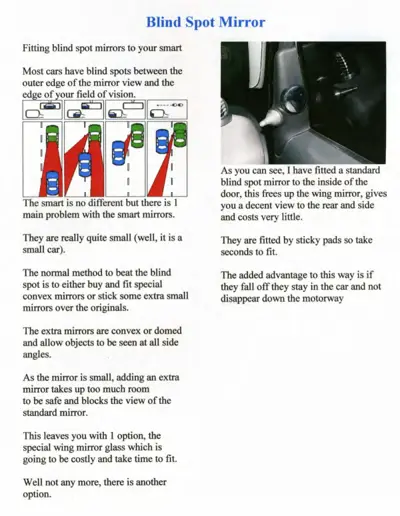

Blind spot mirror fitting instructions with diagrams and photograph of mirror mounted inside car door.

450 Blind spot mirror installation guide for Smart car, showing Glass · p636

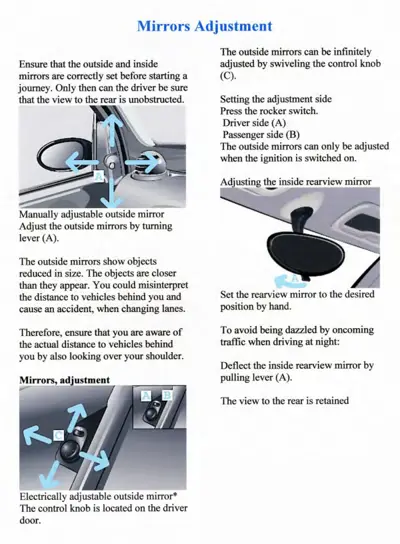

Instruction page showing how to adjust side mirrors and rearview mirror with photos and text directions.

450 Mirrors adjustment procedures for outside and inside Glass · p637

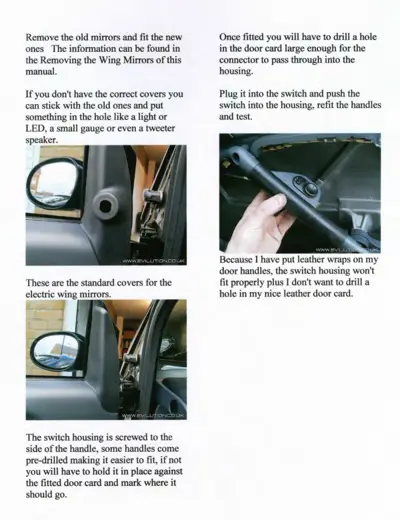

Service manual page showing mirror removal steps and switch housing installation on door handle.

450 Electric wing mirror removal and installation procedure Doors · p642

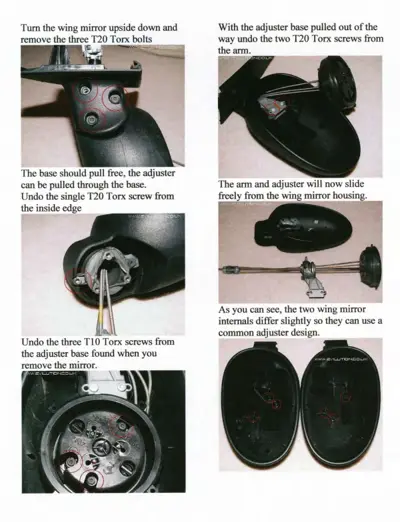

Step-by-step photos of wing mirror disassembly with Torx bolt locations and adjuster mechanism removal.

450Location callout Wing mirror disassembly procedure showing removal of Torx Glass · p644

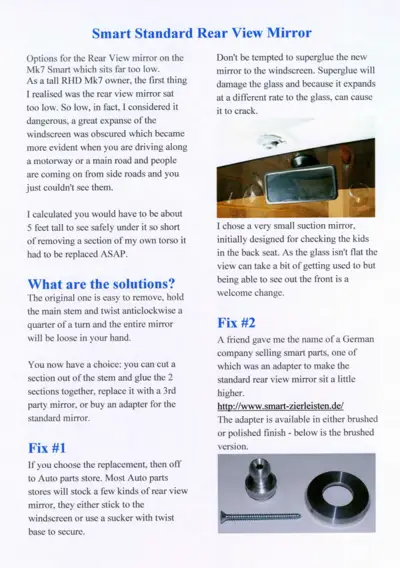

Document page showing rear view mirror adjustment options and aftermarket adapter parts for Smart cars.

450 Smart Standard rear view mirror options and installation Glass · p647

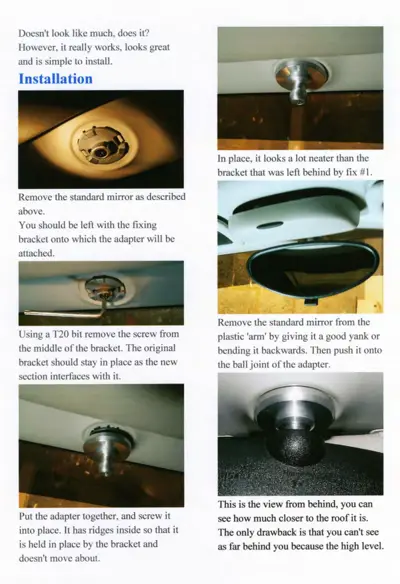

Six step-by-step photos showing how to install an interior mirror adapter on a Smart car roof.

450 Interior mirror adapter installation procedure for Smart Glass · p648

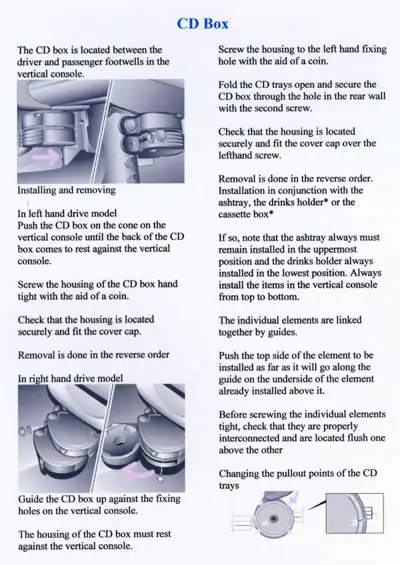

CD box mounting location and installation steps for Smart fortwo dashboard console

450 CD box installation and removal procedure in vertical Interior trim · p661

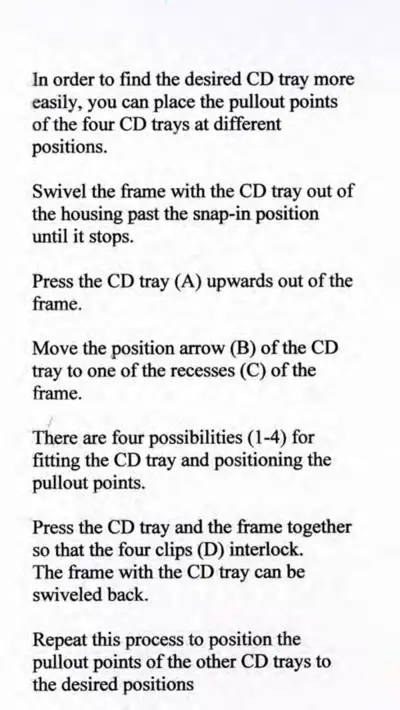

Text instructions for positioning CD trays using pullout points and frame recesses.

450 CD tray positioning procedure with labeled components A Interior trim · p662

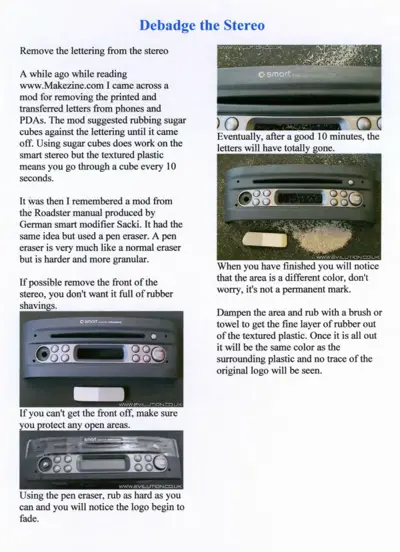

450 Smart stereo debadging procedure using pen eraser to remove Interior trim · p663

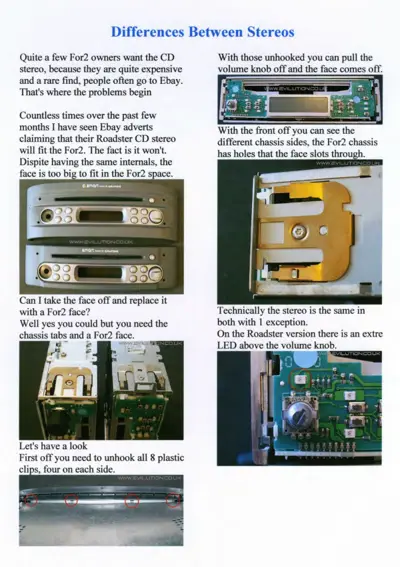

Comparison images of Roadster and For2 stereo units, chassis brackets, and plastic clip locations for removal.

450 Smart Car CD stereo compatibility differences between Interior trim · p664

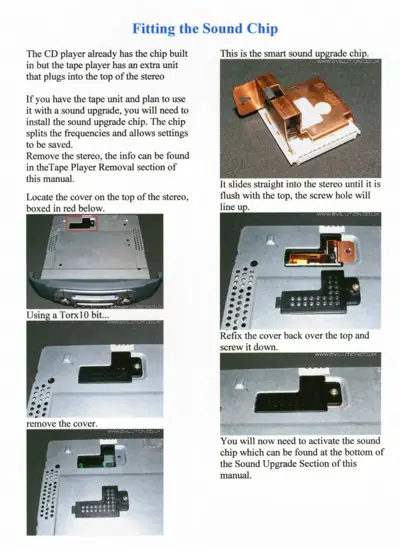

Service manual page showing sound chip installation steps with photographs of stereo unit and chip placement.

450 Sound chip installation procedure for smart fortwo stereo Interior trim · p665

CD changer device installed below passenger seat

450 Smart CD changer unit mounted underneath passenger seat in Interior trim · p667

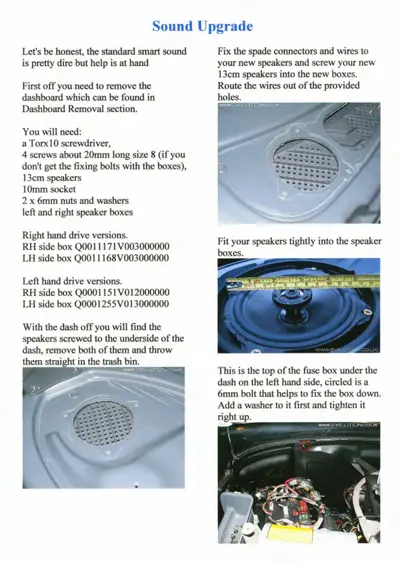

Sound upgrade instructions with photos of dashboard speaker grilles, speaker installation, and engine bay fuse box bolt location.

450 Sound upgrade installation guide for smart fortwo showing Interior trim · p674

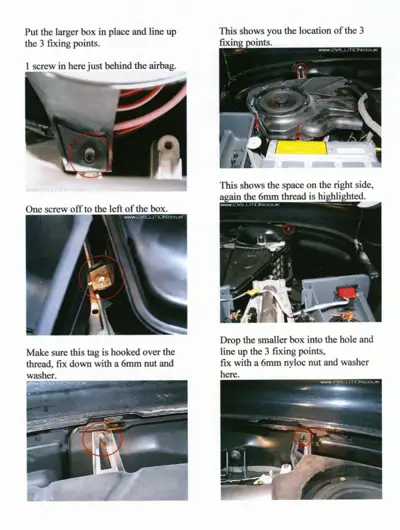

Six photos showing screw locations and mounting points for engine bay component installation with red circled callouts.

450Location callout Installation procedure for larger box with three fixing Body · p675

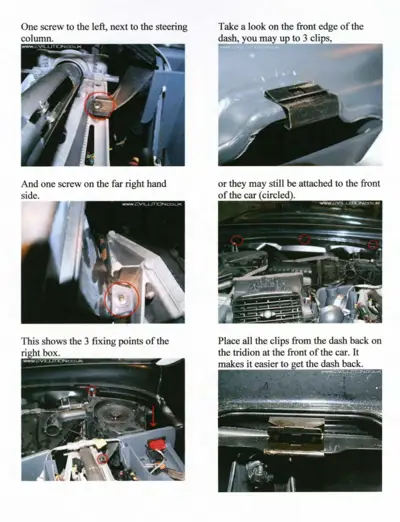

Four photos showing dashboard fastener locations and removal steps for Smart fortwo

450Location callout Dashboard removal procedure showing screw and clip Body · p676

Browse all 1,199 →
