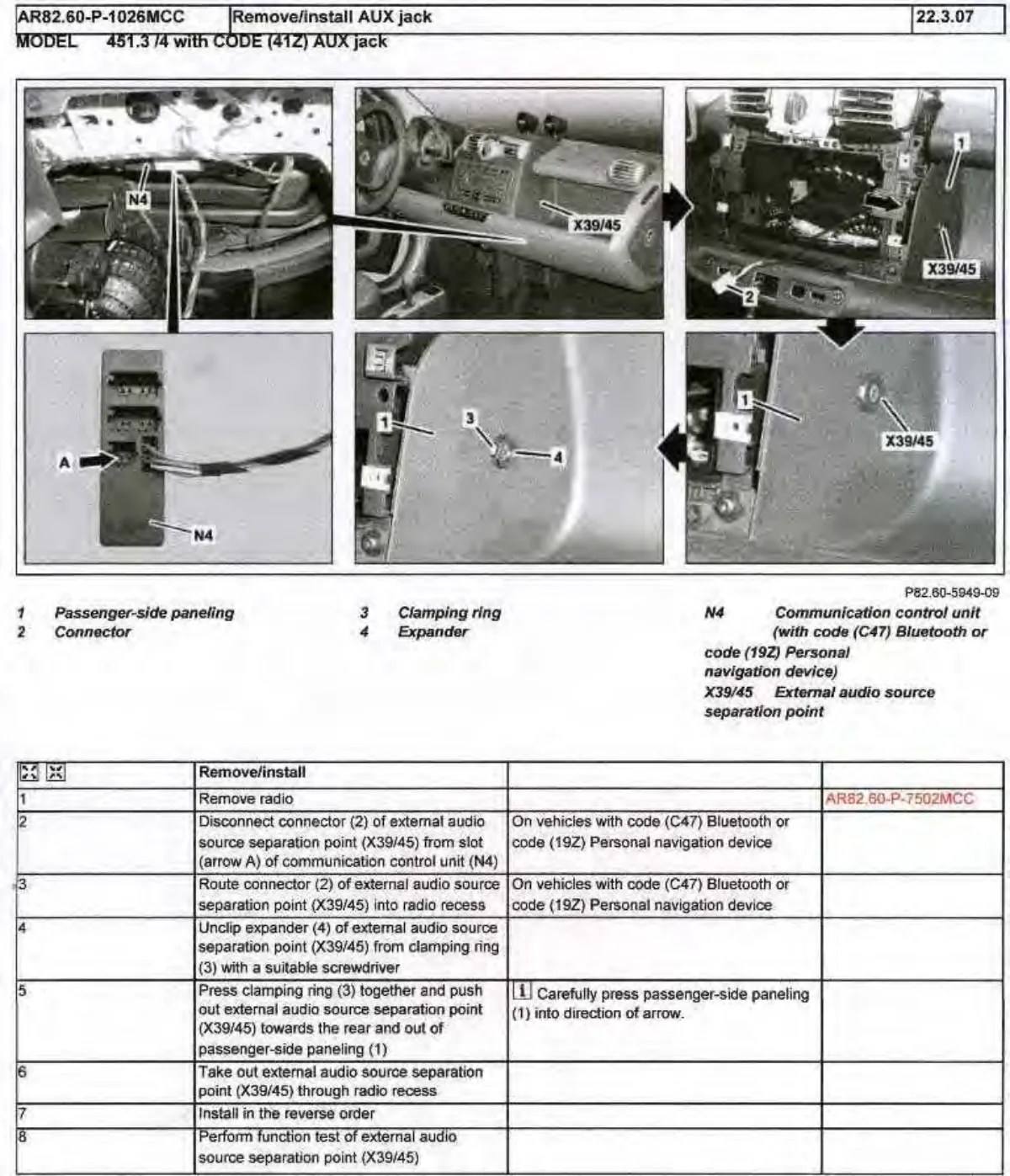

Remove and install auxiliary jack on 451 chassis with code 412Z, showing passenger-side paneling, connector, and external audio source separation point locations.

Six photos showing auxiliary jack removal steps, passenger paneling, connectors, clamping ring, and expander on smart fortwo 451.

View full-size image ↗

See all Body & Interior figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
