Roof bonding area and body flange identification with painting preparation steps for Smart cabrio roof repair.

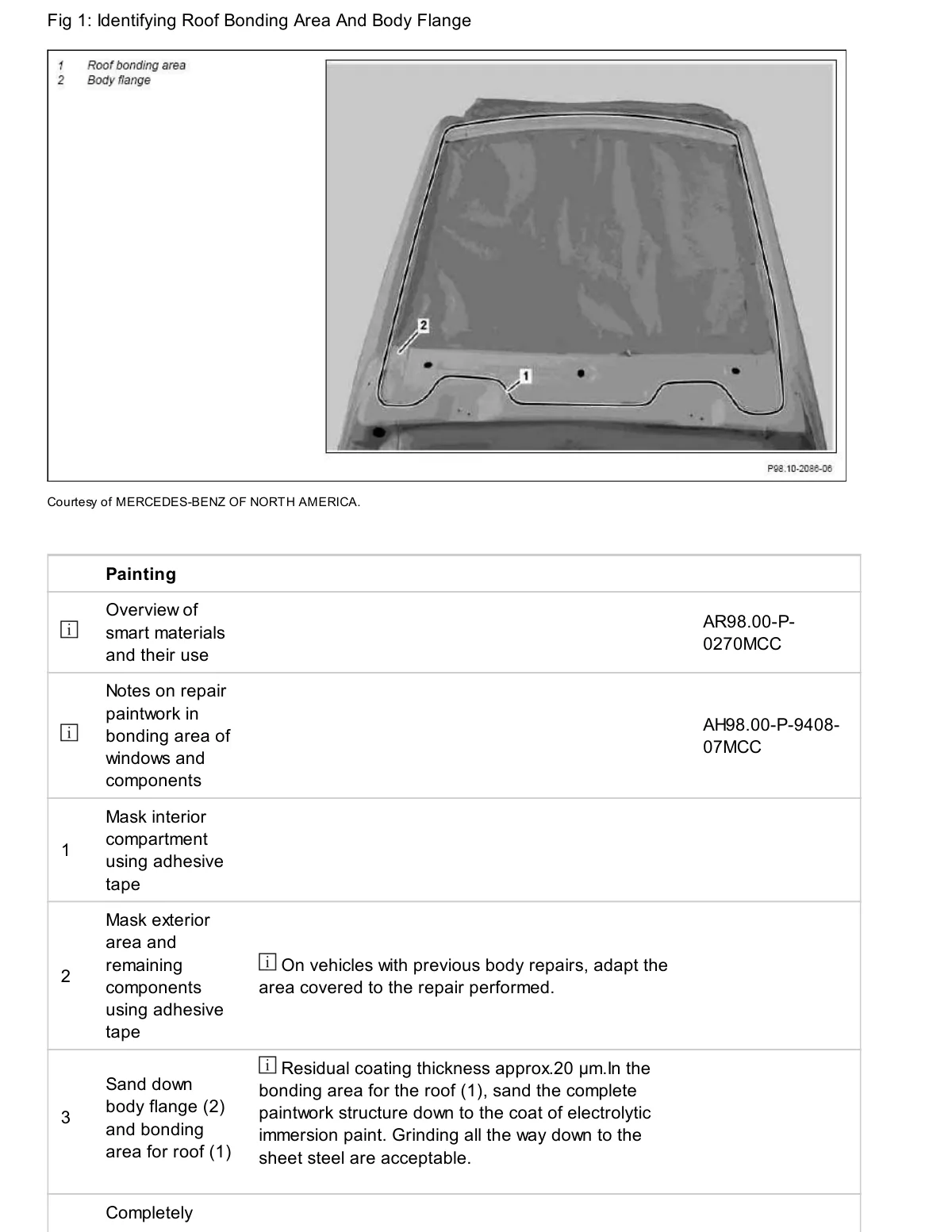

Top-down view of Smart roof showing bonding area and body flange with numbered callouts and painting procedure table.
