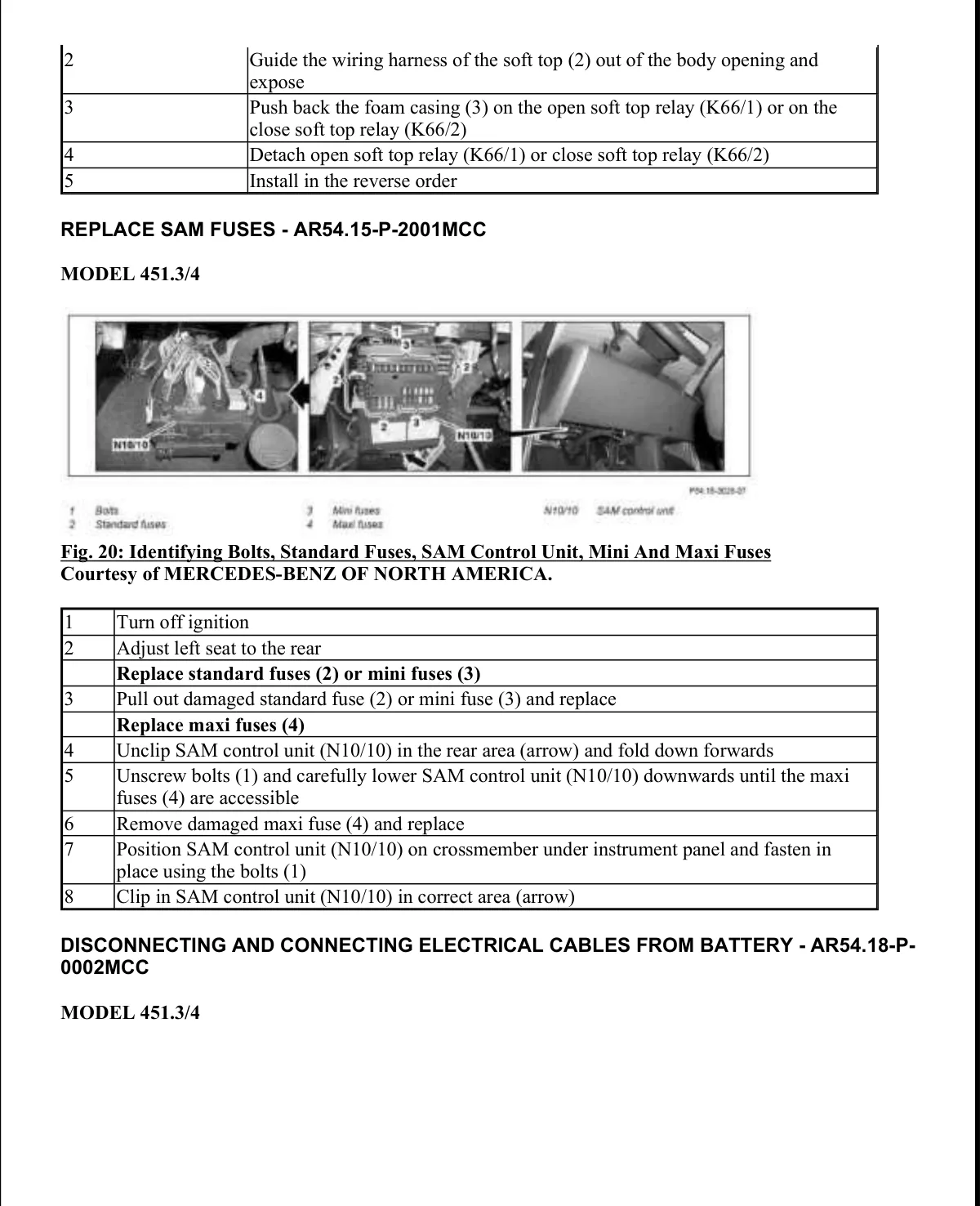

SAM fuses replacement procedure and battery cable disconnection steps for Smart Fortwo 451 cabrio roof relay systems.

Technical service procedures showing soft top relay access, SAM fuse box locations, and battery cable disconnection.

View full-size image ↗

See all Electrical figures for the Fortwo (451), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
