Battery components identification and removal/installation procedures for Smart Fortwo 451 chassis with part numbers.

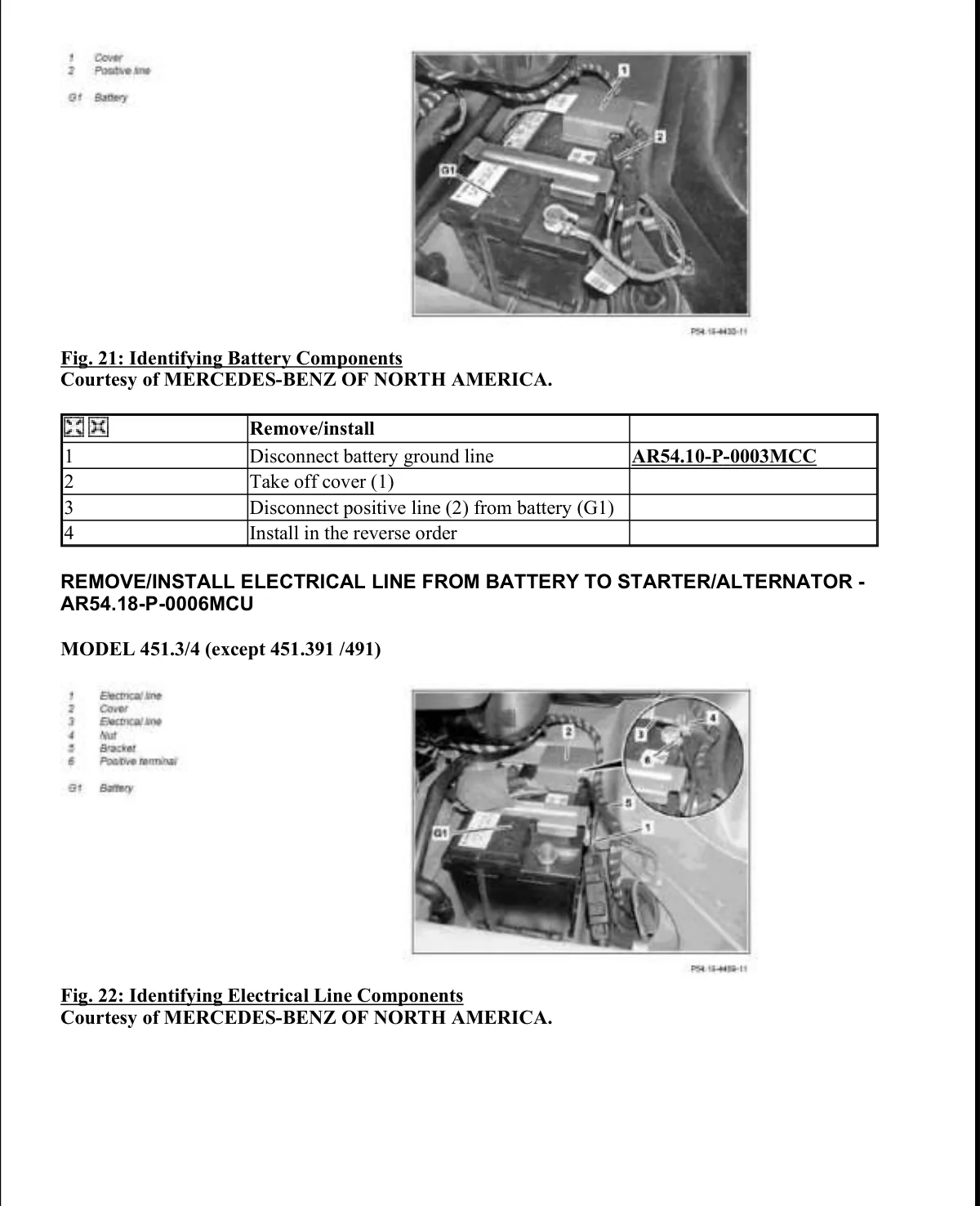

Two technical diagrams showing battery location and electrical line connections with numbered callouts.
