High-voltage battery charging procedure with socket components, indicator lamp status, and charging station activation methods for smart forfour 453 EV.

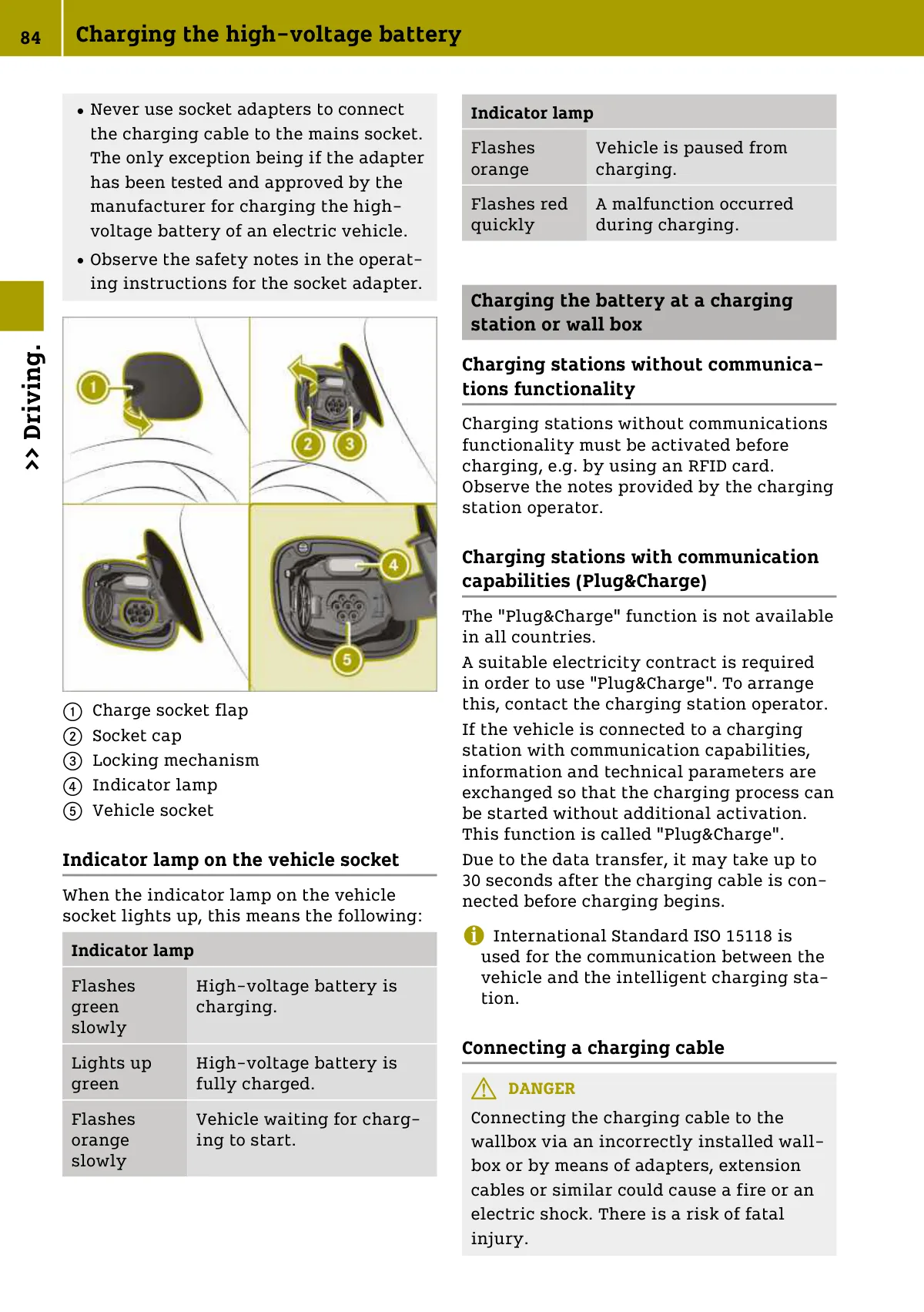

EV charging socket assembly with numbered callouts and indicator lamp color meanings for charging status.
