High-voltage battery charging procedure for smart forfour 453, including socket flap, cap, locking mechanism, indicator lamp, and vehicle socket.

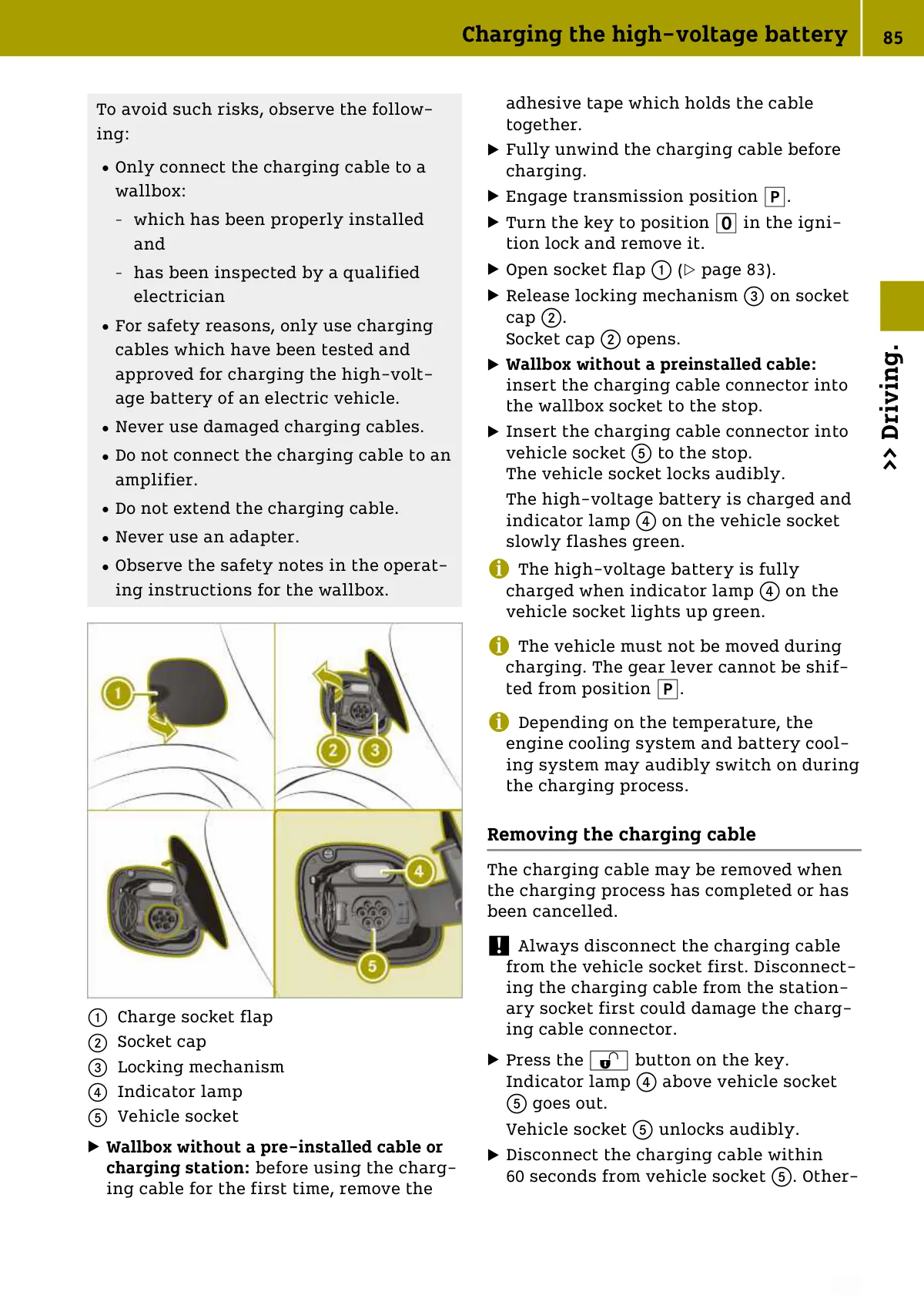

Charging cable connection steps with numbered callouts showing socket flap, cap, locking mechanism, indicator lamp, and vehicle socket.
