Heat exchanger removal/installation procedure for Smart Fortwo 451, with component identification and step-by-step instructions for fresh-air intake and coolant hose removal.

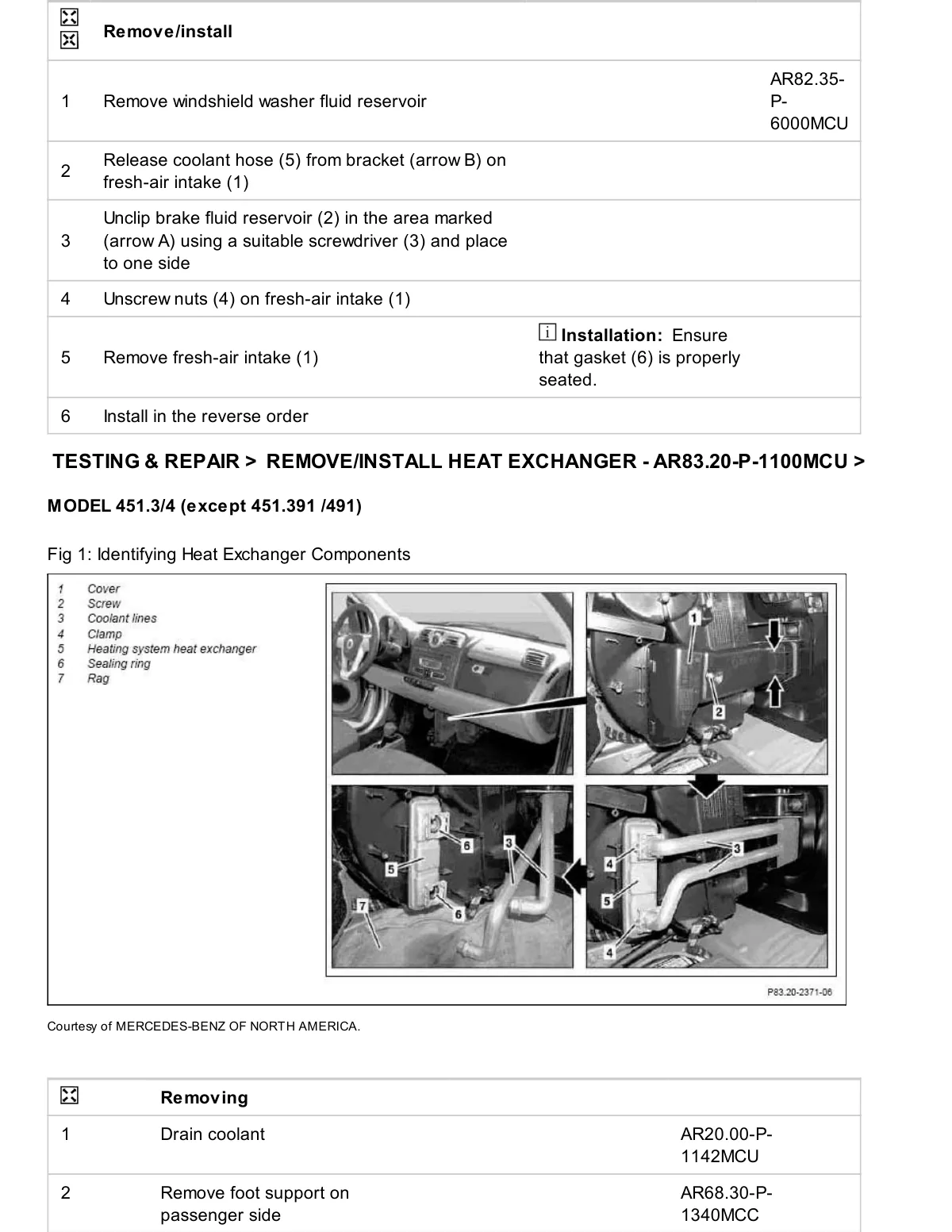

Heat exchanger components diagram and removal steps for Smart model 451, showing intake, coolant lines, and numbered callouts.
