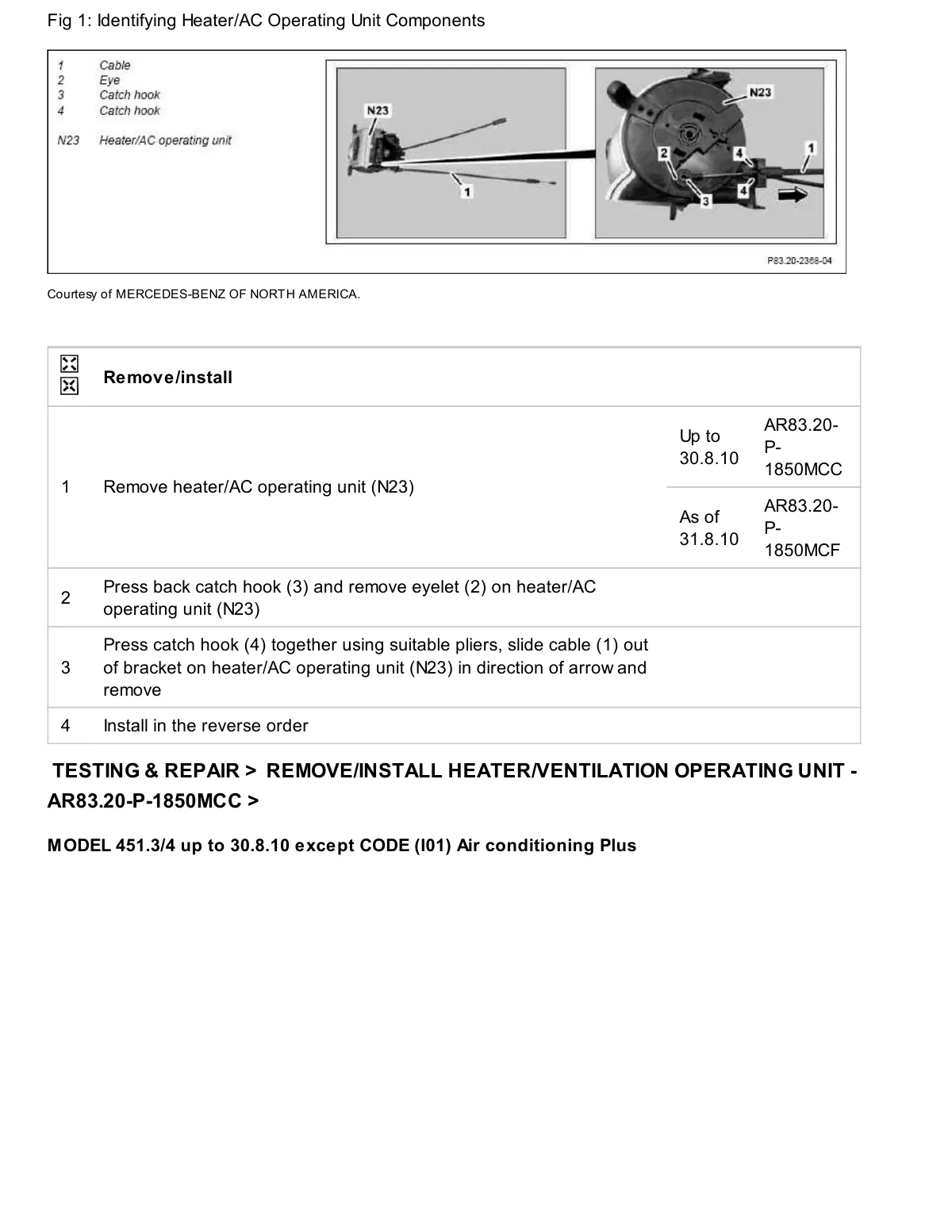

Heater/AC operating unit (N23) components and removal procedure for chassis 451 fortwo up to 30.8.10.

Diagram showing heater/AC unit N23 with numbered callouts for cable, bracket, and catch hooks; removal steps listed below.
