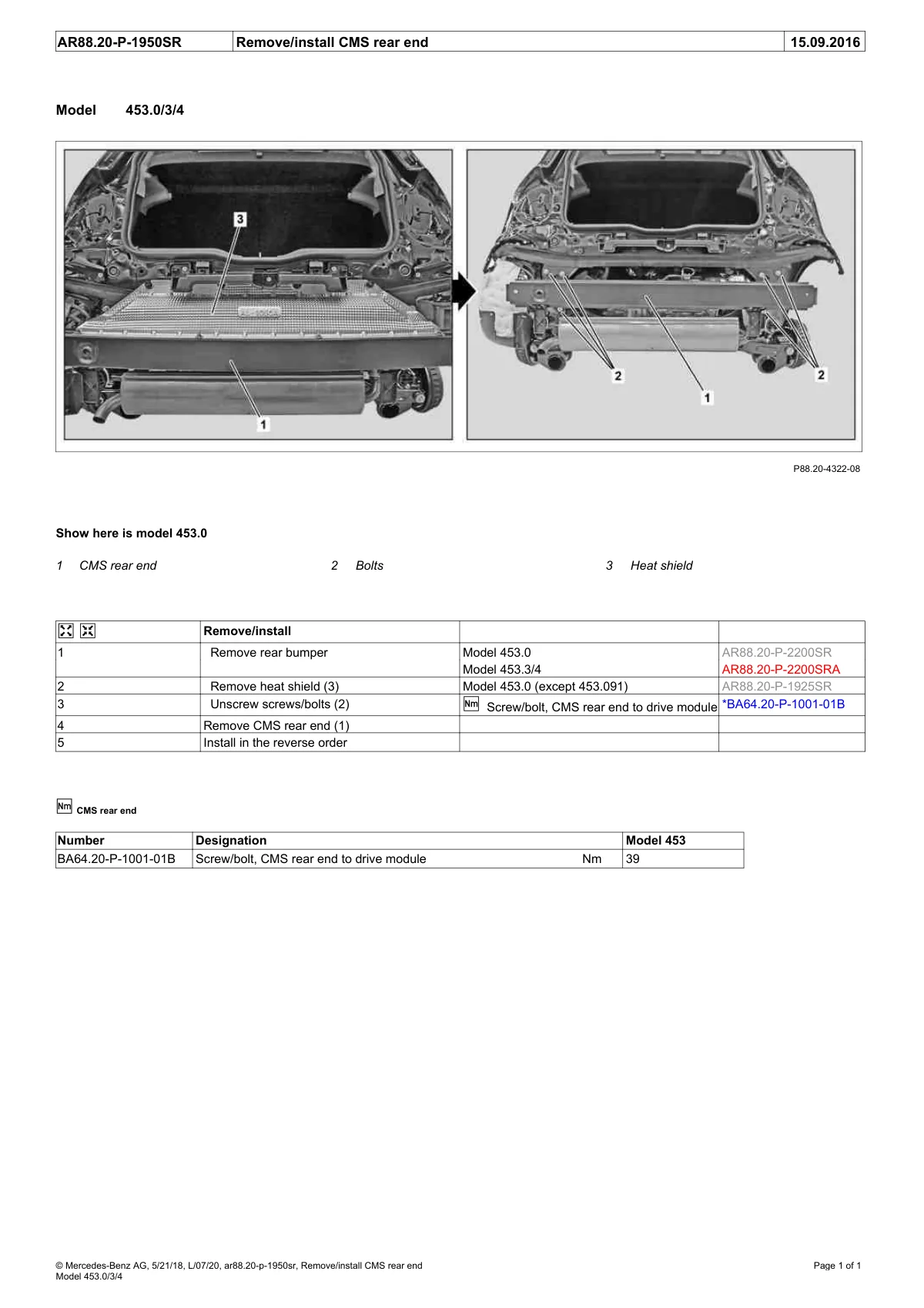

CMS rear end removal/installation procedure for chassis 453.0/3/4 with callouts for rear end, bolts, and heat shield.

Two technical diagrams showing CMS rear end assembly removal steps with numbered callouts 1-3 and installation sequence table.

View full-size image ↗

See all Powertrain figures for the Fortwo / Forfour (453), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
