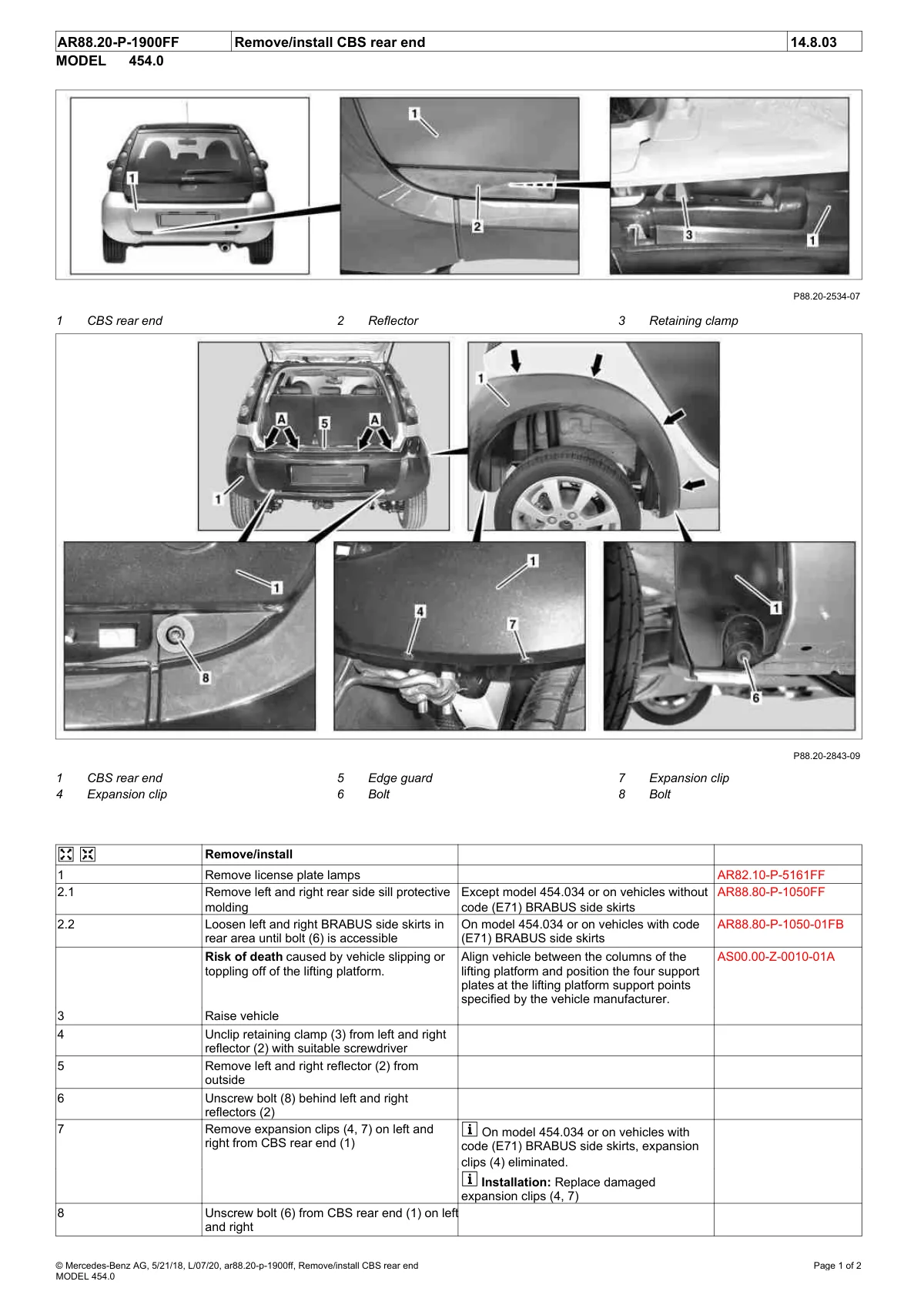

Remove/install CBS rear end on Smart Fortwo 454 with numbered callouts showing reflector, retaining clamp, edge guard, expansion clips, and bolt locations.

Smart Fortwo 454 rear bumper CBS assembly disassembly diagram with 8 numbered component callouts.
