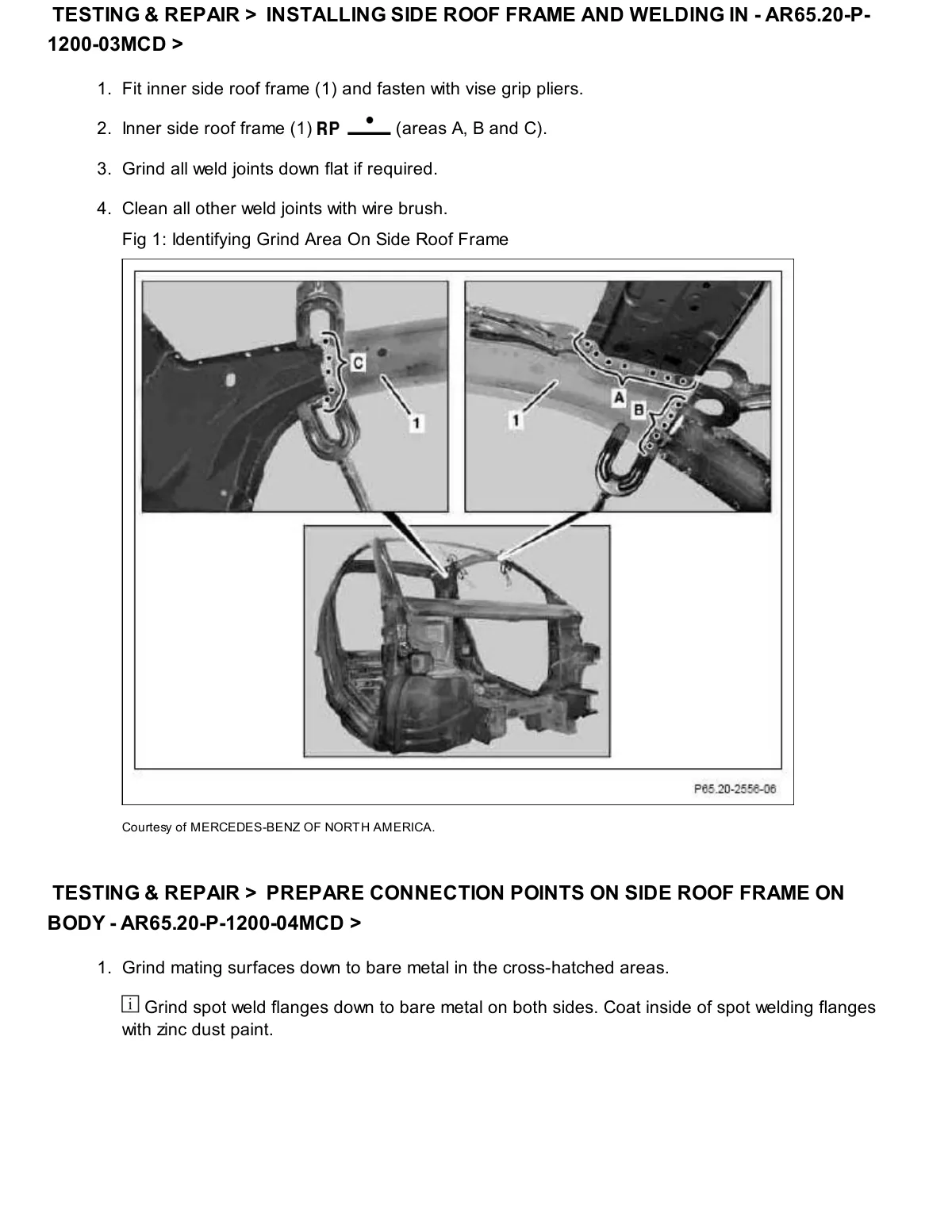

Side roof frame installation and weld joint preparation procedures with callout identification for grinding areas A, B, C on inner frame.

Technical diagrams showing side roof frame components and weld grinding locations with numbered callouts and reference areas.
