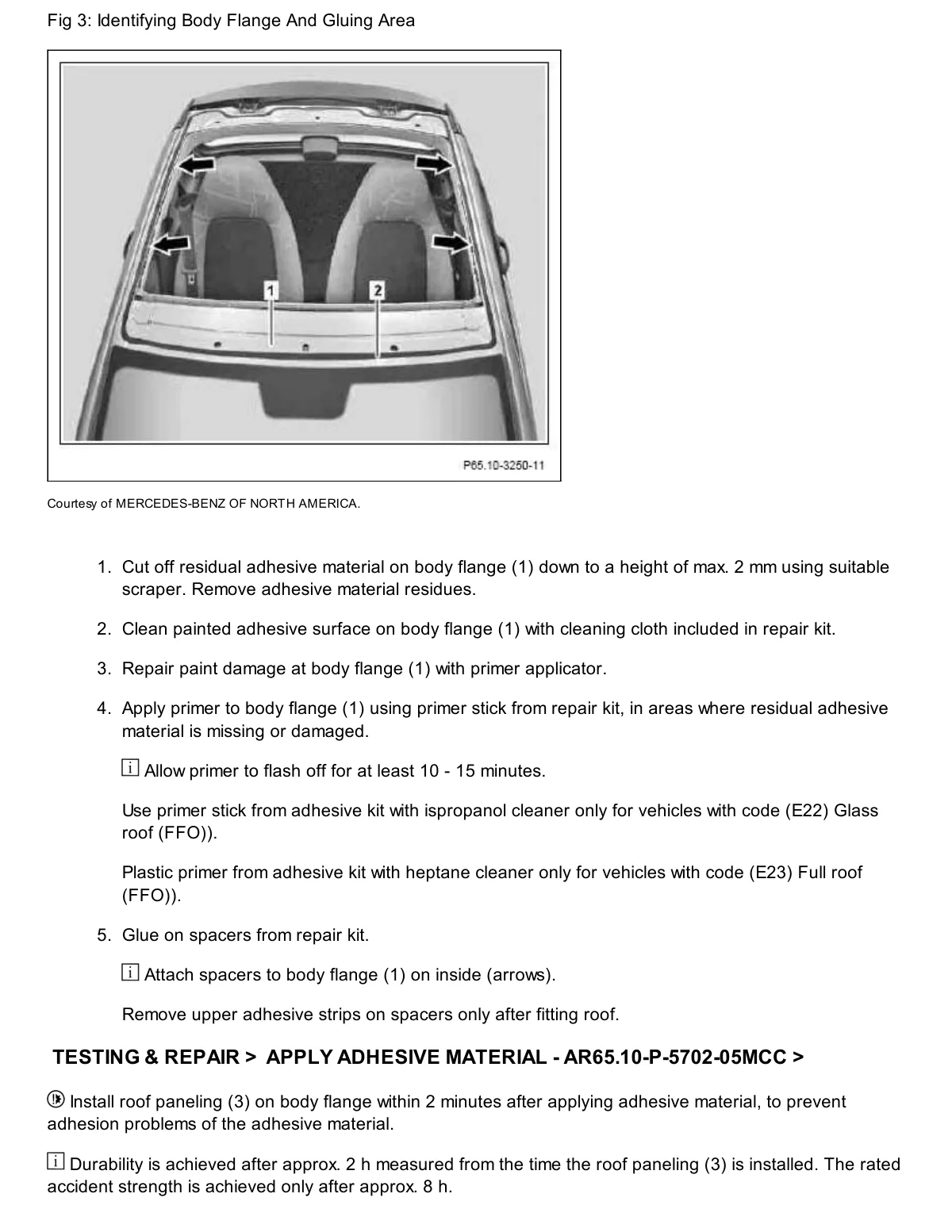

Body flange and gluing area preparation for roof panel installation on Smart cabrio (450/451/452/454).

Overhead view of Smart convertible roof opening showing numbered callouts for body flange and adhesive application points.

View full-size image ↗

See all Body & Interior figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
