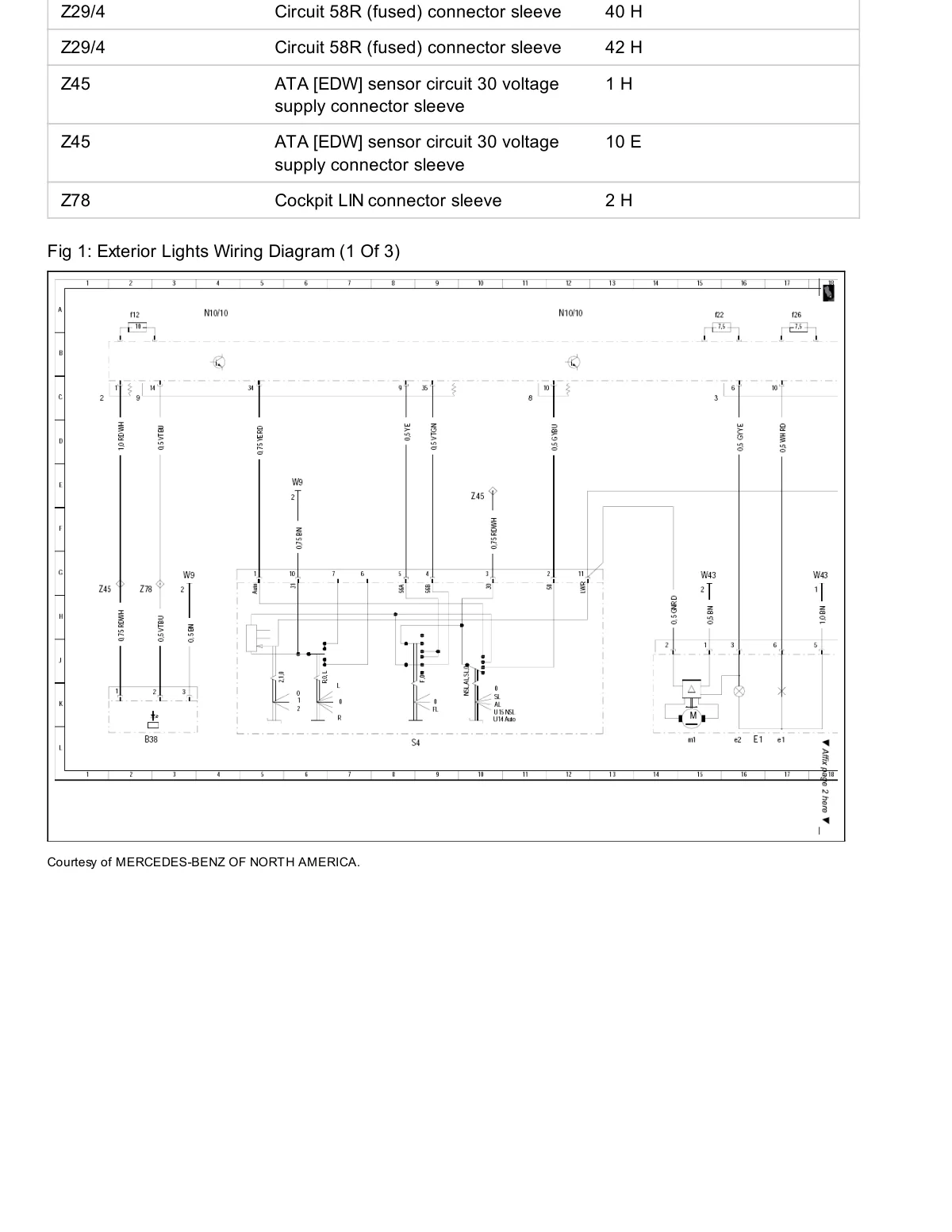

Exterior lights wiring diagram part 1 of 3 showing circuits 58R connector sleeves, ATA sensor supply, and cockpit LIN connector routing.

Wiring schematic for exterior lighting circuits with numbered connector locations and circuit designations.
