Exterior lights wiring diagram showing headlights, fog lights, and tail light circuits with relays and switches.

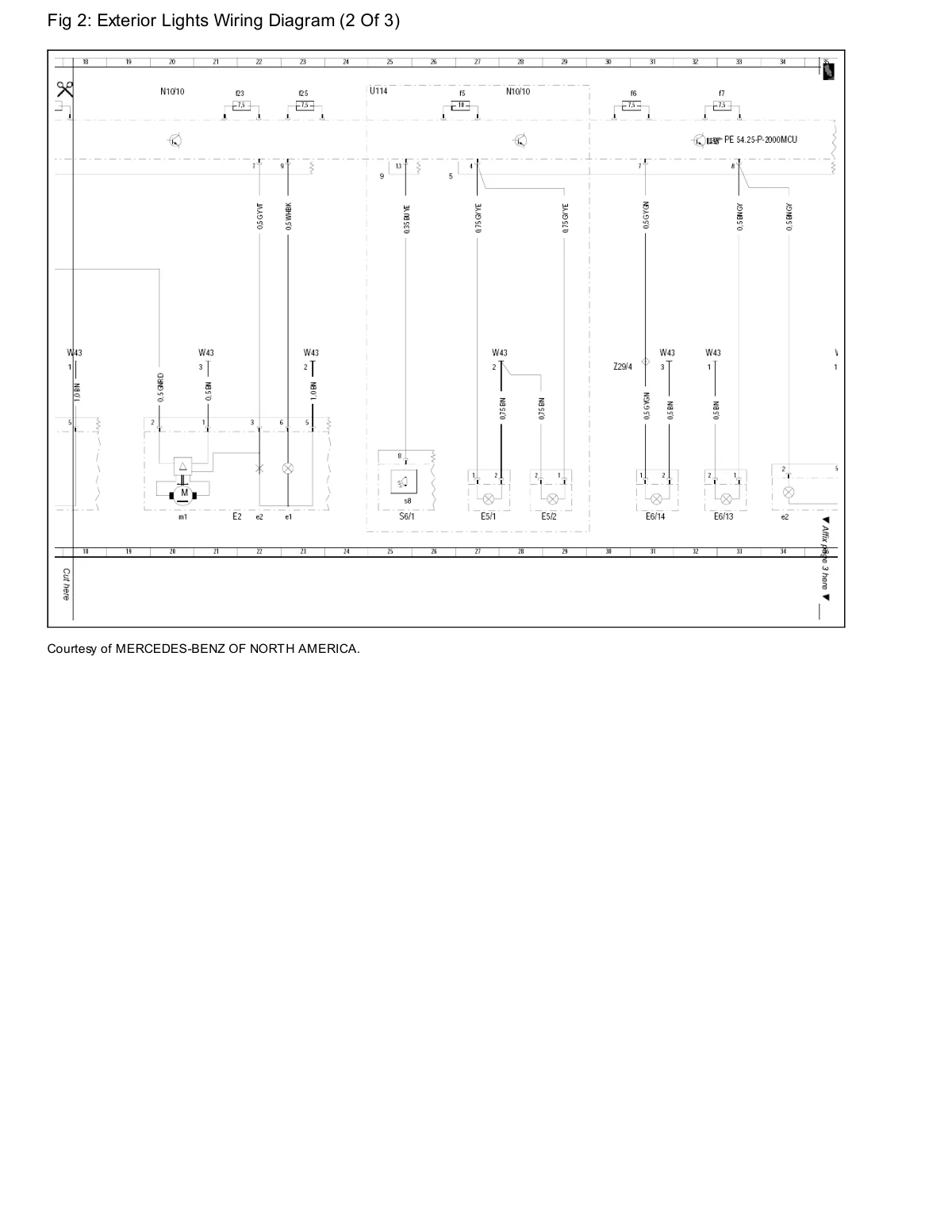

Wiring schematic for exterior lighting system with multiple relays, fuses, and connectors labeled.

View full-size image ↗

See all Electrical figures for the Fortwo (450), or browse the full figure library. Part numbers and callouts are community-sourced and cross-referenced against the manuals — confirm with your VIN before ordering.
