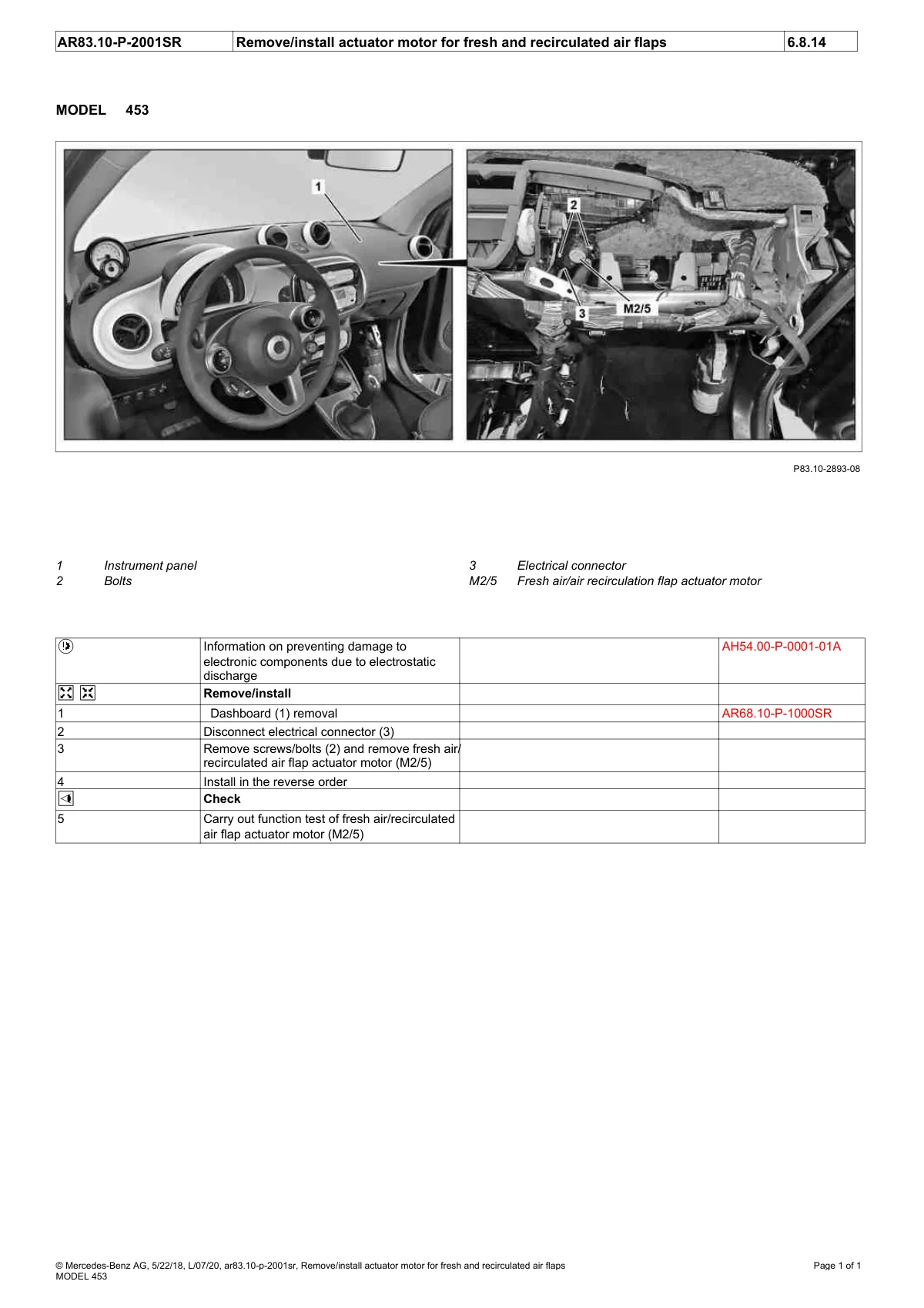

Model 453 fresh and recirculated air flap actuator motor removal and installation procedure with dashboard and engine bay locations.

Service procedure showing dashboard removal and engine bay actuator motor location for smart 453 fortwo.
