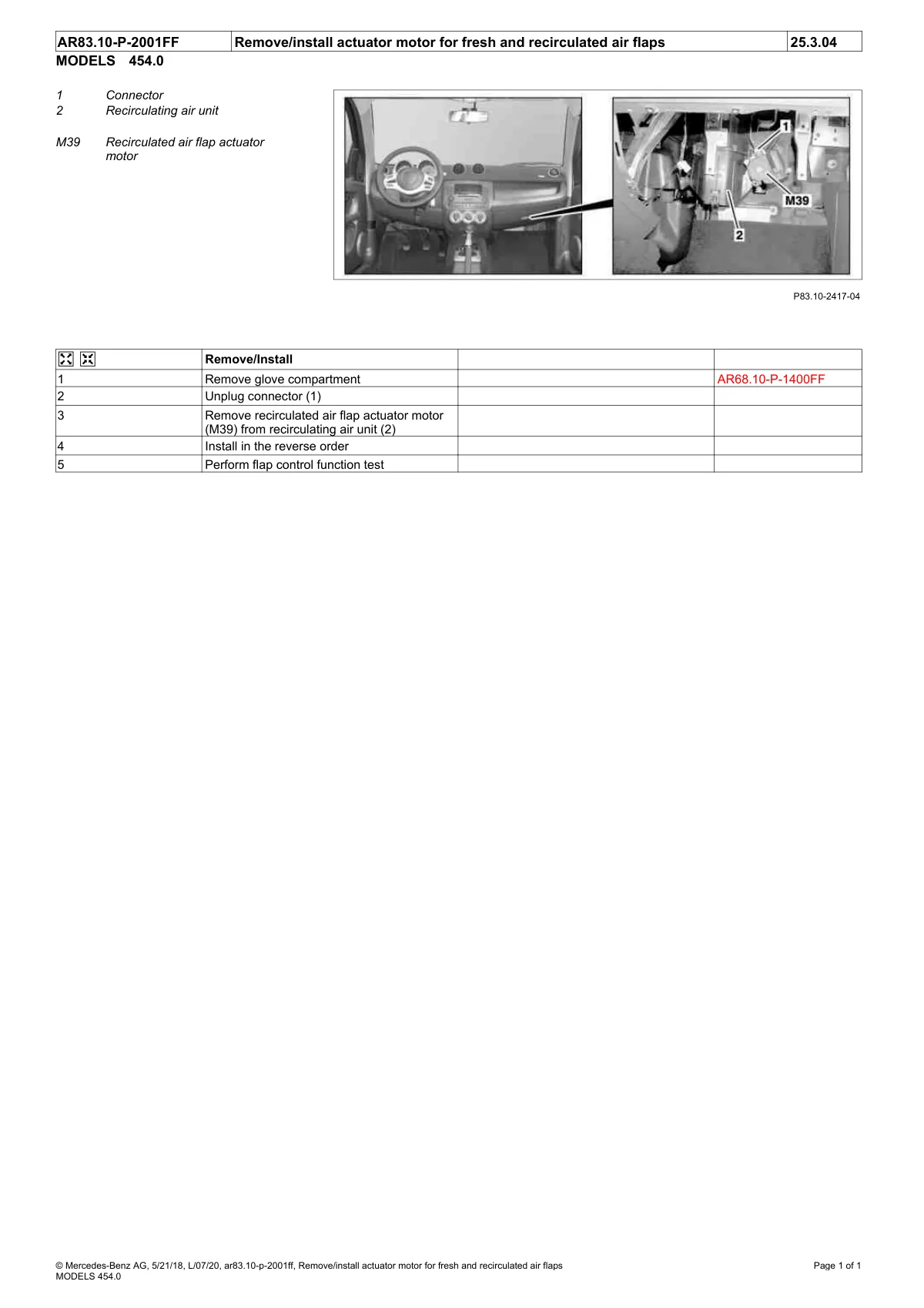

Remove/install actuator motor M39 for fresh and recirculated air flaps, chassis 454 HVAC system service procedure.

Dashboard and engine bay photos showing recirculating air flap actuator motor location and removal steps
