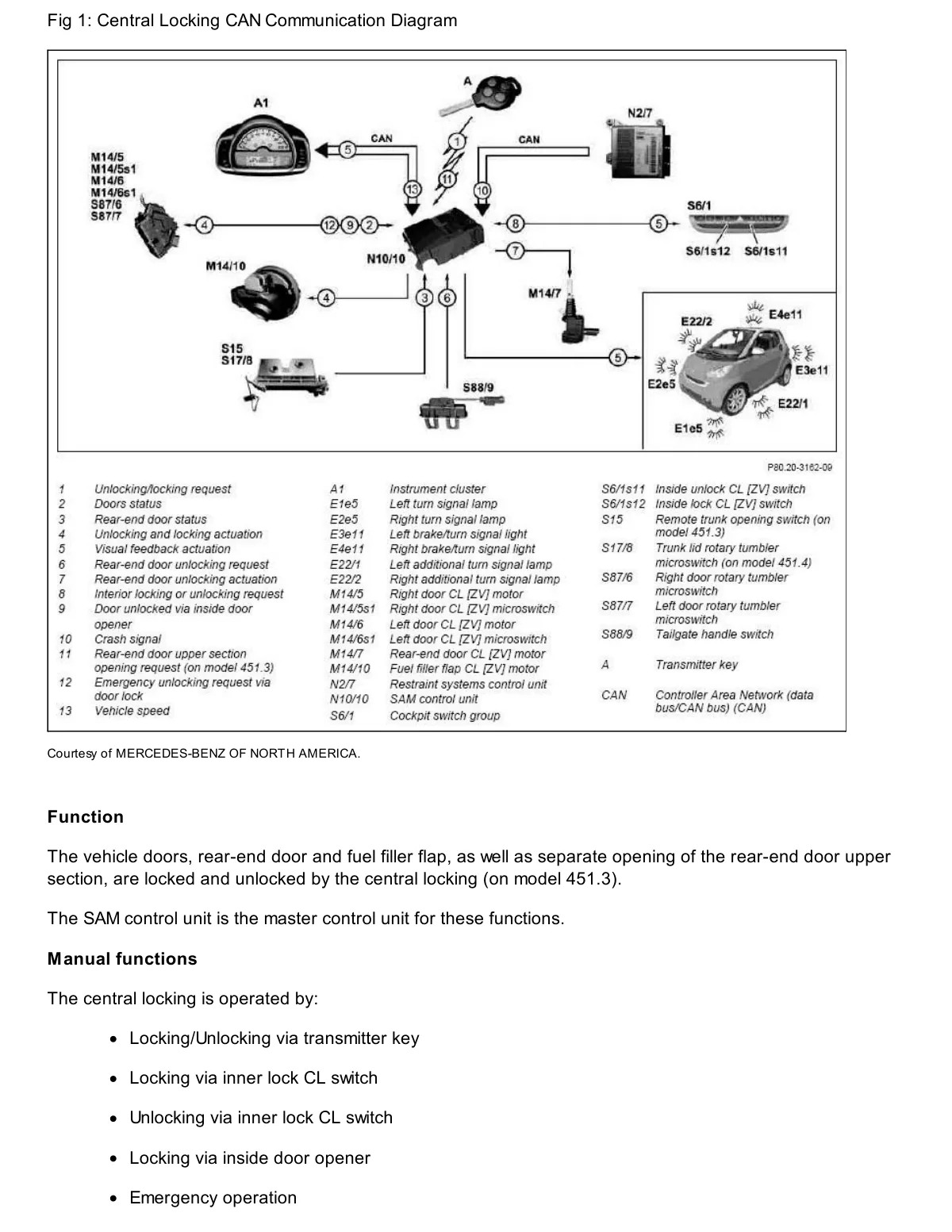

Central locking CAN communication diagram showing door locks, SAM module, and transmitter key signals for Smart fortwo 451.3.

Wiring schematic of central locking system with CAN bus connections and component callouts.
