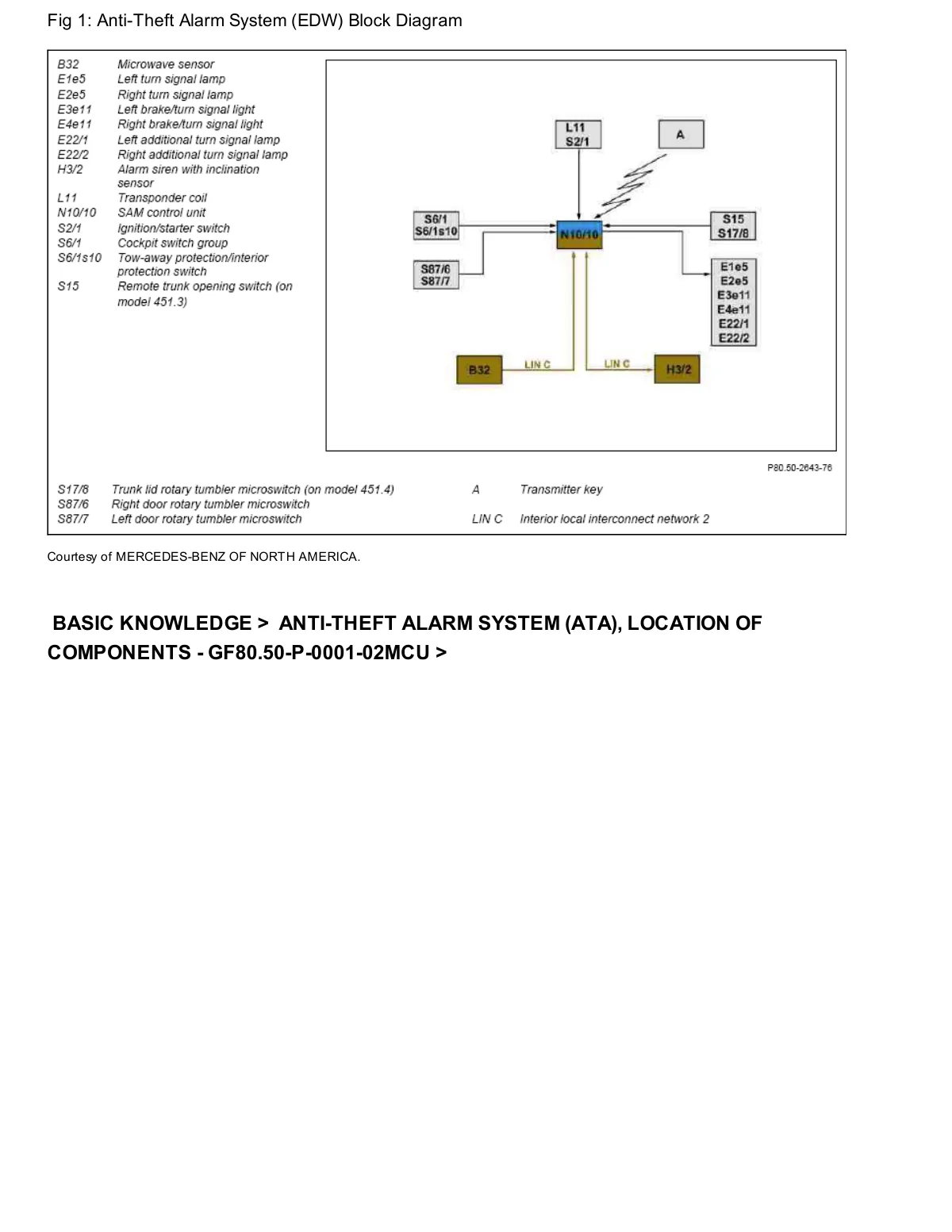

Anti-theft alarm system EDW block diagram showing SAM control unit, microwave sensor, and signal lamp connections.

Wiring schematic of anti-theft alarm system with labeled components and LIN C network connections.
