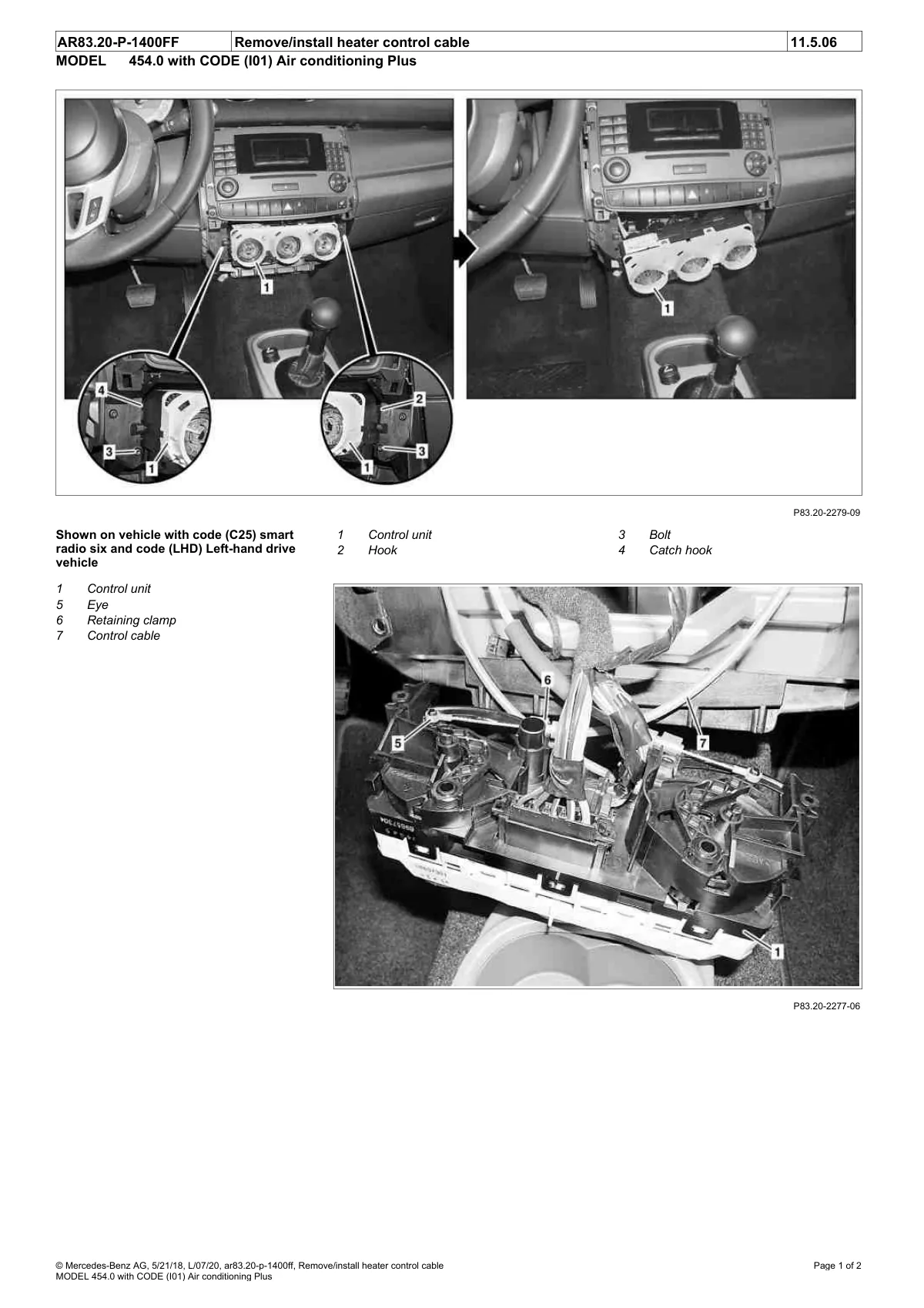

Remove/install heater control cable on chassis 454 with air conditioning plus, showing dashboard controls and under-dash routing.

Dashboard heater control unit and cable routing diagram for Smart Fortwo 454 with climate control.
