Heat exchanger removal/installation procedure for Smart Fortwo 453 with automatic air conditioning and center console drawer.

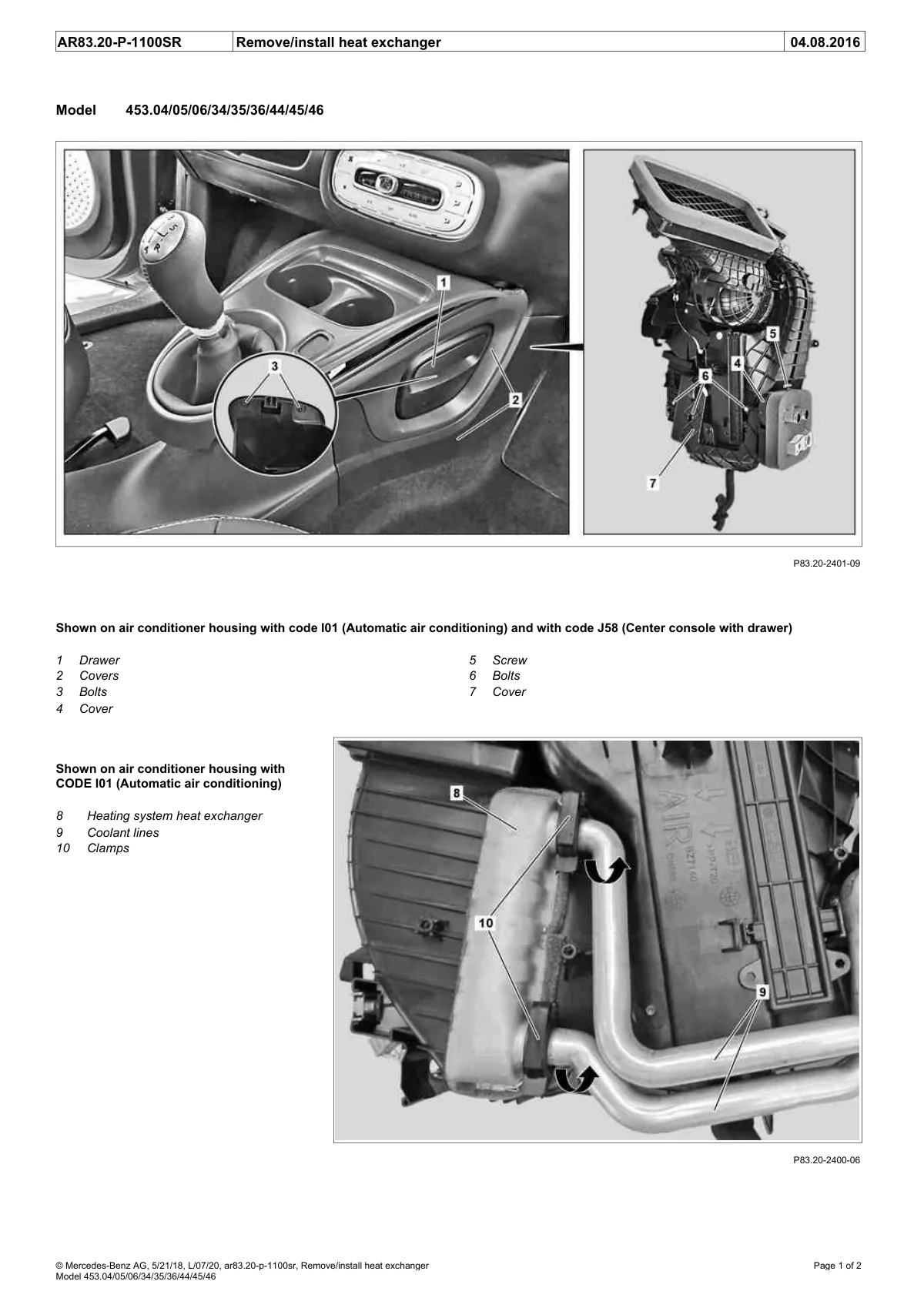

Service manual page showing heat exchanger location, console drawer, and component callouts for Smart Fortwo 453.
